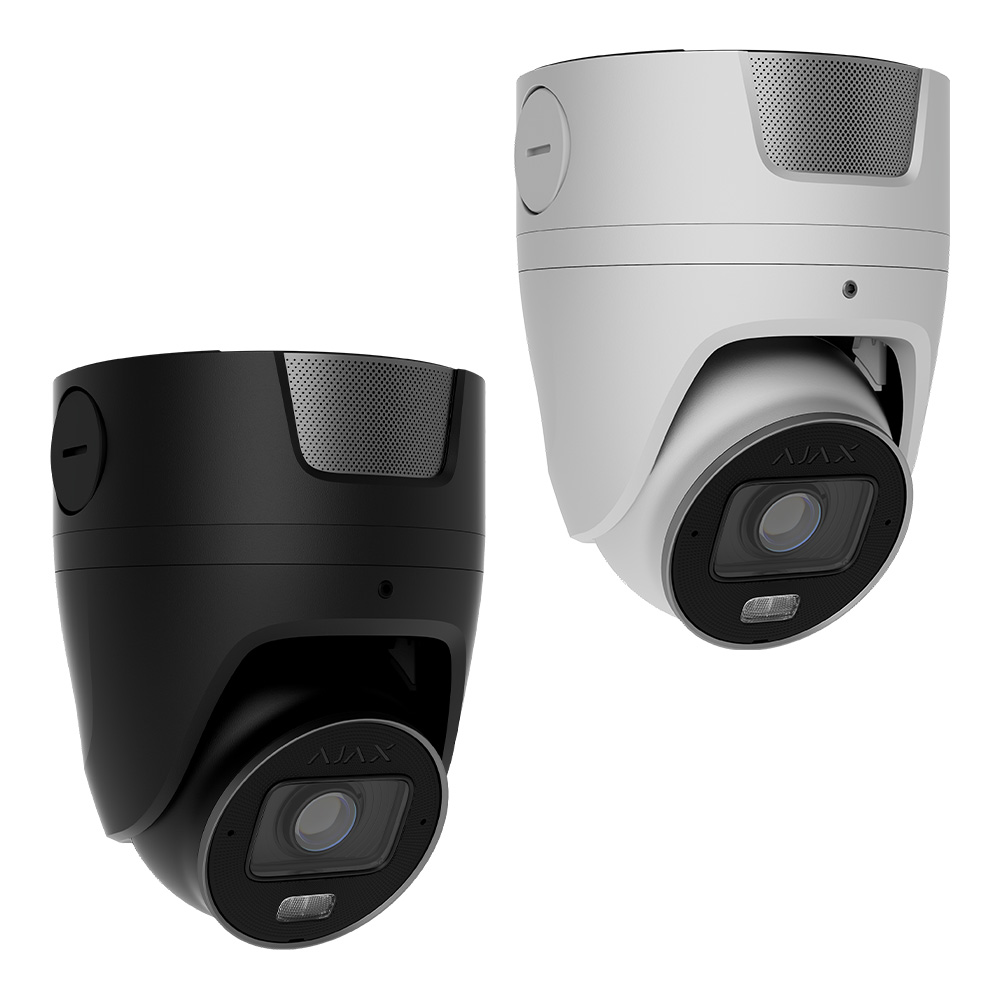

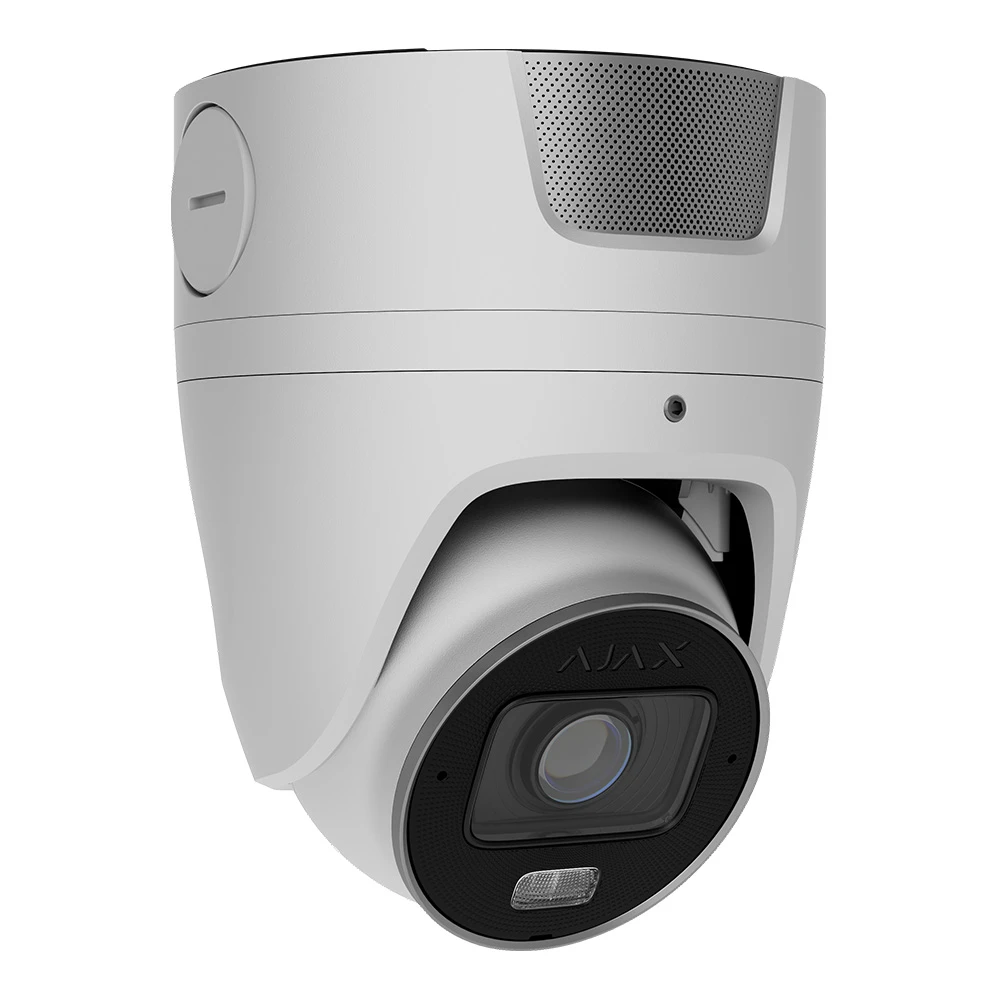

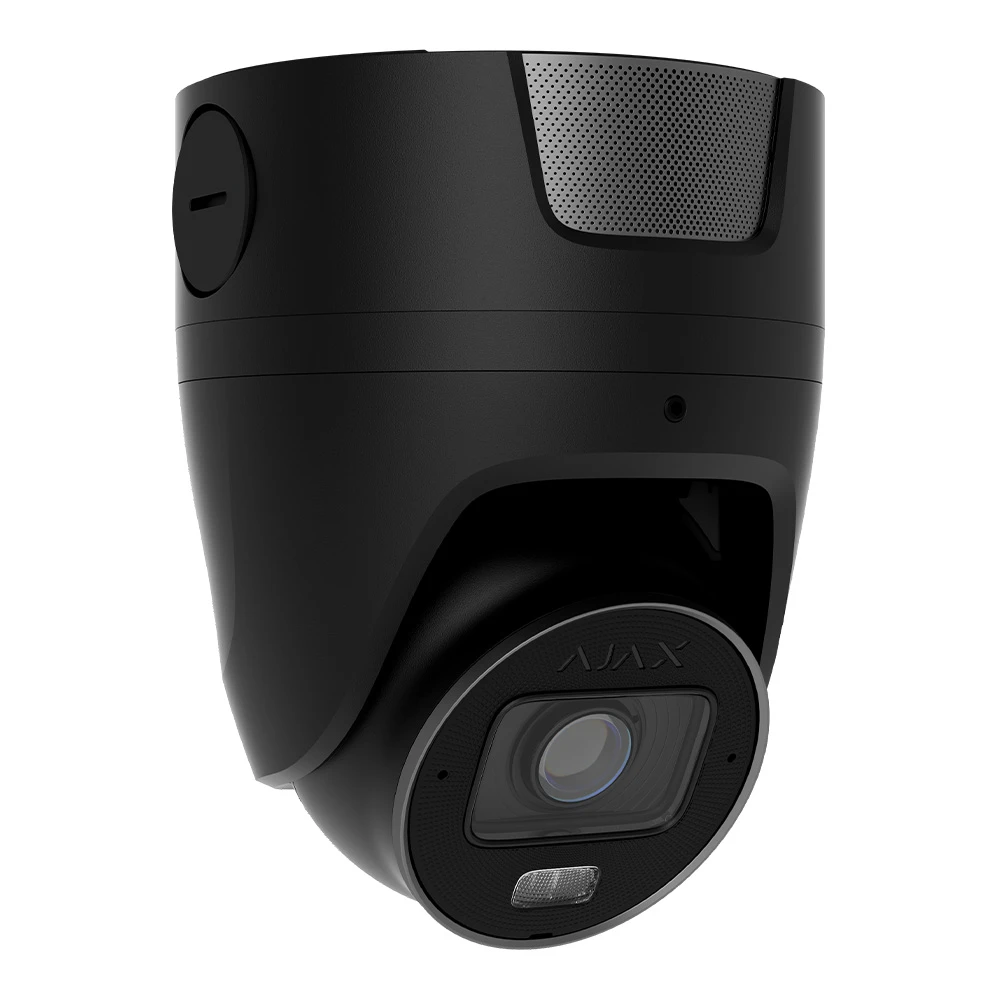

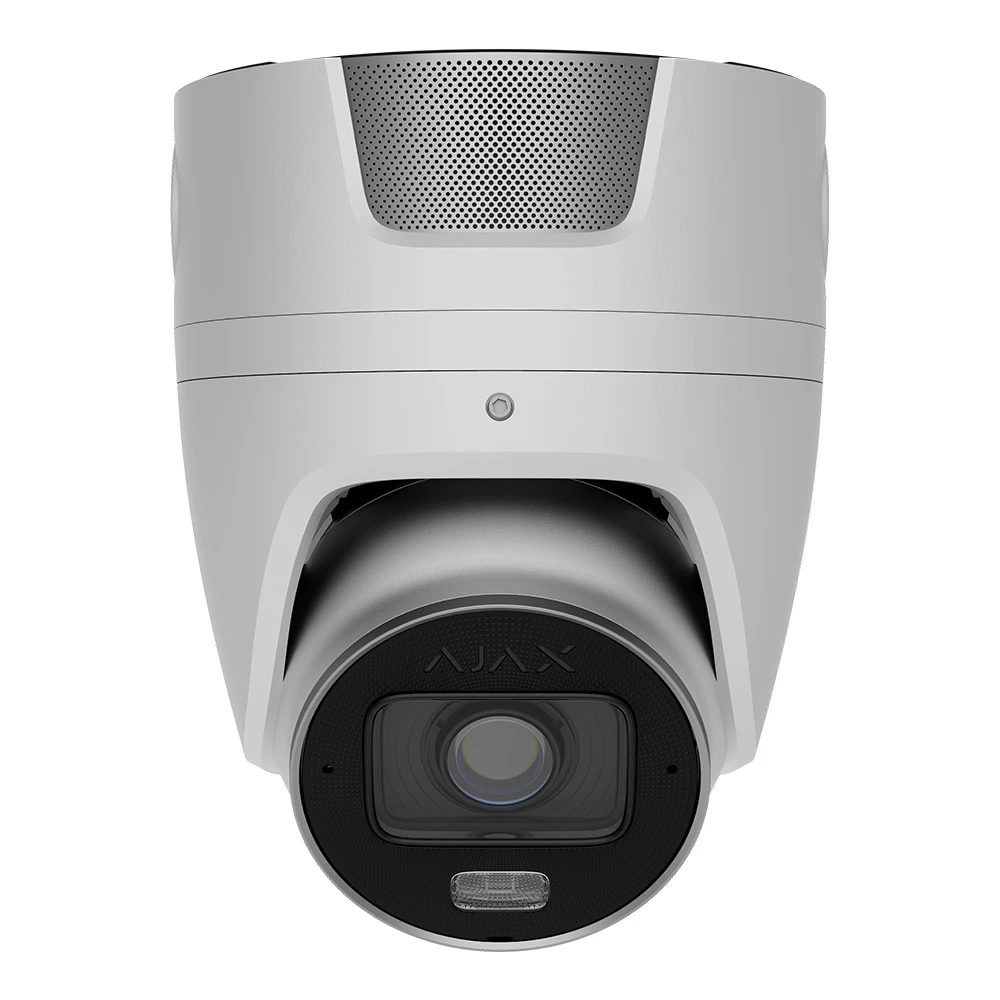

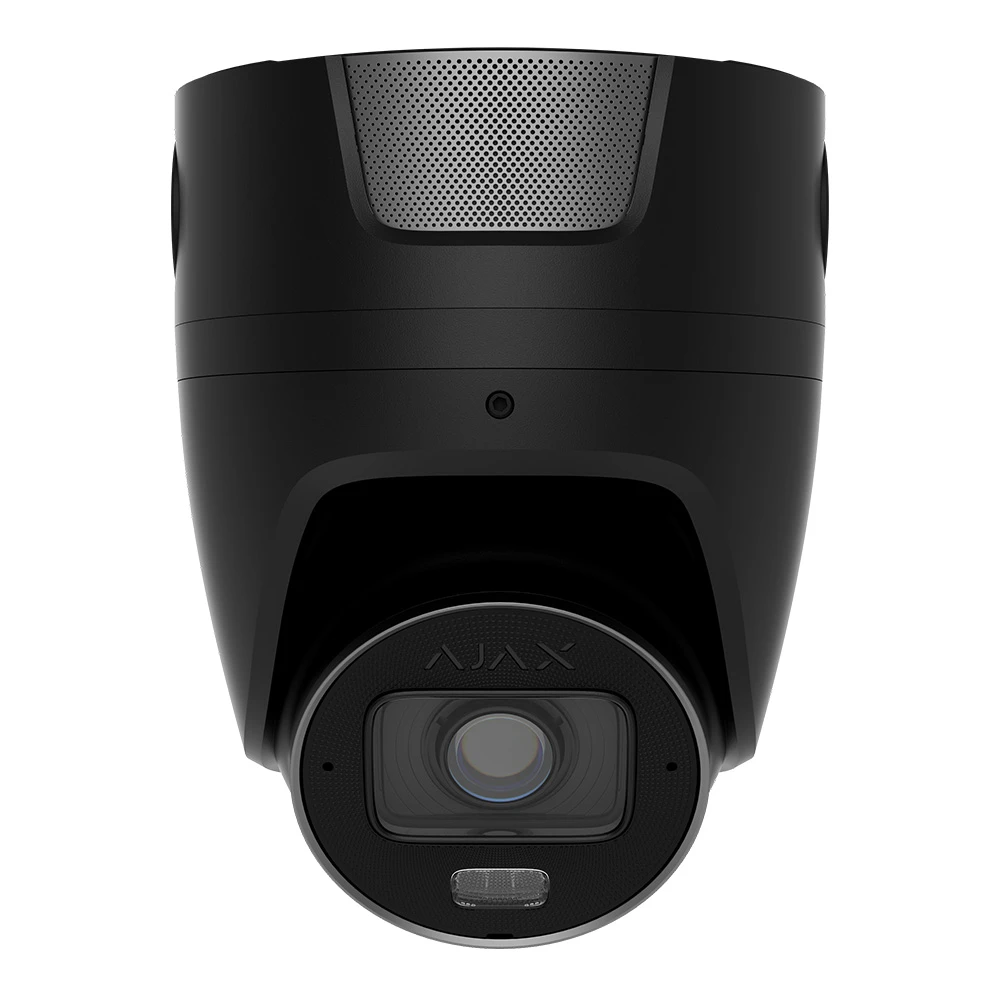

The Ajax Superior TurretCam HLVF is a wired, AI-powered IP CCTV camera designed for indoor and outdoor video surveillance.
Available in 4MP and 8MP versions, it combines a motorised varifocal P-Iris lens, intelligent object recognition, hybrid illumination and True WDR technology to deliver detailed video footage across a range of lighting conditions.
Featuring a 2.8–12mm motorised varifocal lens with autofocus, the camera allows users to adjust the field of view remotely through Ajax apps. The P-Iris lens system automatically balances contrast and sharpness, helping maintain image clarity when monitoring wide areas or focusing on specific details.
Hybrid illumination combines infrared and white light to support colour recording after dark. When an object is detected, the camera automatically switches from infrared to white light to capture additional detail. Infrared illumination provides coverage up to 60 metres, while white light illumination reaches up to 40 metres.
Built-in AI recognition distinguishes between people, pets and vehicles, supporting more targeted motion detection and video alarm verification. Two integrated microphones with noise suppression and echo cancellation, together with a built-in speaker, enable two-way audio communication.
The camera incorporates Ajax's proprietary JetSparrow technology for secure video streaming and convenient archive navigation. ONVIF Profile G and S conformity and RTSP support provide integration options with compatible third-party video management systems.
Designed for demanding environments, the IP67-rated enclosure with IK10 impact protection provides resistance to dust, water and mechanical impacts. Power can be supplied through PoE or a 12V DC connection, while local microSD storage allows the camera to operate without an Ajax NVR.
Available in 4MP (2688 × 1520) and 8MP (3840 × 2160) versions
Motorised 2.8–12mm varifocal P-Iris lens with autofocus
AI-powered recognition of people, pets and vehicles
Hybrid illumination with infrared coverage up to 60m and white light coverage up to 40m
True WDR technology for improved image quality in challenging lighting conditions
Two built-in microphones and speaker for two-way audio communication
JetSparrow technology for secure video streaming and archive navigation
ONVIF Profile G and S conformity with RTSP support
IP67 and IK10 protection for indoor and outdoor installation
Specification | Details |
|---|---|
Available Versions | 4MP and 8MP |
Resolution (4MP Version) | Up to 2688 × 1520 pixels at 25fps (3K UHD) |
Resolution (8MP Version) | Up to 3840 × 2160 pixels at 25fps (4K UHD) |
Image Sensor | CMOS |
Lens Type | P-Iris |
Lens Focal Length | 2.8–12.0mm |
Focal Length Adjustment | Motorised with Autofocus |
Focus Control | Manual Focus Configurable via Ajax Apps |
Horizontal Field of View | 47°–110° |
Vertical Field of View | 26°–56° |
Diagonal Field of View | 54°–135° |
Image Processing | True WDR (Hardware and Software) |
Video Compression | H.265, H.264 |
Bitrate | 100Mbps, Full-Duplex |
Simultaneous Live View | Up to 5 Channels |
Video Streaming | JetSparrow, RTSP |
ONVIF Conformity | Profile G and S |
AI Object Recognition | People, Pets, Vehicles |
Motion Detection | Built-in Software |
Alarm Verification | Motion Detection, AI-Powered Recognition, Automation Scenarios |
Infrared Illumination Range | Up to 60m (196ft) |
White Light Illumination Range | Up to 40m (131ft) |
Built-in Microphones | 2 |
Built-in Speaker | 1 |
Audio Processing | Noise Suppression and Echo Cancellation |
Audio Ports | 1 Input, 1 Output |
Alarm Ports | 1 Input, 1 Output |
Alarm IN Maximum Voltage | 5V DC |
Alarm OUT Operating Range | 48V DC, 300mA |
Storage | Ajax NVR, microSD Card |
Maximum microSD Capacity | Up to 512GB |
Power Supply | 12V DC ±20%, 1A |
Ethernet Connection | RJ-45, 10/100Mbps |
Power over Ethernet | IEEE 802.3at/af |
Power Consumption | Up to 12W |
Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
Operating Humidity | Up to 90% |
Dimensions | 136 × 162 × 136mm (5.35 × 6.38 × 5.35in) |
Weight | 1,300g (2.866lb) |
Colour Options | Black, White |
Ingress Protection Rating | IP67 |
Impact Protection Rating | IK10 |
Compliance | CE, RoHS, NDAA |
Camera Authentication | Mutual TLS (mTLS) Handshake |
Video Stream Encryption | TLS |
Account Security | Passcodes, Biometrics, Two-Factor Authentication |
Secure Video Export | Digital Signature Verification |
System Configuration | Ajax Apps |
Camera Synchronisation | Security System Modes |
Detection Zone Configuration | Ajax Mobile and Desktop Apps |
System Health Monitoring | Real-Time Monitoring with Automatic State Checks |
Supplied Accessories | Installation Template, Installation Kit, Quick Start Guide |
