Code: FDS002/625
Code: FDS002/625

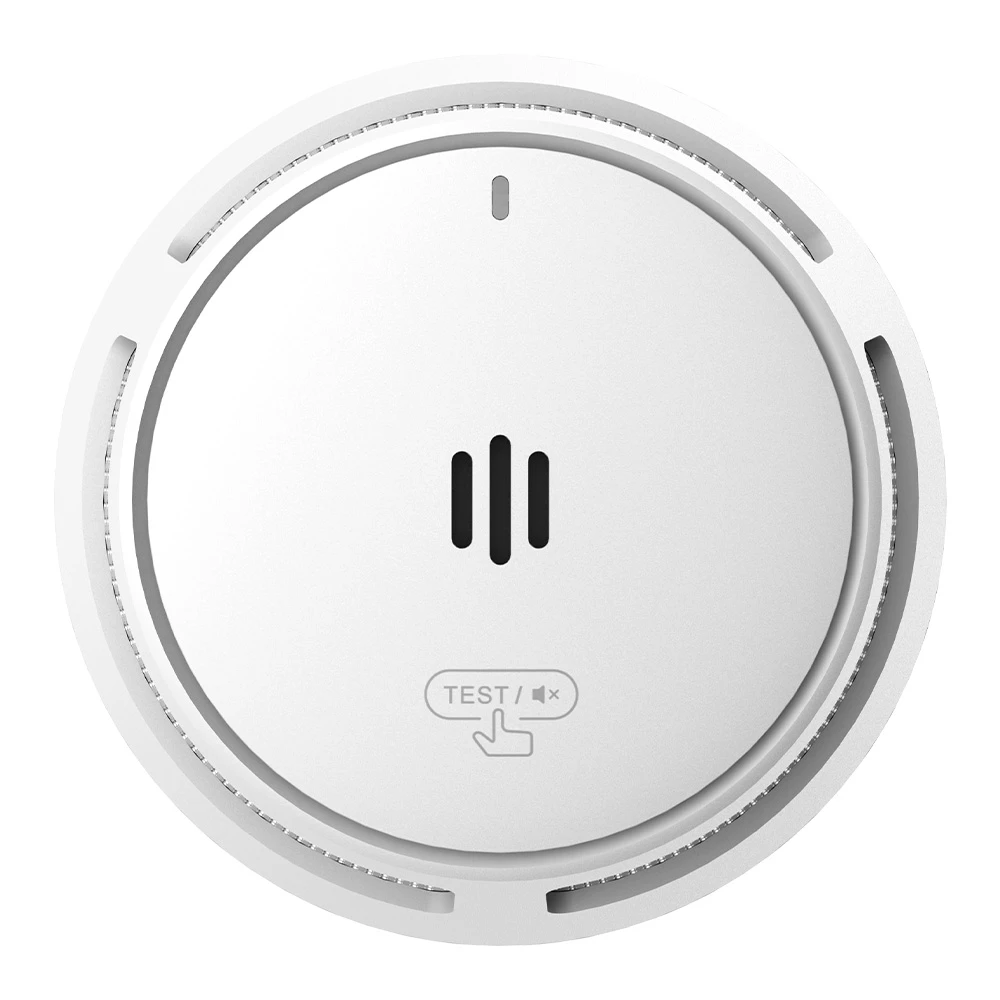

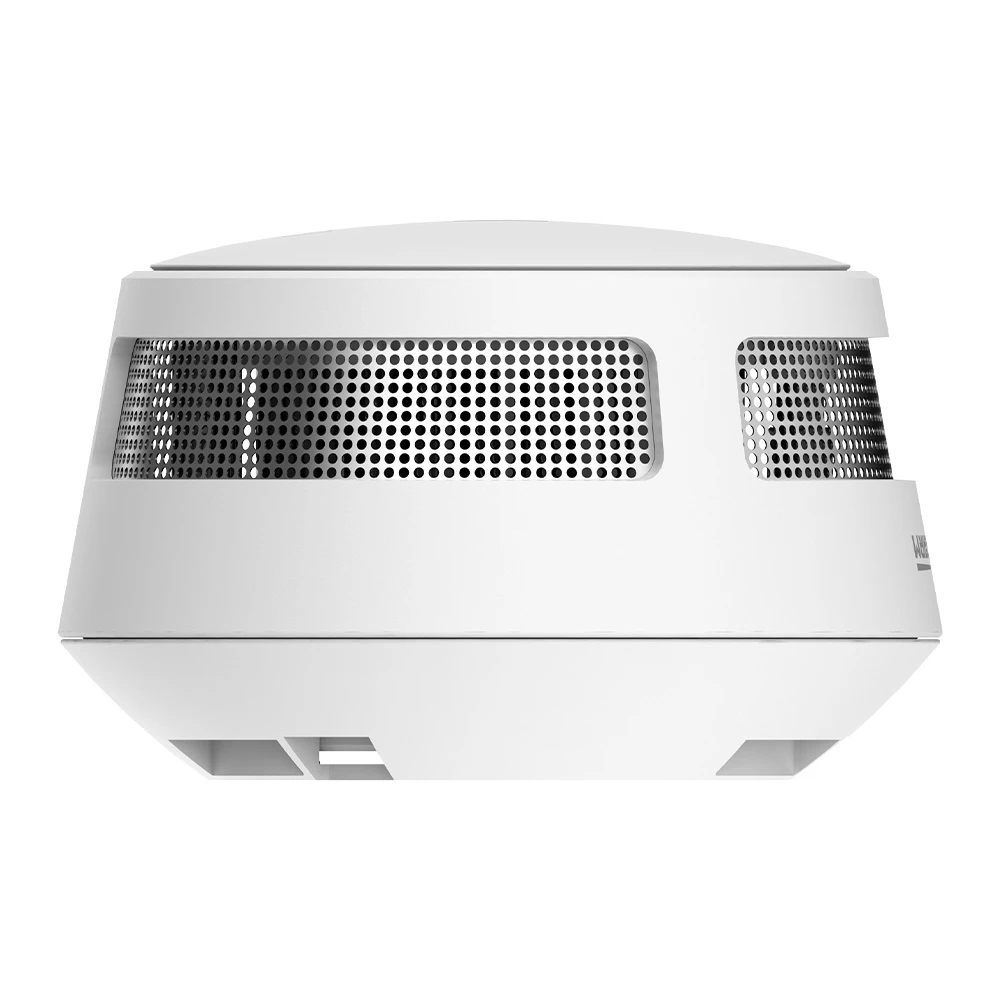

The WisuAlarm Wireless Interlinked Battery Smoke Alarm is powered by a sealed 10-year lithium battery and provides reliable, long-term protection without the need for wiring.
It wirelessly interlinks with up to 24 WisuAlarm devices, ensuring a loud 85 dB alarm sounds throughout the property when smoke is detected.
Using advanced split-spectrum sensor technology, the alarm responds quickly to real fires while significantly reducing false alarms.
This makes it well suited to domestic homes, holiday lets and rental properties, where nuisance alarms from cooking or shower steam can be a common issue.
When one alarm activates, all interlinked units sound together, ensuring occupants are alerted no matter where they are in the property.
The alarm includes a combined test-and-hush button and an audible low-battery warning for added peace of mind.
A unique remote hush feature allows the alarm to be silenced using any standard infrared TV remote.
This makes it easy to mute the alarm during testing or false alarms without the need for ladders.
For additional convenience, the alarm can be paired with an optional Internet Gateway to provide instant notifications via the free mobile app.
This allows you to monitor alarms remotely and stay informed even when you are away from the property.
DHI-HY-SA40A-R8B
10-year sealed lithium battery for maintenance-free safety
Wireless interconnect with up to 24 compatible devices
Split-spectrum smoke sensor for faster, more accurate detection
Grade F1 compliant for domestic installation
High-volume 85 dB(A) sound output
Combined test & hush button
Remote hush function with any IR remote control
Low battery warning signal
Easy surface-mount installation
Category | Specification |
|---|---|
Model | DHI-HY-SA40A-R8 |
Working Principle | Photoelectric (split-spectrum) |
Collection Type | Smoke |
Sampling Period | 9 seconds |
Pre-set Alarm Value | 0.2 dB/m – 0.3 dB/m |
Alarm Volume | 85 dB(A) at 3m |
Alarm Mode | Visual and audible |
Silence Function | Yes |
Silence Duration | 9 minutes |
Infrared Silence | Yes |
Operating Frequency | 868 MHz |
Radio Range | Up to 1000m (open air) |
Max Interconnected Units | 24 |
Coverage Area | 20–40m² (ceiling height <8m) |
Battery Life | 10 years |
Power Source | 3V CR123A lithium (sealed) |
Monitoring Current | ≤15µA (average) |
Alarm Current | ≤35mA (average) |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤95% RH (non-condensing) |
Dimensions | Ø81.5mm × 51.6mm |
Weight | 110g |
Installation | Ceiling mount |
Casing | PC+ABS |
Colour | White |
Certifications | TÜV & CE |
Compliance Standards | EN 14604:2005+AC:2008, EN 62479:2010, EN 50130-4:2011+A1, EN 301489-1 V2.2.3:2019, EN 301489-3 V2.1.1:2019 |
The WisuAlarm Wireless Interlinked Battery Smoke Alarm is powered by a sealed 10-year lithium battery and provides reliable, long-term protection without the need for wiring.
It wirelessly interlinks with up to 24 WisuAlarm devices, ensuring a loud 85 dB alarm sounds throughout the property when smoke is detected.
Using advanced split-spectrum sensor technology, the alarm responds quickly to real fires while significantly reducing false alarms.
This makes it well suited to domestic homes, holiday lets and rental properties, where nuisance alarms from cooking or shower steam can be a common issue.
When one alarm activates, all interlinked units sound together, ensuring occupants are alerted no matter where they are in the property.
The alarm includes a combined test-and-hush button and an audible low-battery warning for added peace of mind.
A unique remote hush feature allows the alarm to be silenced using any standard infrared TV remote.
This makes it easy to mute the alarm during testing or false alarms without the need for ladders.
For additional convenience, the alarm can be paired with an optional Internet Gateway to provide instant notifications via the free mobile app.
This allows you to monitor alarms remotely and stay informed even when you are away from the property.
DHI-HY-SA40A-R8B
10-year sealed lithium battery for maintenance-free safety
Wireless interconnect with up to 24 compatible devices
Split-spectrum smoke sensor for faster, more accurate detection
Grade F1 compliant for domestic installation
High-volume 85 dB(A) sound output
Combined test & hush button
Remote hush function with any IR remote control
Low battery warning signal
Easy surface-mount installation
Category | Specification |
|---|---|
Model | DHI-HY-SA40A-R8 |
Working Principle | Photoelectric (split-spectrum) |
Collection Type | Smoke |
Sampling Period | 9 seconds |
Pre-set Alarm Value | 0.2 dB/m – 0.3 dB/m |
Alarm Volume | 85 dB(A) at 3m |
Alarm Mode | Visual and audible |
Silence Function | Yes |
Silence Duration | 9 minutes |
Infrared Silence | Yes |
Operating Frequency | 868 MHz |
Radio Range | Up to 1000m (open air) |
Max Interconnected Units | 24 |
Coverage Area | 20–40m² (ceiling height <8m) |
Battery Life | 10 years |
Power Source | 3V CR123A lithium (sealed) |
Monitoring Current | ≤15µA (average) |
Alarm Current | ≤35mA (average) |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤95% RH (non-condensing) |
Dimensions | Ø81.5mm × 51.6mm |
Weight | 110g |
Installation | Ceiling mount |
Casing | PC+ABS |
Colour | White |
Certifications | TÜV & CE |
Compliance Standards | EN 14604:2005+AC:2008, EN 62479:2010, EN 50130-4:2011+A1, EN 301489-1 V2.2.3:2019, EN 301489-3 V2.1.1:2019 |
