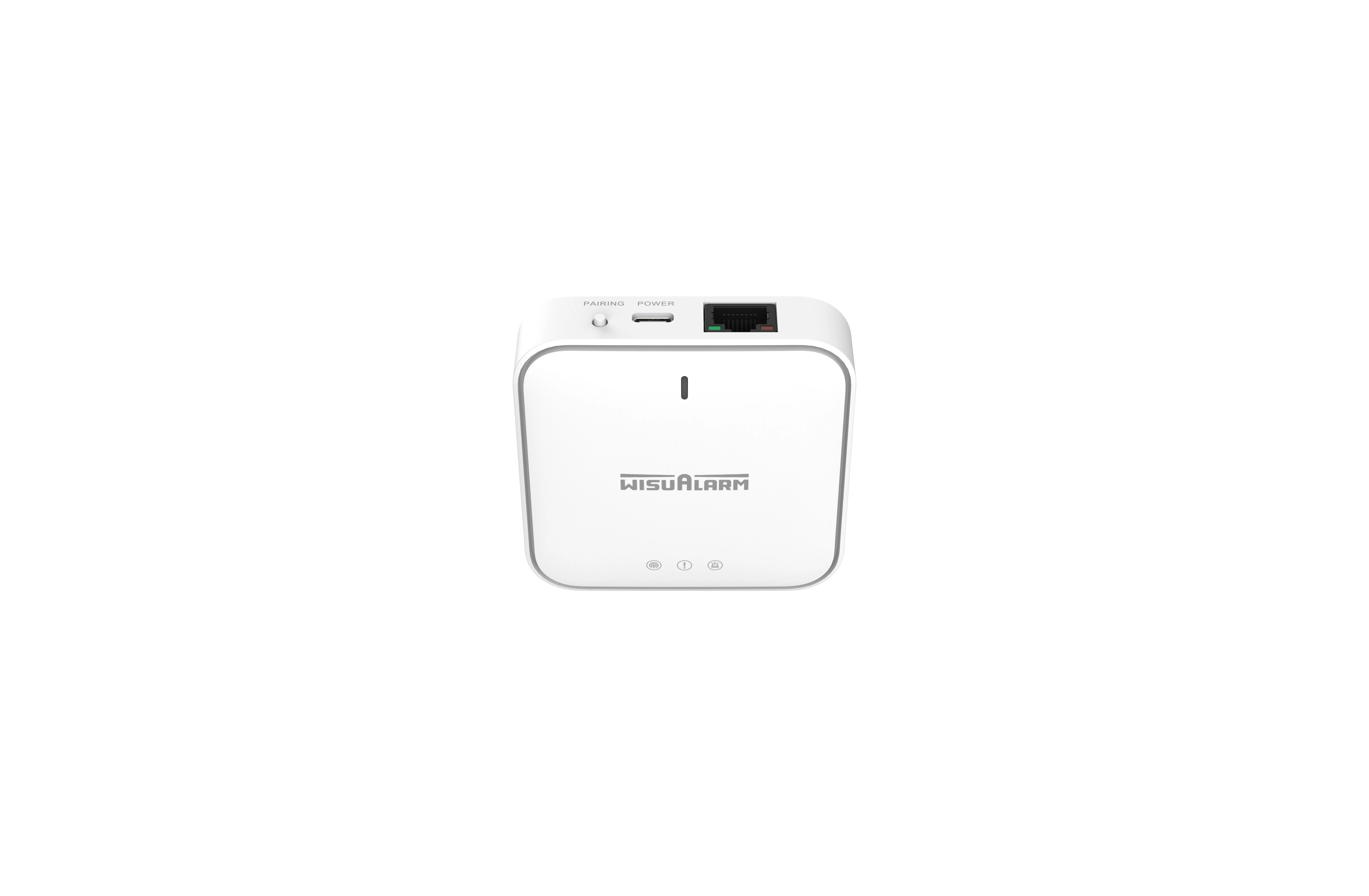

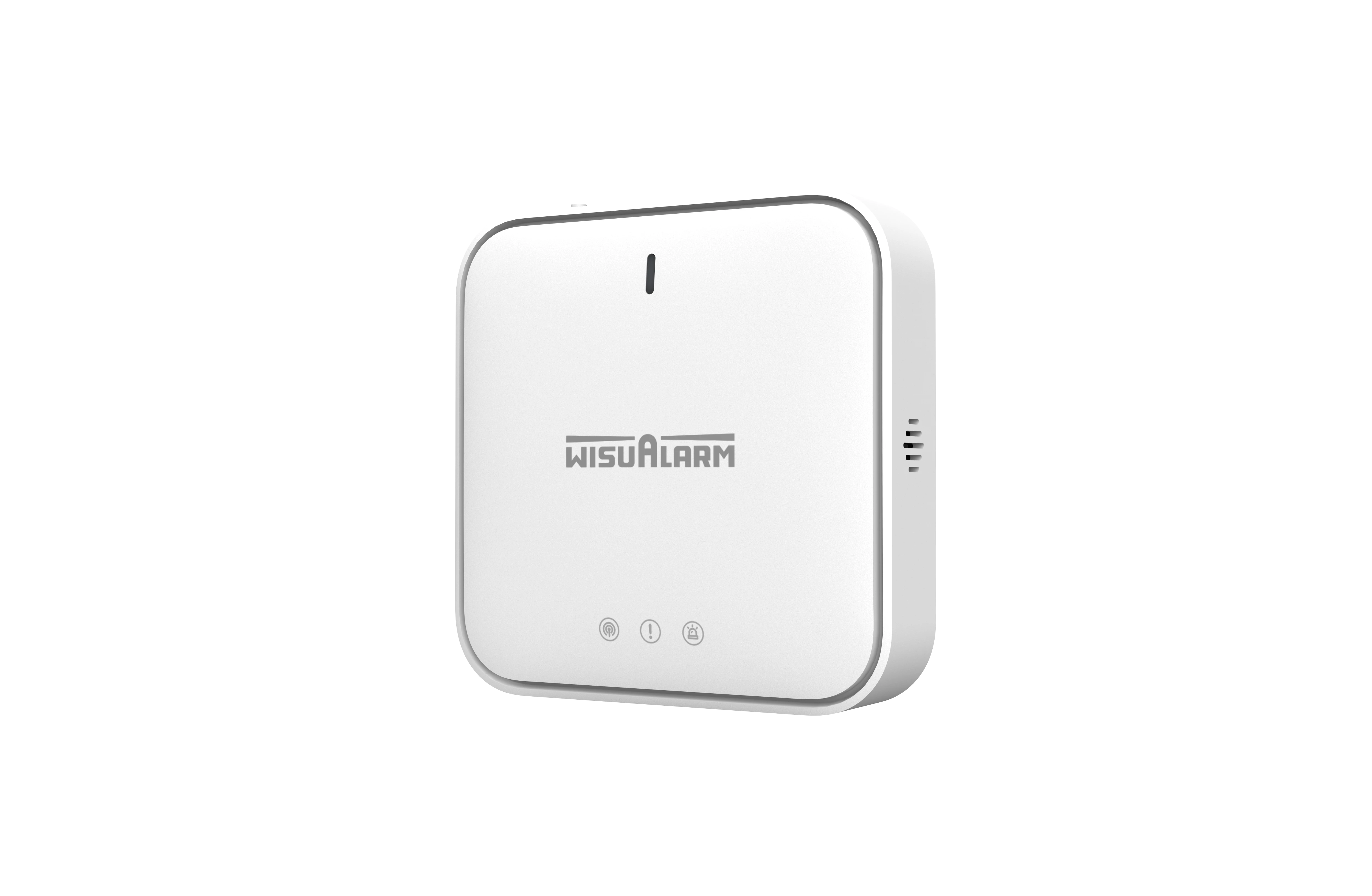

WisuAlarm Internet Gateway

Name: WisuAlarm Internet Gateway
Brand: Wisualarm
Price: 65.472 GBP
Availability: InStock

Code: FDS998/123

£65.47

INC VAT

Code: FDS998/123

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

Stay Connected, Stay Protected... Anywhere

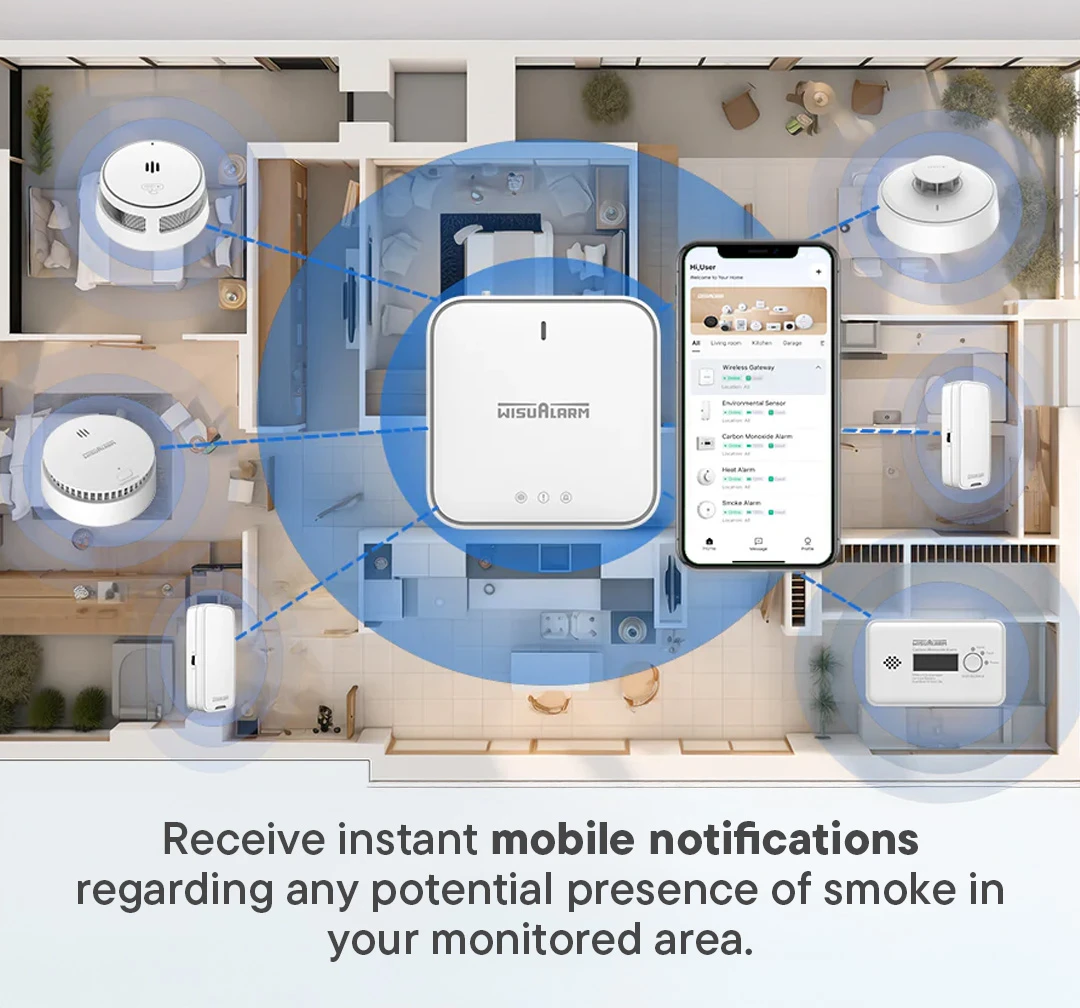

The WisuAlarm Wireless Gateway connects to your WisuAlarm Wireless Interconnected Alarms and links directly to the WisuAlarm app, giving you real-time visibility and control over your home’s fire safety.

Once paired, the gateway maintains a constant connection with your alarms.

If one detects smoke or heat, all connected alarms will sound simultaneously, and you’ll receive instant push notifications straight to your smartphone, no matter where you are.

With the WisuAlarm app, you can:

Monitor alarm status remotely
Receive urgent alerts during fire or emergency events
Stay informed at all times, even when away from home

Compatible with WisuAlarm mains powered alarms when fitted with the optional Wireless Module.

DHI-HY-GW01A
Compatible with WisuLink wireless interconnected products

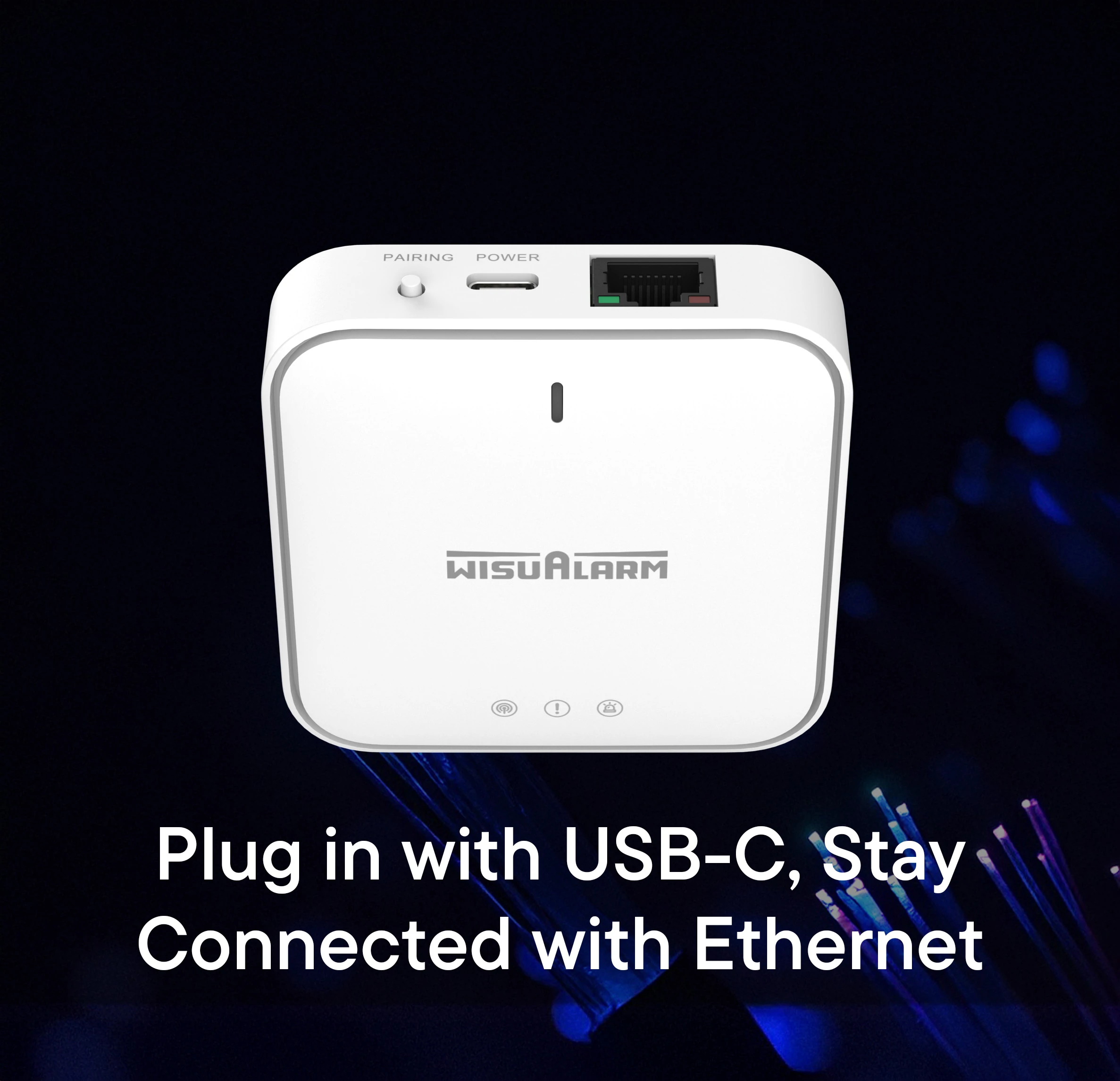

Dual communication based on Ethernet and Wi-Fi
Support wall mounting or free-standing on the table
Support OTA software upgrades
Support 4 LED indicators to illustrate the status of Power, Fault, Alarm and Internet Connectivity
Requires USB-C lead (not supplied)

General

Power Supply

5.0V/1.0A

Indicator Light

Alarm, fault and operation indicator

LED Instructions

Standby: Green indicator stays on continuously
Pairing: Green indicator flashes quickly (once per 0.5 seconds)
Unpairing: All indicators stay on continuously for 3 seconds
Alarm: Red indicator stays on continuously
Fault: Yellow indicator stays on continuously
Distributed the network successfully: Blue indicator stays on continuously
AP distribution mode: Blue indicator flashes quickly (once per 0.5 seconds)
Reset: Red indicator flashes quickly (once per 0.5 seconds)

Wi-Fi Frequency

2.4 GHz (Incompatible with 5 GHz Wi-Fi network)

Wi-Fi Transmission Range

50 m (164 ft)

Wi-Fi Protocol

IEEE 802.11b/g/n

Operating Frequency

868 MHz

Maximum Number of Connected Devices

24 WisuLink wireless interconnected products

Color

White

Casing

ABS

Dimensions

L78.2mm × W78.2mm × H22.9mm (L3.08" × W3.08" × H0.90")

Weight

60 g (0.13 lb)

Installation

Free-standing/Wall mounting

Operating Temperature

-10°C to +55S°C (+14°F to +131°F)

Operating Humidity

≤95% RH (non condensing)

Certifications

CE, UKCA

Do I need the Gateway for my WisuAlarm system to work?

No, your WisuAlarm alarms will still interconnect and sound without the Gateway. The Gateway is only needed if you want remote monitoring and push notifications via the WisuAlarm app.

How many alarms can I connect to one Gateway?

A single Gateway can connect with up to 24 WisuAlarm wireless-enabled devices.

What do I need to set it up?

You’ll need a USB-C power lead (not supplied), plus a Wi-Fi or Ethernet connection. Setup is guided step-by-step in the free WisuAlarm app.

Will I still get alerts if my internet goes down?

No, the Gateway requires a live internet connection to send push notifications. Your alarms will still sound in the property as normal.

Where should I place the Gateway?

It can be wall-mounted for a fixed installation or used free-standing on a table or shelf. Choose a location with a good Wi-Fi signal.

WisuAlarm Internet Gateway Datasheet

Click here to download
