Code: FDS002/157
Code: FDS002/157

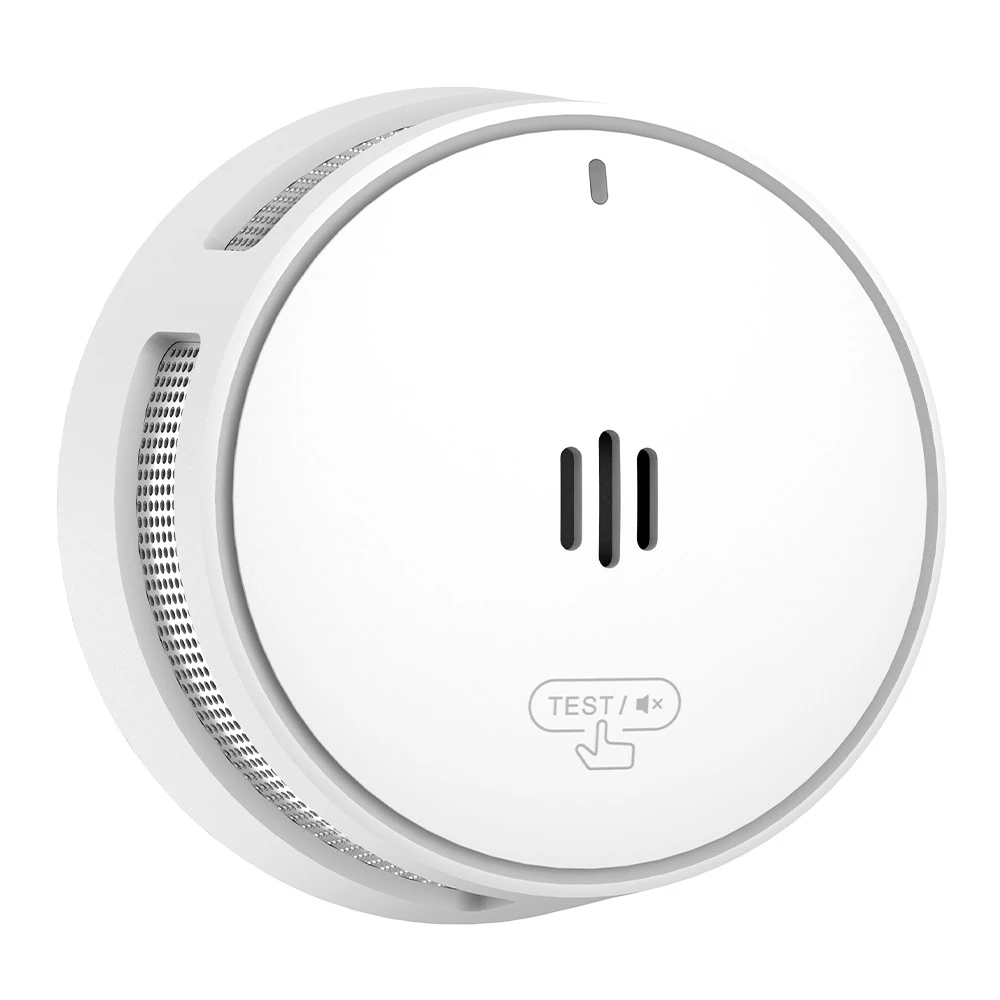

The WisuAlarm Interlinked Battery Smoke Alarm 10 Pack (DHI-HY-SA40A-R8) provides reliable, compliant F1 fire protection for domestic properties, landlords and developers.
Each alarm operates independently or can be wirelessly interconnected with up to 24 WisuAlarm smoke, heat, or carbon monoxide detectors for full-property coverage.
When one unit activates, all connected alarms sound simultaneously, giving faster warning across every room.
Using advanced split-spectrum sensing, these detectors identify both slow-smouldering and fast-flaming fires quickly while reducing false alarms.
Each alarm is powered by a sealed 10-year lithium battery, offering long-term, maintenance-free operation without the need for mains wiring.
For additional peace of mind, the system can be linked to the optional WisuAlarm Internet Gateway to send real-time alerts straight to your phone.
Supplied as a 10-pack, this bundle is ideal for multi-room installations, rental upgrades, or contractors fitting interlinked smoke alarms across multiple properties.
10 pack
Wireless interconnect with up to 24 enabled devices
DHI-HY-SA40A-R8
Split-spectrum sensor technology
Grade F1 device
10 Year Sealed Lithium Battery
Test and hush features in one single button
Loud sound output over 85 dB(A) at 3 meters
Low battery warning signal
Easy installation
Remote controlled silence option
Category | Specification |
|---|---|
Model | DHI-HY-SA40A-R8 |
Working Principle | Photoelectric (split-spectrum) |
Collection Type | Smoke |
Sampling Period | 9 seconds |
Pre-set Alarm Value | 0.2 dB/m – 0.3 dB/m |
Alarm Volume | 85 dB(A) at 3m |
Alarm Mode | Visual and audible |
Silence Function | Yes |
Silence Duration | 9 minutes |
Infrared Silence | Yes |
Operating Frequency | 868 MHz |
Radio Range | Up to 1000m (open air) |
Max Interconnected Units | 24 |
Coverage Area | 20–40m² (ceiling height <8m) |
Battery Life | 10 years |
Power Source | 3V CR123A lithium (sealed) |
Monitoring Current | ≤15µA (average) |
Alarm Current | ≤35mA (average) |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤95% RH (non-condensing) |
Dimensions | Ø81.5mm × 51.6mm |
Weight | 110g |
Installation | Ceiling mount |
Casing | PC+ABS |
Colour | White |
Certifications | TÜV & CE |
Compliance Standards | EN 14604:2005+AC:2008, EN 62479:2010, EN 50130-4:2011+A1, EN 301489-1 V2.2.3:2019, EN 301489-3 V2.1.1:2019 |
The WisuAlarm Interlinked Battery Smoke Alarm 10 Pack (DHI-HY-SA40A-R8) provides reliable, compliant F1 fire protection for domestic properties, landlords and developers.
Each alarm operates independently or can be wirelessly interconnected with up to 24 WisuAlarm smoke, heat, or carbon monoxide detectors for full-property coverage.
When one unit activates, all connected alarms sound simultaneously, giving faster warning across every room.
Using advanced split-spectrum sensing, these detectors identify both slow-smouldering and fast-flaming fires quickly while reducing false alarms.
Each alarm is powered by a sealed 10-year lithium battery, offering long-term, maintenance-free operation without the need for mains wiring.
For additional peace of mind, the system can be linked to the optional WisuAlarm Internet Gateway to send real-time alerts straight to your phone.
Supplied as a 10-pack, this bundle is ideal for multi-room installations, rental upgrades, or contractors fitting interlinked smoke alarms across multiple properties.
10 pack
Wireless interconnect with up to 24 enabled devices
DHI-HY-SA40A-R8
Split-spectrum sensor technology
Grade F1 device
10 Year Sealed Lithium Battery
Test and hush features in one single button
Loud sound output over 85 dB(A) at 3 meters
Low battery warning signal
Easy installation
Remote controlled silence option
Category | Specification |
|---|---|
Model | DHI-HY-SA40A-R8 |
Working Principle | Photoelectric (split-spectrum) |
Collection Type | Smoke |
Sampling Period | 9 seconds |
Pre-set Alarm Value | 0.2 dB/m – 0.3 dB/m |
Alarm Volume | 85 dB(A) at 3m |
Alarm Mode | Visual and audible |
Silence Function | Yes |
Silence Duration | 9 minutes |
Infrared Silence | Yes |
Operating Frequency | 868 MHz |
Radio Range | Up to 1000m (open air) |
Max Interconnected Units | 24 |
Coverage Area | 20–40m² (ceiling height <8m) |
Battery Life | 10 years |
Power Source | 3V CR123A lithium (sealed) |
Monitoring Current | ≤15µA (average) |
Alarm Current | ≤35mA (average) |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤95% RH (non-condensing) |
Dimensions | Ø81.5mm × 51.6mm |
Weight | 110g |
Installation | Ceiling mount |
Casing | PC+ABS |
Colour | White |
Certifications | TÜV & CE |
Compliance Standards | EN 14604:2005+AC:2008, EN 62479:2010, EN 50130-4:2011+A1, EN 301489-1 V2.2.3:2019, EN 301489-3 V2.1.1:2019 |
