Code: FDS002/097
Code: FDS002/097

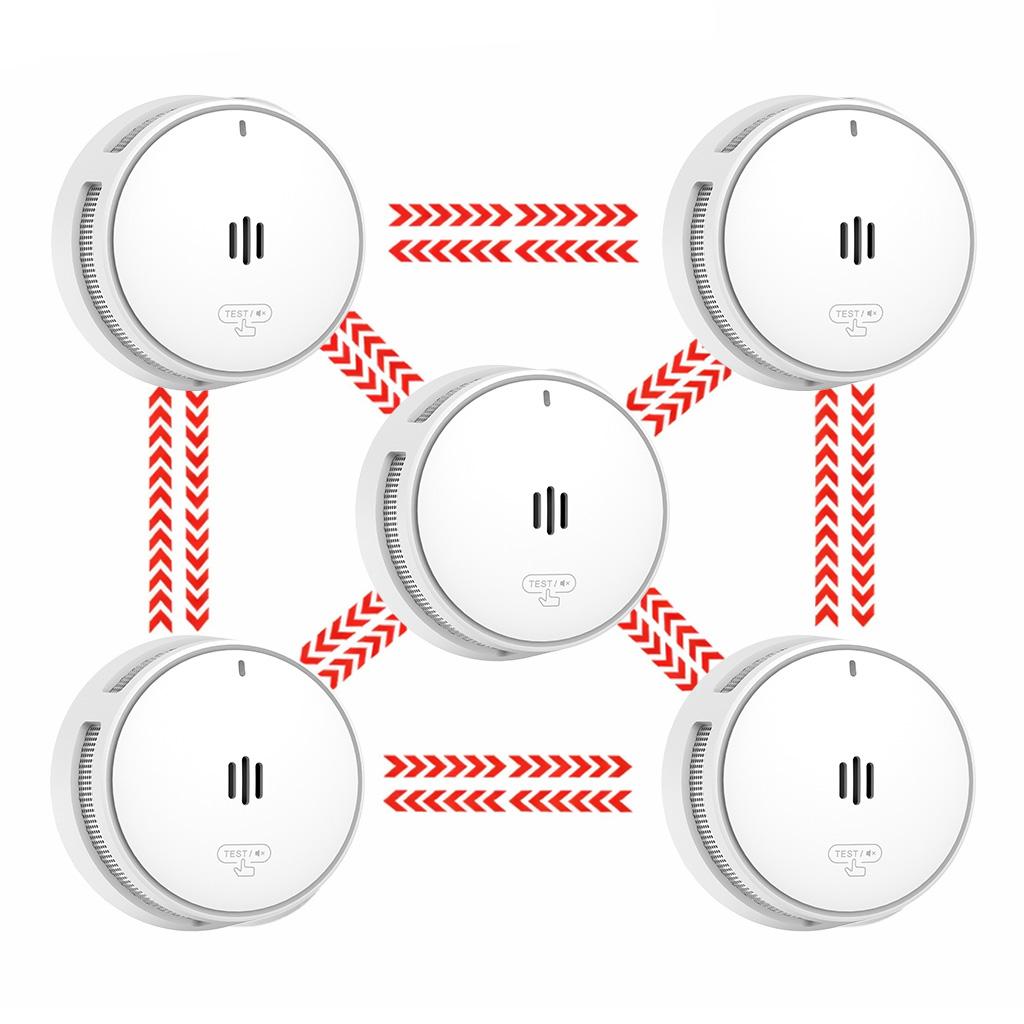

The WisuAlarm DHI-HY-SA40A-R8 Wireless Interconnected Smoke Alarm (Pack of 5) provides reliable whole-property protection using advanced split-spectrum sensing technology.
Designed for domestic homes, rental properties, HMOs and holiday lets, each alarm continuously monitors smoke concentration and responds quickly with both visual and audible alerts. When one alarm activates, all interconnected units sound simultaneously, ensuring occupants are alerted wherever they are in the property.
Each alarm is powered by a sealed 10-year lithium battery and can wirelessly interlink with up to 24 compatible WisuAlarm devices, creating a complete home safety network without additional wiring.
With infrared remote hush capability, low battery warning, and EN 14604 compliance, this five-pack provides a practical and cost-effective solution for protecting larger homes or multiple rooms.
Pack of 5 × DHI-HY-SA40A-R8 Wireless Interconnected Smoke Alarms
Split-spectrum photoelectric smoke sensing technology
Sealed 10-year CR123A lithium battery (non-replaceable)
Wireless interconnection with up to 24 devices
868MHz operating frequency
Radio range up to 1000m in open air
Loud 85 dB(A) alarm at 3 metres
Combined test and hush button
Infrared remote silencing function
9-minute silence duration
Low battery warning signal
Visual and audible alarm indication
Suitable for ceiling mounting
EN 14604 certified
Category | Specification |
|---|---|
Model | DHI-HY-SA40A-R8 |
Working Principle | Photoelectric (split-spectrum) |
Collection Type | Smoke |
Sampling Period | 9 seconds |
Pre-set Alarm Value | 0.2 dB/m – 0.3 dB/m |
Alarm Volume | 85 dB(A) at 3m |
Alarm Mode | Visual and audible |
Silence Function | Yes |
Silence Duration | 9 minutes |
Infrared Silence | Yes |
Operating Frequency | 868 MHz |
Radio Range | Up to 1000m (open air) |
Max Interconnected Units | 24 |
Coverage Area | 20–40m² (ceiling height <8m) |
Battery Life | 10 years |
Power Source | 3V CR123A lithium (sealed) |
Monitoring Current | ≤15µA (average) |
Alarm Current | ≤35mA (average) |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤95% RH (non-condensing) |
Dimensions | Ø81.5mm × 51.6mm |
Weight | 110g |
Installation | Ceiling mount |
Casing | PC+ABS |
Colour | White |
Certifications | TÜV & CE |
Compliance Standards | EN 14604:2005+AC:2008, EN 62479:2010, EN 50130-4:2011+A1, EN 301489-1 V2.2.3:2019, EN 301489-3 V2.1.1:2019 |
The WisuAlarm DHI-HY-SA40A-R8 Wireless Interconnected Smoke Alarm (Pack of 5) provides reliable whole-property protection using advanced split-spectrum sensing technology.
Designed for domestic homes, rental properties, HMOs and holiday lets, each alarm continuously monitors smoke concentration and responds quickly with both visual and audible alerts. When one alarm activates, all interconnected units sound simultaneously, ensuring occupants are alerted wherever they are in the property.
Each alarm is powered by a sealed 10-year lithium battery and can wirelessly interlink with up to 24 compatible WisuAlarm devices, creating a complete home safety network without additional wiring.
With infrared remote hush capability, low battery warning, and EN 14604 compliance, this five-pack provides a practical and cost-effective solution for protecting larger homes or multiple rooms.
Pack of 5 × DHI-HY-SA40A-R8 Wireless Interconnected Smoke Alarms
Split-spectrum photoelectric smoke sensing technology
Sealed 10-year CR123A lithium battery (non-replaceable)
Wireless interconnection with up to 24 devices
868MHz operating frequency
Radio range up to 1000m in open air
Loud 85 dB(A) alarm at 3 metres
Combined test and hush button
Infrared remote silencing function
9-minute silence duration
Low battery warning signal
Visual and audible alarm indication
Suitable for ceiling mounting
EN 14604 certified
Category | Specification |
|---|---|
Model | DHI-HY-SA40A-R8 |
Working Principle | Photoelectric (split-spectrum) |
Collection Type | Smoke |
Sampling Period | 9 seconds |
Pre-set Alarm Value | 0.2 dB/m – 0.3 dB/m |
Alarm Volume | 85 dB(A) at 3m |
Alarm Mode | Visual and audible |
Silence Function | Yes |
Silence Duration | 9 minutes |
Infrared Silence | Yes |
Operating Frequency | 868 MHz |
Radio Range | Up to 1000m (open air) |
Max Interconnected Units | 24 |
Coverage Area | 20–40m² (ceiling height <8m) |
Battery Life | 10 years |
Power Source | 3V CR123A lithium (sealed) |
Monitoring Current | ≤15µA (average) |
Alarm Current | ≤35mA (average) |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤95% RH (non-condensing) |
Dimensions | Ø81.5mm × 51.6mm |
Weight | 110g |
Installation | Ceiling mount |
Casing | PC+ABS |
Colour | White |
Certifications | TÜV & CE |
Compliance Standards | EN 14604:2005+AC:2008, EN 62479:2010, EN 50130-4:2011+A1, EN 301489-1 V2.2.3:2019, EN 301489-3 V2.1.1:2019 |
