WisuAlarm Alarm Kit for the Deaf & Hard of Hearing

Name: WisuAlarm Alarm Kit for the Deaf & Hard of Hearing
Brand: Wisualarm
Price: 66.3 GBP
Availability: InStock

Code: FDS002/626

£66.30

INC VAT

Code: FDS002/626

Alarm kit designed for deaf and hard of hearing occupants
Combined high-intensity strobe light and vibration pad alerting
Visual and tactile alarm activation on fire, smoke, heat, CO and gas events

Add these extras to your kit

Please Select

MultiMax L-Ion Multipurpose Fire Extinguisher(£25.00 inc vat)

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

The DHI-HY-KIT1-SLVP Alarm Kit for the Deaf and Hard of Hearing is designed to provide clear, reliable fire and gas alarm alerts for occupants who may not respond to audible alarms alone.

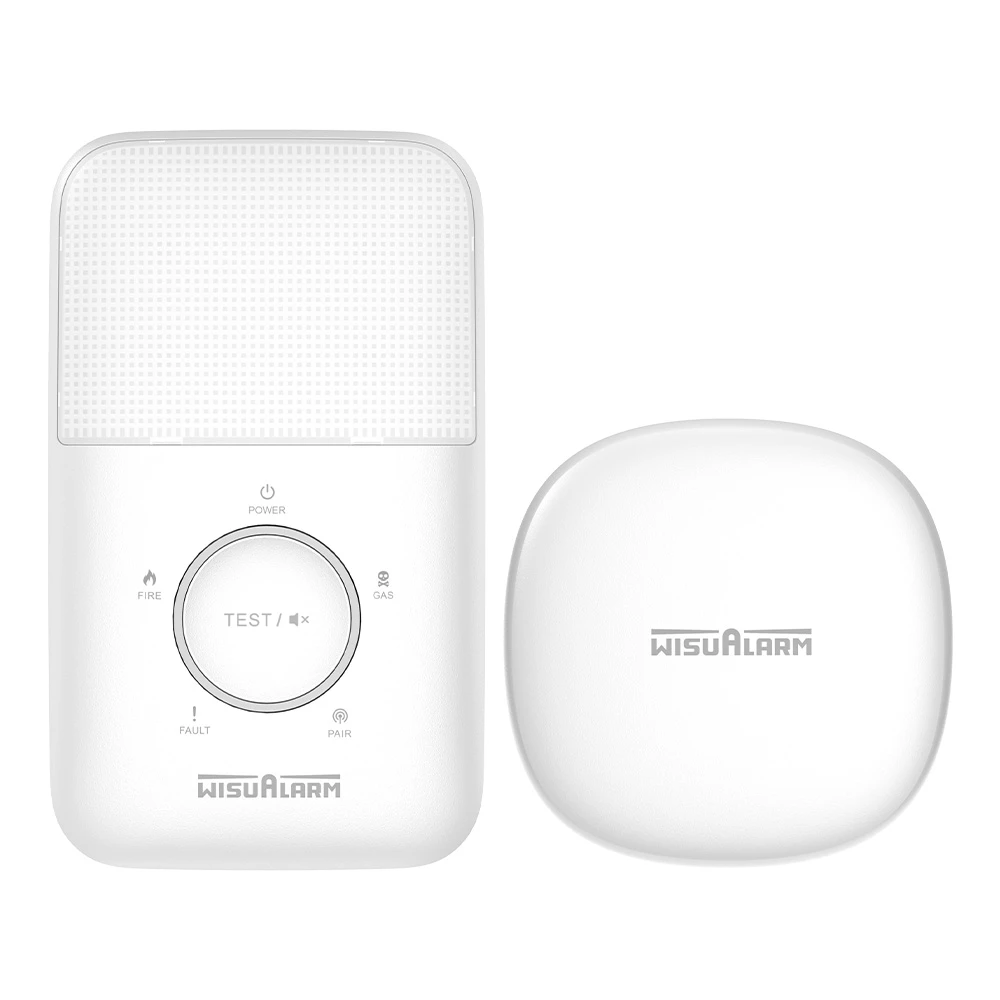

The kit combines a high-intensity strobe light with a vibration pad, delivering both visual and tactile alerting when a connected alarm is triggered. This dual alert method helps ensure occupants are notified quickly and can evacuate safely in an emergency.

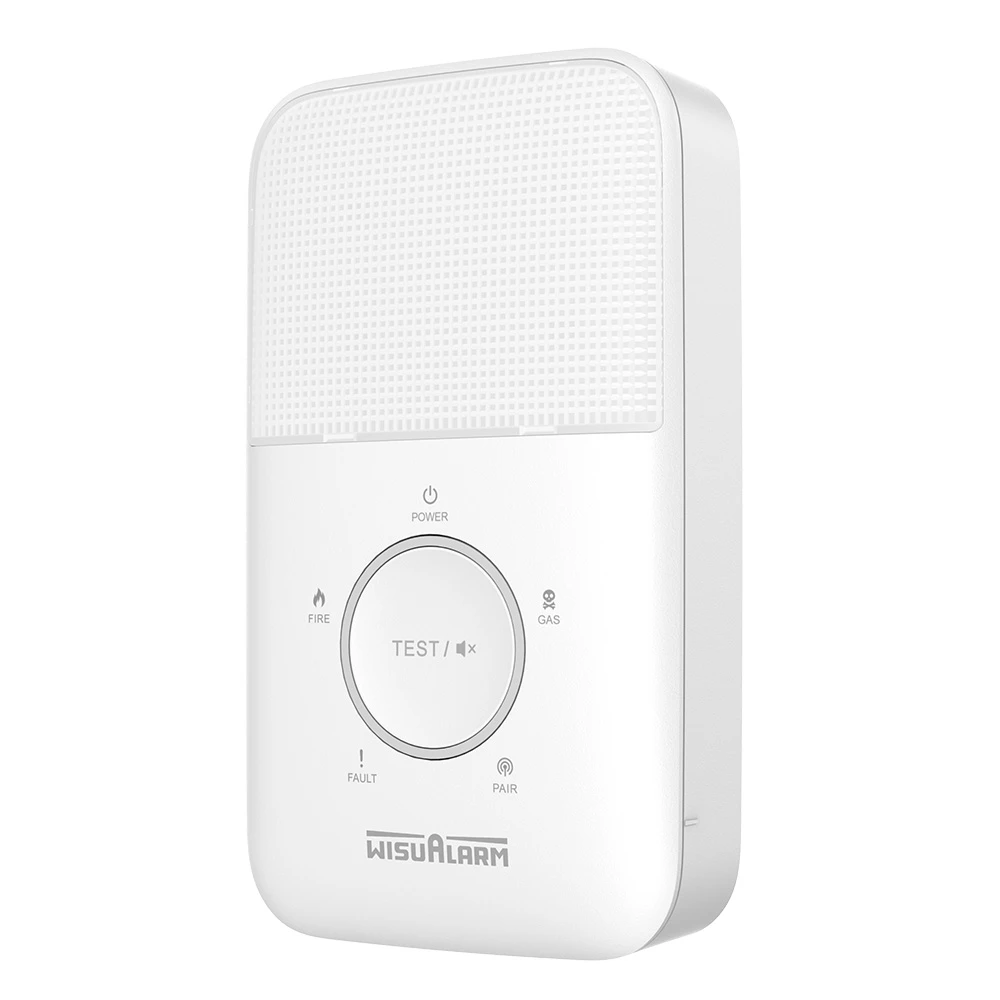

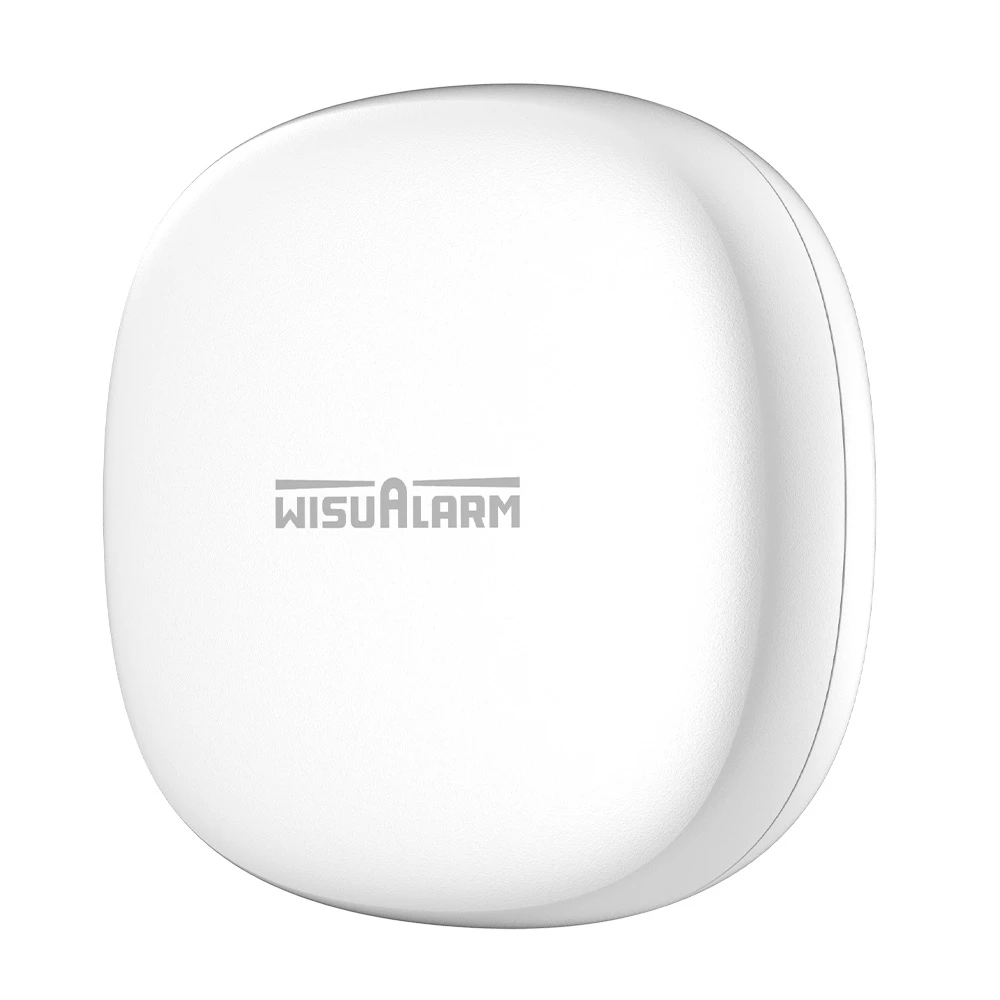

The strobe light is mains powered and includes a rechargeable lithium battery backup, ensuring continued operation during a power failure. The vibration pad is powered directly from the strobe unit and can be placed under a pillow, mattress or seat cushion for effective overnight alerting.

Wireless interconnection allows the kit to link with compatible WisuAlarm wireless smoke, heat, carbon monoxide and gas alarms, supporting up to 24 interconnected devices. When any linked alarm activates, the strobe and vibration pad are triggered automatically.

Clear LED indicators provide system status at a glance, including fire, gas, fault, power and pairing states. This makes installation, testing and ongoing maintenance straightforward.

Designed for indoor use, the system is suitable for environments such as bedrooms, hotels, care facilities, hospitals and student accommodation where additional alarm awareness is required.

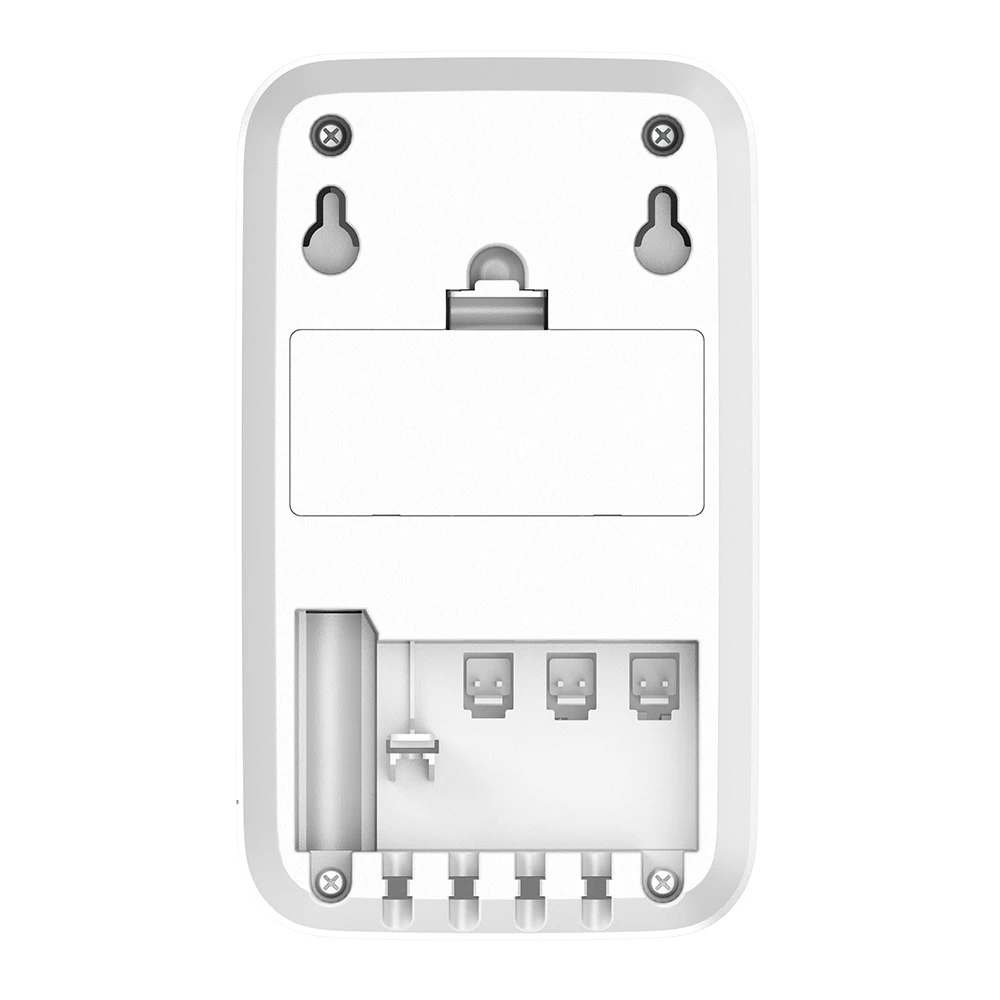

The kit supports flexible installation, with the strobe light suitable for wall mounting or free-standing placement, and includes a one-touch self-test function for routine checks.

Compliance with BS 5446-3:2015 confirms suitability for use as an alarm device for the deaf and hard of hearing in fire alarm applications.

Alarm kit designed for deaf and hard of hearing occupants
Combined high-intensity strobe light and vibration pad alerting
Visual and tactile alarm activation on fire, smoke, heat, CO and gas events
Wireless interconnection with WisuAlarm devices, supporting up to 24 linked alarms
Mains-powered strobe with rechargeable lithium battery backup
Vibration pad powered directly from the strobe unit
Clear LED status indicators for fire, gas, fault, power and pairing states
Supports wall mounting or free-standing installation
One-touch self-test function for routine testing
Suitable for indoor environments such as bedrooms, hotels, care facilities and hospitals
Compliant with BS 5446-3:2015 for deaf and hard of hearing alarm devices

Category	Specification	Details
General	Product type	Alarm kit for the deaf and hard of hearing
	Model	DHI-HY-KIT1-SLVP
	Components	Strobe light and vibration pad
	Operating environment	Indoor
	Warranty	5 years
	Compliance	BS 5446-3:2015
Wireless	Interconnection	Wireless interconnection with WisuAlarm devices
	Max interconnected devices	Up to 24
	Communication	Sub-G
	Radio frequency	868 MHz
	Wireless range	Up to 1000 m (open air)
Strobe light	Alarm method	Visual (strobe)
	Power supply	230 V AC, 50 Hz
	Backup battery	3.7 V 2500 mAh rechargeable lithium battery
	Operating current	20 mA
	Alarm current	150 mA
	LED indicators	Fire, gas, fault, power, pairing
	Operating temperature	-10°C to +55°C
	Operating humidity	≤95% RH (non-condensing)
	Casing material	PC + ABS
	Dimensions	161 × 95 × 40 mm
	Weight	255 g
	Installation	Wall mounted or free standing
Vibration pad	Alarm method	Vibration
	Power supply	12 V DC (powered by strobe light)
	Operating current	5 mA
	Alarm current	70 mA
	Operating temperature	-10°C to +55°C
	Operating humidity	≤95% RH (non-condensing)
	Casing material	PC + ABS
	Dimensions	97 × 97 × 35 mm
	Weight	185 g
	Installation	Free standing (under pillow, mattress or seat cushion)

Does the WisuAlarm Deaf & Hard of Hearing Alarm Kit work with my existing smoke alarms?

The DHI-HY-KIT1-SLVP is designed to wirelessly interconnect with compatible WisuAlarm smoke, heat, carbon monoxide and gas alarms.

It will not automatically connect to smoke alarms from other manufacturers or standard standalone alarms already installed in your home. If you are unsure whether your existing WisuAlarm devices are compatible, contact us with the model numbers and we can check for you.

Do I need a WisuAlarm smoke alarm to use this kit?

Yes. The strobe light and vibration pad provide the visual and tactile warning, but a compatible WisuAlarm alarm is required to detect smoke, heat, carbon monoxide or gas and trigger the kit.

How many alarms can be connected to the kit?

The WisuAlarm wireless network supports up to 24 interconnected devices, including compatible alarms and alerting devices.

Is the kit suitable for use in a bedroom?

Yes. The kit is particularly suited to bedrooms because the vibration pad can be positioned underneath a pillow or mattress to provide a tactile warning while the occupant is asleep.

Does the Deaf & Hard of Hearing Alarm Kit detect smoke itself?

No. The DHI-HY-KIT1-SLVP is an alerting device rather than a smoke, heat or carbon monoxide detector.

It must be interconnected with a compatible WisuAlarm smoke, heat, CO or gas alarm. When one of those alarms detects a hazard, the kit activates its strobe light and vibration pad.

How long is the cable between the strobe light and vibration pad?

The cable between the strobe light and vibration pad is approximately 3 metres long.

This gives you flexibility to position the strobe where it can be clearly seen while placing the vibration pad beneath a pillow or mattress.

Does the kit need to be permanently powered?

Yes. The strobe unit is designed to remain connected to its mains power supply continuously.

It also includes a rechargeable backup battery for use if the mains supply fails.

What is the wireless range?

The maximum stated wireless range is up to 1,000 metres in open-air conditions when operating at 868 MHz.

Actual range inside a property will be lower because walls, floors, furniture and other building materials can affect the wireless signal.
