110V Weatherguard Site Lighting Tripod Head

Name: 110V Weatherguard Site Lighting Tripod Head
SKU: FDS002/767
Price: 57.588 GBP
Availability: InStock

Code: FDS002/768

£49.79

INC VAT

Code: FDS002/768

Emergency Mode Length

Designed for quick and easy on-site setup
Twin 110V power outlets for added functionality
Supplied with 5m pre-wired cable and plug

Have a question about this? Click here

Overview Features Technical Data

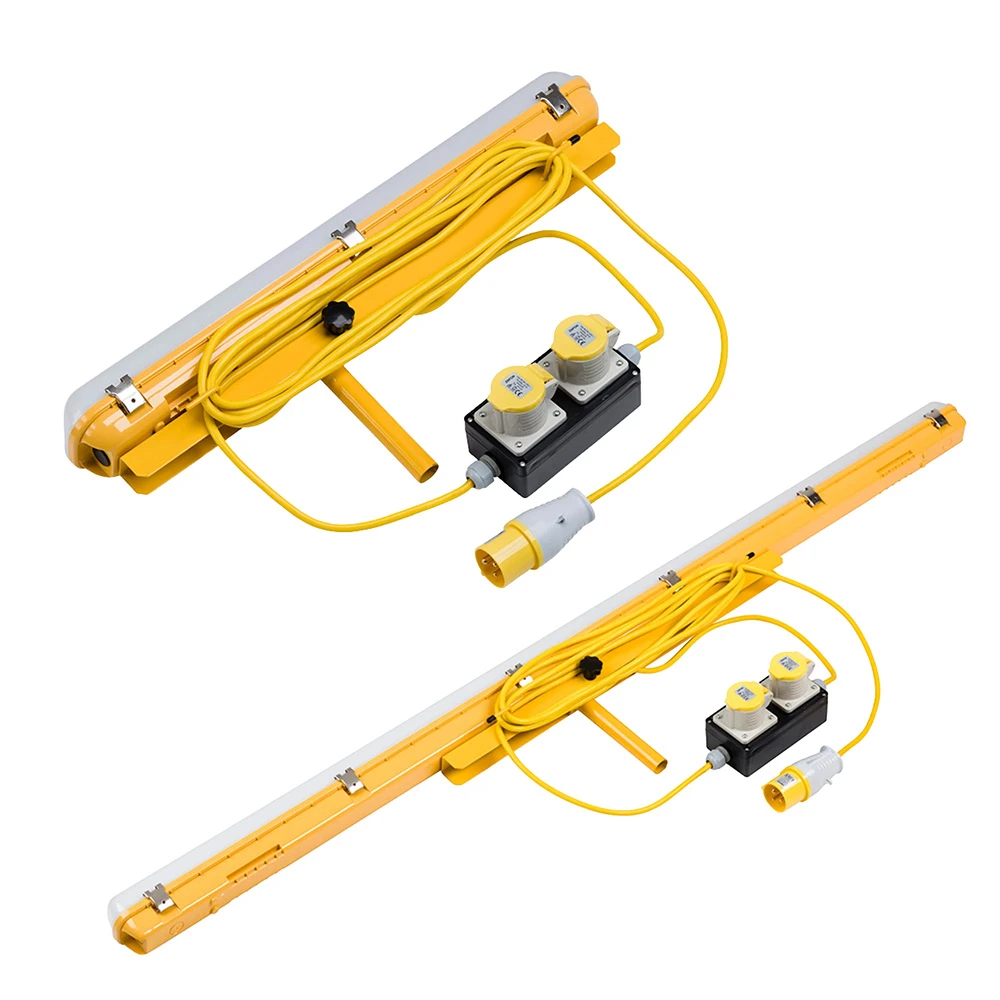

The Weatherguard Site Lighting Tripod Head is designed to deliver fast, reliable lighting on-site with minimal setup time, helping you keep projects moving without unnecessary disruption.

Ideal for temporary site lighting, it provides bright, consistent illumination for work areas, access routes and task zones where dependable lighting is essential.

The unit is supplied ready to mount onto a compatible tripod (sold separately) and comes pre-wired with a 5m cable and plug, allowing for quick and straightforward installation.

Built for tough environments, it features twin 110V sockets for added versatility, along with IP65 ingress protection and IK07 impact resistance for durability on site.

A replaceable LED module ensures long-term usability, making this a practical and future-proof lighting solution for demanding applications.

Designed for quick and easy on-site setup
Twin 110V power outlets for added functionality
Supplied with 5m pre-wired cable and plug
Provides bright, consistent site lighting
IP65 rated for protection against dust and water
IK07 impact resistance for durability
Replaceable LED module for extended product life
Tripod sold separately
3-year warranty

Specification	600mm Fixed Output	600mm Emergency	1500mm Fixed Output	1500mm Emergency
Wattage	20W	20W	25W	25W
Lumen Output	2000 lm	2000 lm	2500 lm	2500 lm
Emergency Lumen Output	—	180 lm	—	225 lm
Efficacy	100 lm/W	100 lm/W	100 lm/W	100 lm/W
Colour Temperature (CCT)	4000K	4000K	4000K	4000K
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Colour Rendering (CRI)	Ra > 80	Ra > 80	Ra > 80	Ra > 80
Driver Type	Fixed Output	Fixed Output	Fixed Output	Fixed Output
Emergency Battery Type	—	LiFePO4	—	LiFePO4
Colour Finish	Yellow	Yellow	Yellow	Yellow
Voltage	110V	110V	110V	110V
IP Rating	IP65	IP65	IP65	IP65
IK Rating	IK07	IK07	IK07	IK07
LED Life Expectancy	L80B50 30,000 hrs	L80B50 30,000 hrs	L80B50 30,000 hrs	L80B50 30,000 hrs
Power Factor	0.9	0.9	0.9	0.9
Working Temperature	-20°C to 40°C	0°C to 40°C	-20°C to 40°C	0°C to 40°C
Emergency Working Temp	—	0°C to 40°C	—	0°C to 40°C
Electrical Class	Class I	Class I	Class I	Class I
Approval	UKCA & CE	UKCA & CE	UKCA & CE	UKCA & CE
Material (Body)	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Material (Diffuser)	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate

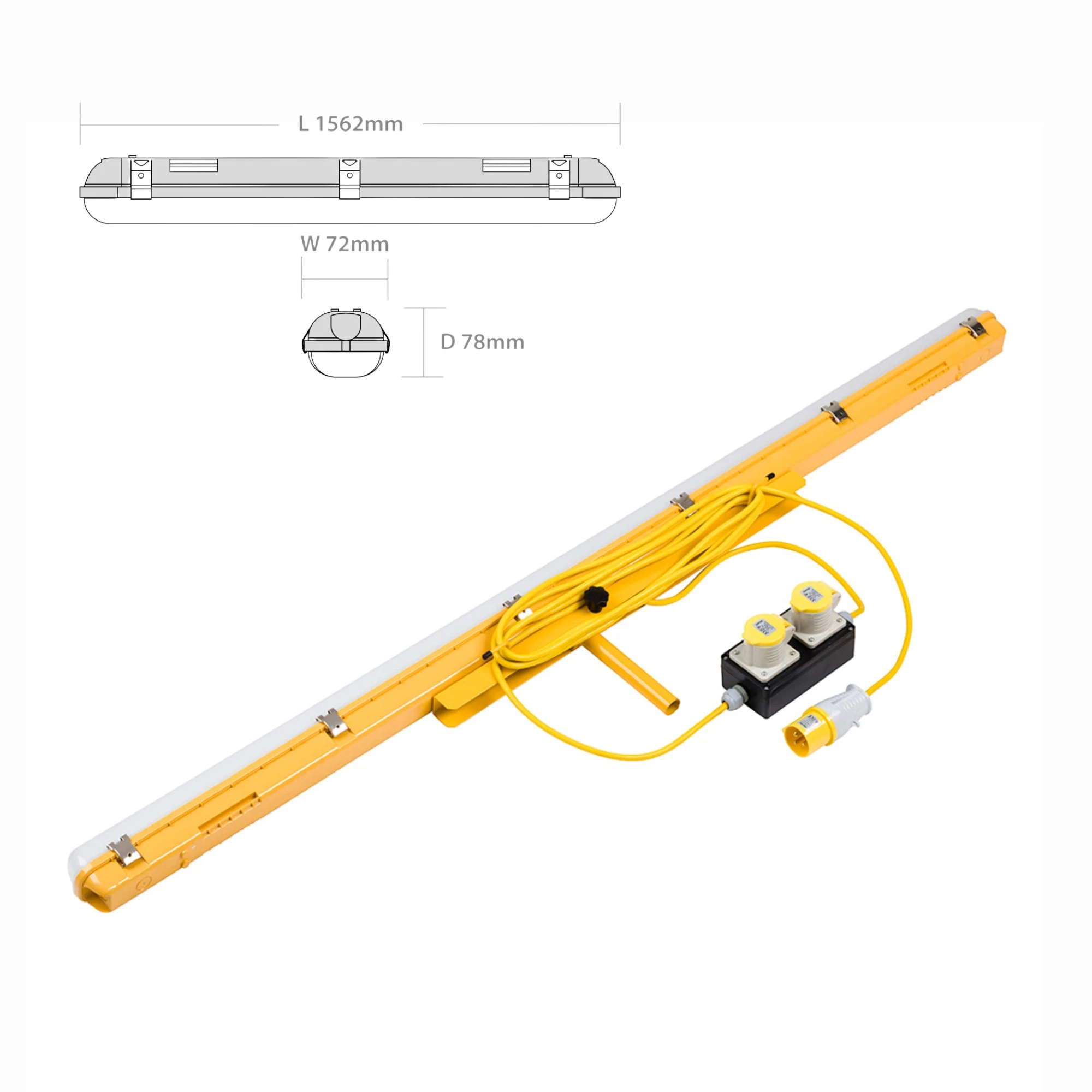

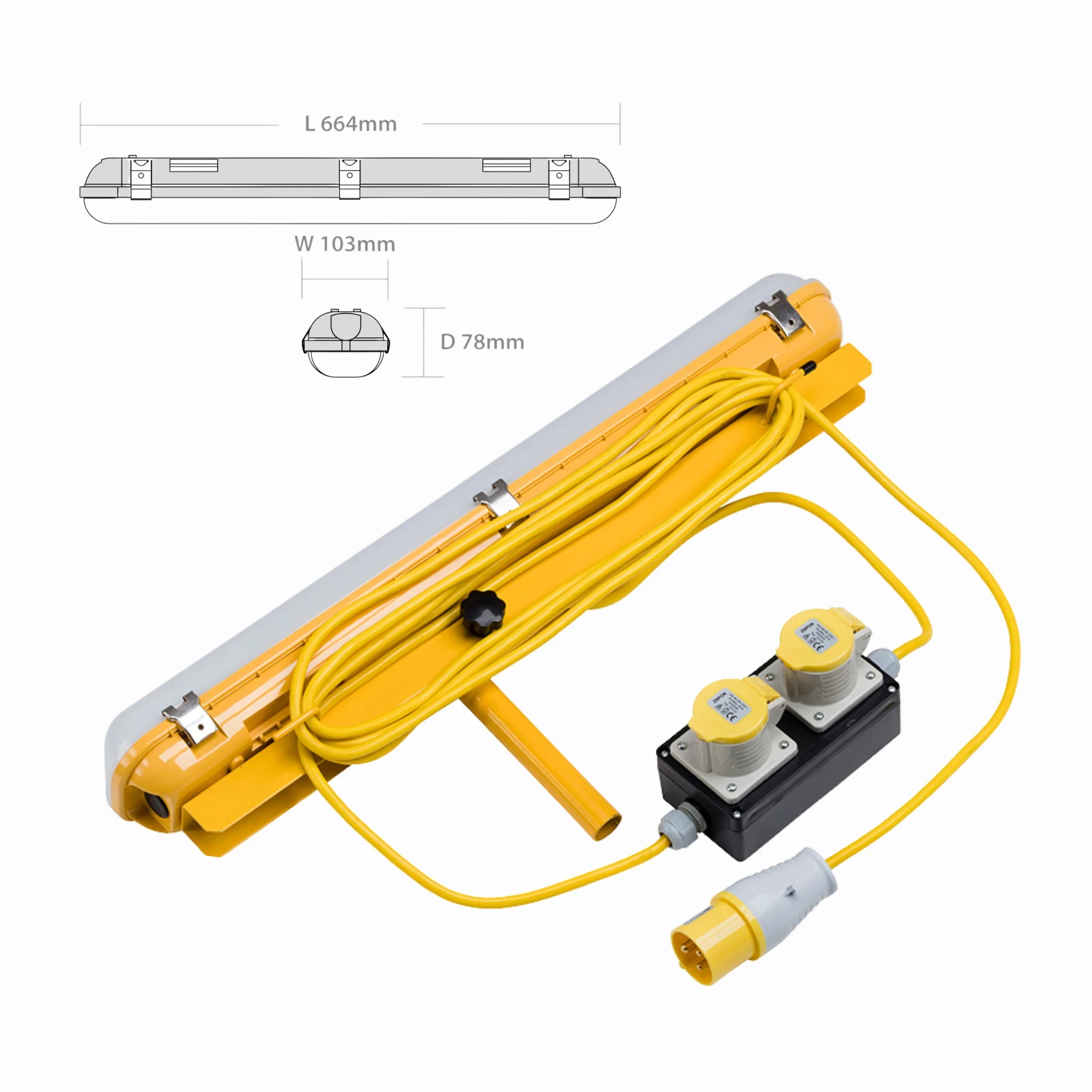

Dimensions (mm)	664 x 103 x 78	664 x 103 x 78	1562 x 72 x 78	1562 x 72 x 78
Net Weight	2.73 kg	3.03 kg	3.35 kg	3.72 kg

Overview

Features

Technical Data

Specification	600mm Fixed Output	600mm Emergency	1500mm Fixed Output	1500mm Emergency
Wattage	20W	20W	25W	25W
Lumen Output	2000 lm	2000 lm	2500 lm	2500 lm
Emergency Lumen Output	—	180 lm	—	225 lm
Efficacy	100 lm/W	100 lm/W	100 lm/W	100 lm/W
Colour Temperature (CCT)	4000K	4000K	4000K	4000K
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Colour Rendering (CRI)	Ra > 80	Ra > 80	Ra > 80	Ra > 80
Driver Type	Fixed Output	Fixed Output	Fixed Output	Fixed Output
Emergency Battery Type	—	LiFePO4	—	LiFePO4
Colour Finish	Yellow	Yellow	Yellow	Yellow
Voltage	110V	110V	110V	110V
IP Rating	IP65	IP65	IP65	IP65
IK Rating	IK07	IK07	IK07	IK07
LED Life Expectancy	L80B50 30,000 hrs	L80B50 30,000 hrs	L80B50 30,000 hrs	L80B50 30,000 hrs
Power Factor	0.9	0.9	0.9	0.9
Working Temperature	-20°C to 40°C	0°C to 40°C	-20°C to 40°C	0°C to 40°C
Emergency Working Temp	—	0°C to 40°C	—	0°C to 40°C
Electrical Class	Class I	Class I	Class I	Class I
Approval	UKCA & CE	UKCA & CE	UKCA & CE	UKCA & CE
Material (Body)	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Material (Diffuser)	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Dimensions (mm)	664 x 103 x 78	664 x 103 x 78	1562 x 72 x 78	1562 x 72 x 78
Net Weight	2.73 kg	3.03 kg	3.35 kg	3.72 kg
