110V Taurus Site Bulkhead IP65

Name: 110V Taurus Site Bulkhead IP65
SKU: FDS002/759
Price: 14.988 GBP
Availability: InStock

Code: FDS002/759

£14.99

INC VAT

Code: FDS002/759

Diffuser

Available with frosted, opal or red diffuser options
Designed for site and temporary lighting applications
Durable construction for demanding environments

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Taurus Site LED Bulkhead range is a versatile lighting solution designed for site use, offering reliable illumination across a variety of environments.

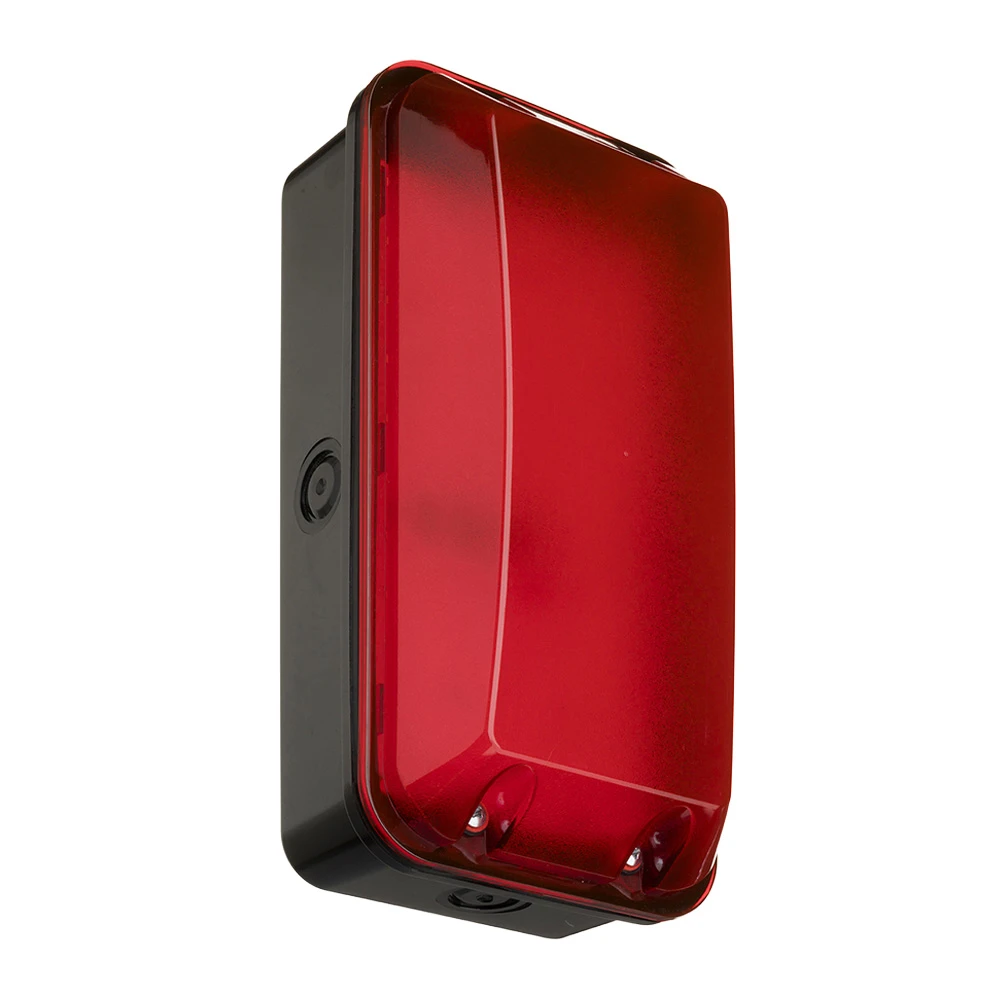

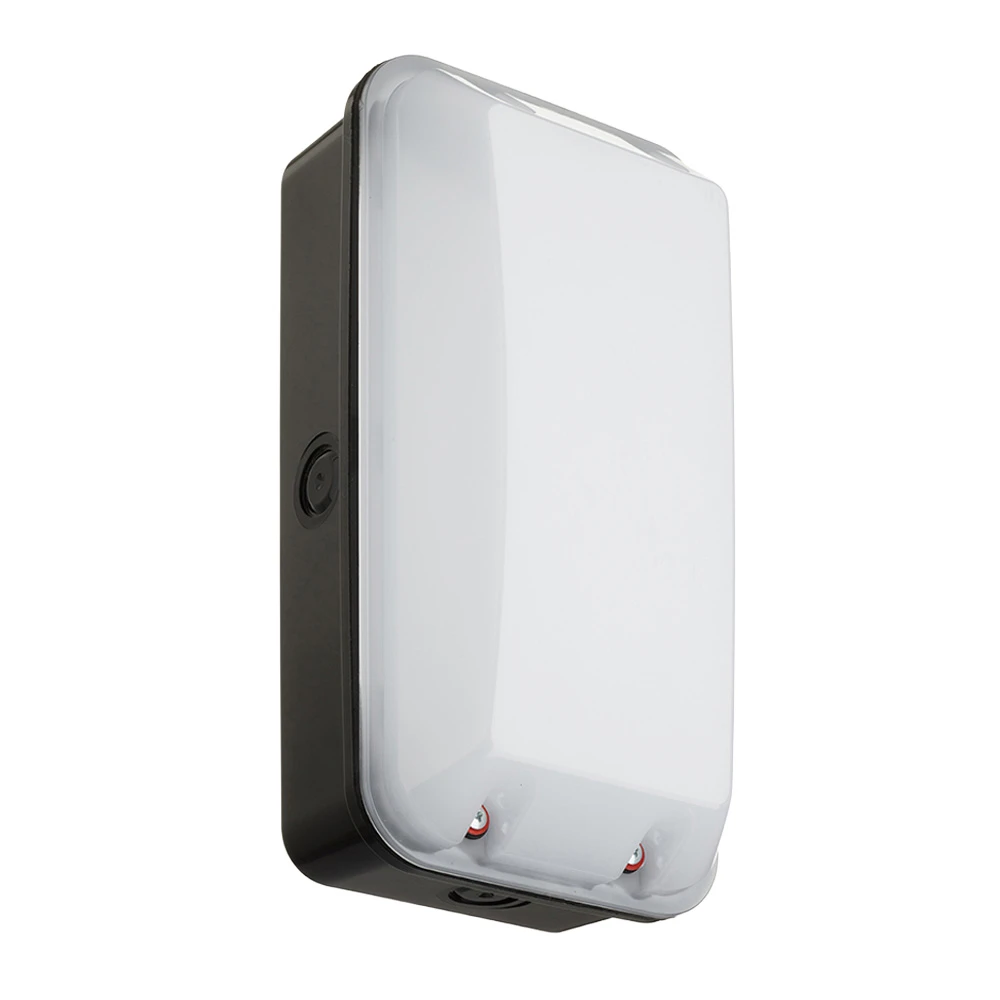

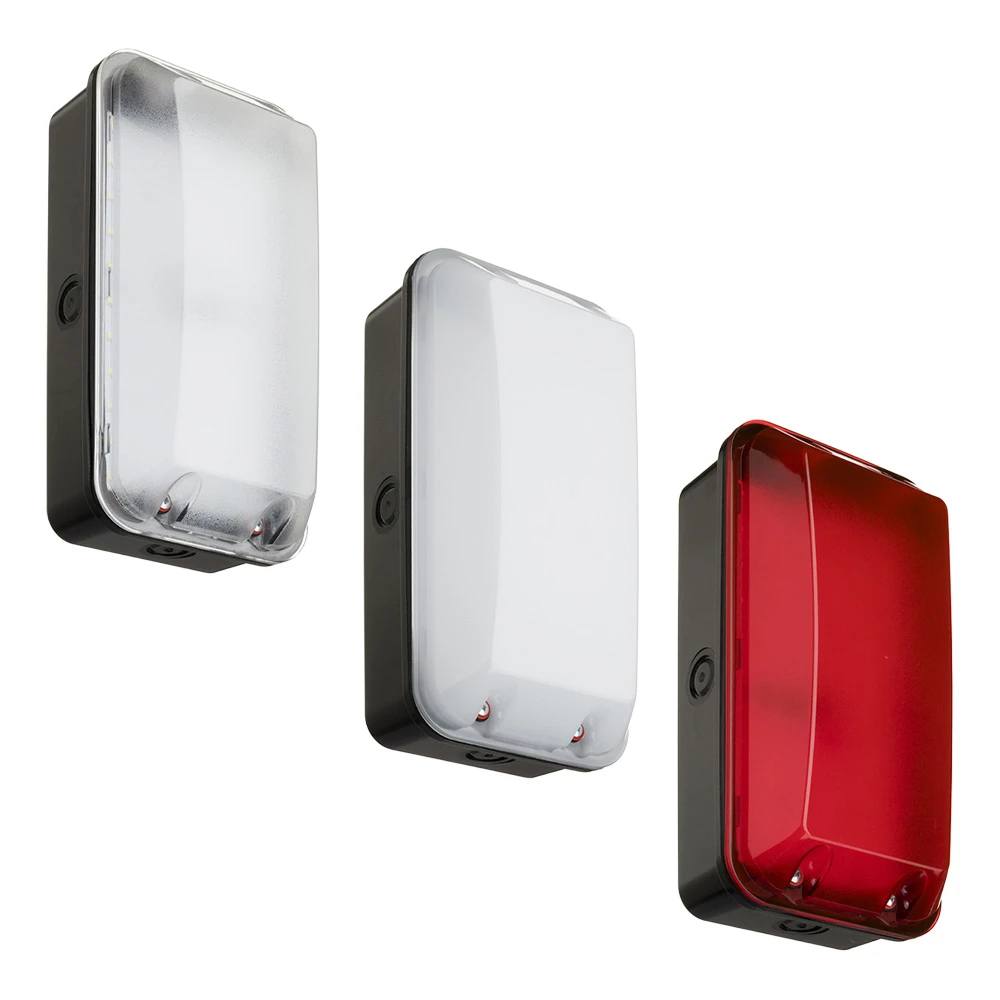

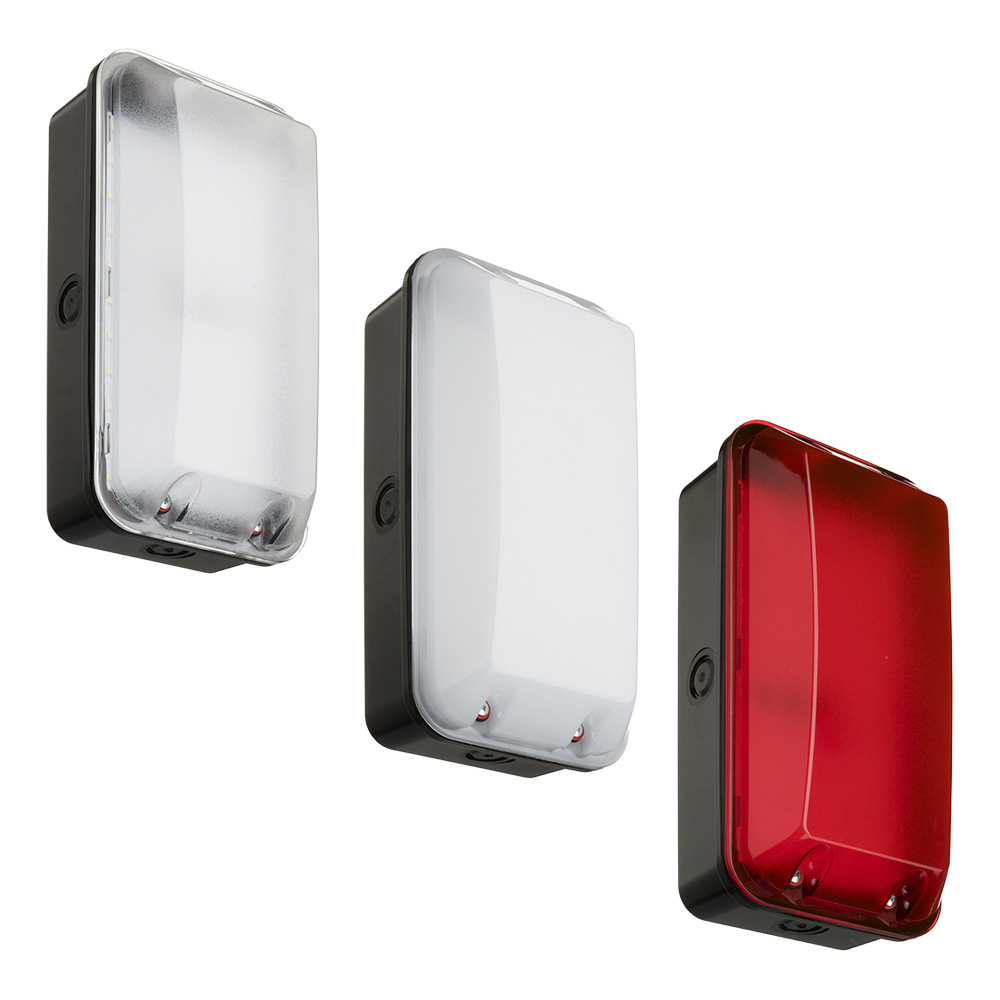

Available with frosted, opal or red diffusers, this range allows you to select the most suitable light output and visibility for your application, whether for general lighting, reduced glare or signalling purposes.

Built with durability in mind, each unit features a robust construction suitable for demanding site conditions, making it ideal for construction, temporary works and industrial environments.

Designed for straightforward installation, the Taurus Site Bulkhead provides consistent, energy-efficient lighting while maintaining a compact and practical form factor.

Available with frosted, opal or red diffuser options
Designed for site and temporary lighting applications
Durable construction for demanding environments
Provides consistent and reliable illumination
Compact design for easy installation
Suitable for a range of commercial and industrial uses
Energy-efficient LED technology
Flexible solution for general lighting or signalling applications

Specification	Red Diffuser Model	Frosted Diffuser Model	Opal Diffuser Model
IP Rating	IP65	IP65	IP65
IK Rating	IK08	IK08	IK08
Electrical Class	Class II	Class II	Class II
Voltage	110–240V	110–240V	110–240V
Frequency	-	50/60Hz	50/60Hz
Working Temperature	-10°C to 40°C	-10°C to 40°C	-10°C to 40°C
Lumen Output	190 lm	900 lm	800 lm
Colour Temperature (CCT)	-	5700K	5700K
Colour Rendering (CRI)	-	Ra >80	Ra >80
Wattage	8W	8W	8W
Efficacy	24 lm/W	110 lm/W	100 lm/W
Material (Body)	Polycarbonate	Polycarbonate	Polycarbonate
Material (Diffuser)	Polycarbonate	Polycarbonate	Polycarbonate
Colour Finish	Red	Clear	Opal
LED Life Expectancy	L70B50 50,000 hrs	L70B50 50,000 hrs	L70B50 50,000 hrs
Power Factor	>0.95	>0.95	>0.95
Driver Type	Fixed Output	Fixed Output	Fixed Output

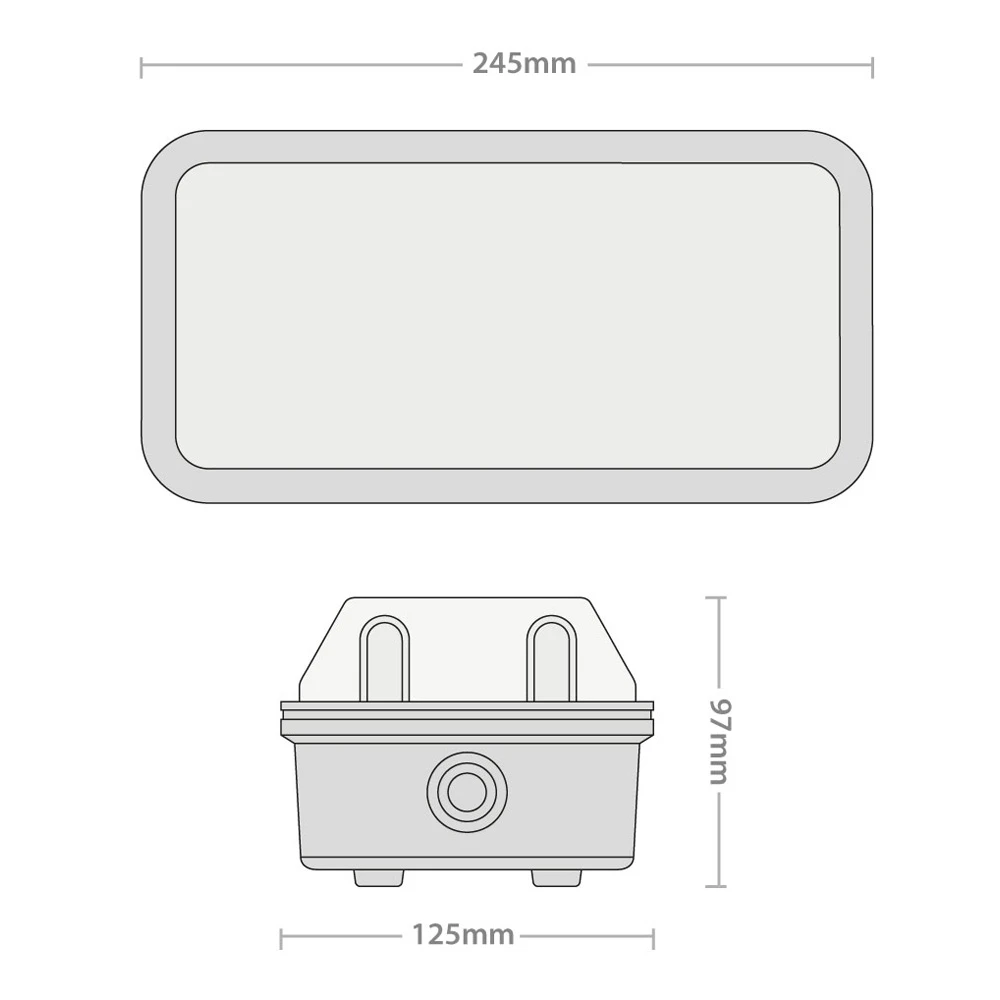

Height	245 mm	245 mm	245 mm
Width	125 mm	125 mm	125 mm
Depth	97 mm	97 mm	97 mm
Weight	0.385 kg	0.385 kg	0.385 kg
Approval	UKCA, CE	UKCA, CE	UKCA, CE

110V Taurus Site Bulkhead IP65 Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Red Diffuser Model	Frosted Diffuser Model	Opal Diffuser Model
IP Rating	IP65	IP65	IP65
IK Rating	IK08	IK08	IK08
Electrical Class	Class II	Class II	Class II
Voltage	110–240V	110–240V	110–240V
Frequency	-	50/60Hz	50/60Hz
Working Temperature	-10°C to 40°C	-10°C to 40°C	-10°C to 40°C
Lumen Output	190 lm	900 lm	800 lm
Colour Temperature (CCT)	-	5700K	5700K
Colour Rendering (CRI)	-	Ra >80	Ra >80
Wattage	8W	8W	8W
Efficacy	24 lm/W	110 lm/W	100 lm/W
Material (Body)	Polycarbonate	Polycarbonate	Polycarbonate
Material (Diffuser)	Polycarbonate	Polycarbonate	Polycarbonate
Colour Finish	Red	Clear	Opal
LED Life Expectancy	L70B50 50,000 hrs	L70B50 50,000 hrs	L70B50 50,000 hrs
Power Factor	>0.95	>0.95	>0.95
Driver Type	Fixed Output	Fixed Output	Fixed Output
Height	245 mm	245 mm	245 mm
Width	125 mm	125 mm	125 mm
Depth	97 mm	97 mm	97 mm
Weight	0.385 kg	0.385 kg	0.385 kg
Approval	UKCA, CE	UKCA, CE	UKCA, CE
