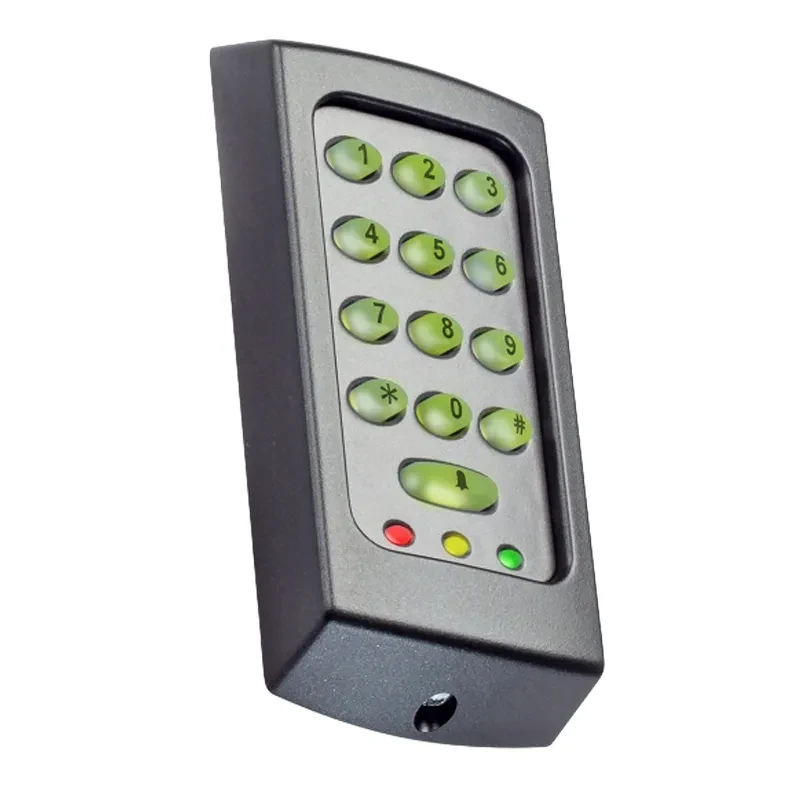

Paxton 375-120 Proximity Keypad - KP75 (Screw Connector)

The Paxton 375-120 Proximity Keypad KP75 with Screw Connector combines RFID proximity reading with keypad entry, providing flexible authentication for Paxton Net2 and Switch2 access control systems. It can be used for contactless token authentication or for applications requiring the additional security of token and PIN entry.

A compatible token is presented close to the reader, after which the connected control unit checks the user's access permissions. When token and PIN authentication is enabled, the amber LED flashes after the token is presented to prompt the user to enter their PIN. Successful access is indicated by the green LED, while an incorrect PIN causes the red LED to flash. Audible indication is also provided.

The KP75 screw connector version simplifies cabling by providing screw terminals rather than a fixed reader cable. It supports Paxton and EM tokens, while HID Prox compatibility is available where activation is carried out. Wiegand output is supported up to 50 bits and the reader is compatible with Paxton handsfree functionality.

The unit measures 143 x 75 x 16mm and operates from a 10V to 14V DC supply. Installation guidance specifies a current consumption of 120mA at 12V DC for this model. Proximity readers should not be installed on metal surfaces or too close to other proximity readers as this can affect read performance. The installation instructions indicate a minimum separation of 300mm between proximity readers

• 375-120

• Combined RFID proximity reader and keypad

• Screw connector version for simplified cabling

• Compatible with Net2 and Switch2 systems

• Supports Paxton and EM tokens

• HID Prox compatibility available with activation

• Supports token or token and PIN authentication

• Handsfree compatible

• Wiegand output up to 50 bits

• LED and audible access indication
