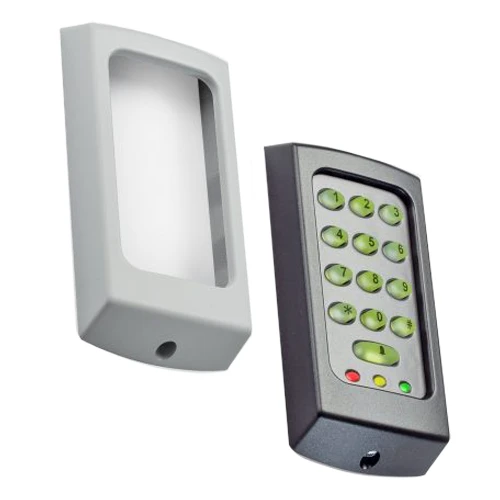

Paxton 371-210 Compact TOUCHLOCK Keypad - K75

The Paxton 371-210 Compact TOUCHLOCK Keypad K75 provides standalone code-based access control for a single door, combining the keypad and control electronics within one unit. As part of Paxton’s Compact range, it does not require a separate controller or PC for setup, making it suitable for straightforward restricted-access applications.

The keypad supports up to 50 user codes, with selectable code lengths from 4 to 8 digits. Codes can be configured for Normal, Toggle or Duress operation, while individual codes can also be deleted when the system is set for multiple-code operation. Door open time can be adjusted from 1 to 60 seconds, allowing the release period to be matched to the requirements of the door. A programmable 60-second lockout after 20 incorrect keystrokes is also available.

The K75 Compact can operate with both fail open and fail closed locking arrangements. It also provides an exit button input, 12V DC alarm/bell output and silent operation option. Visual status is provided by red, amber and green LEDs, with a flashing green LED indicating access granted and a flashing red LED indicating access denied. The standard keypad also incorporates a backlight.

Designed for fixed-cable installation, the unit operates from 11V to 14V DC and is rated IPX7 for outdoor use. The K75 housing measures 75mm wide by 143mm high by 16mm deep and is supplied with a 3 metre cable.

• 371-210

• Standalone keypad with integrated access control electronics

• Supports up to 50 user codes

• Adjustable 4 to 8 digit code length

• Normal, Toggle, Duress and Delete code functions

• Adjustable door open time from 1 to 60 seconds

• Supports fail open and fail closed locks

• Exit button input and 12V DC alarm/bell output

• Backlit keypad with LED access indication

• IPX7 fixed-cable construction for outdoor use
