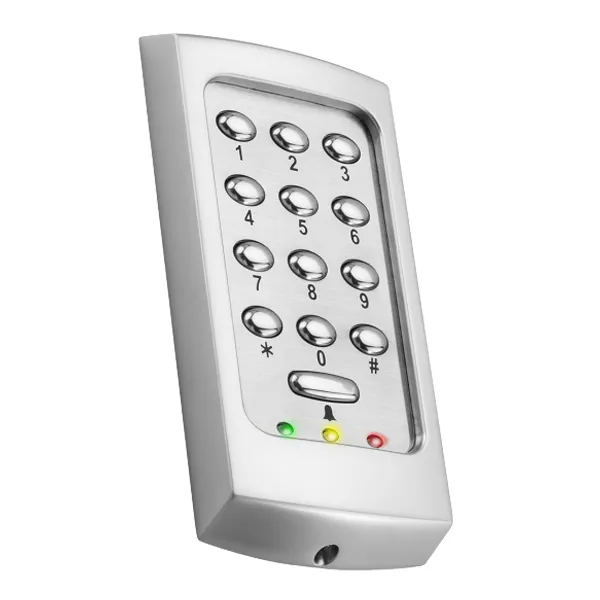

Paxton 352-210 Compact TOUCHLOCK Stainless Steel Keypad - K50

The Paxton 352-210 Compact TOUCHLOCK Stainless Steel Keypad K50 is a standalone access control keypad designed for PIN or code authentication.

Combining the keypad and control unit in one compact device, it does not require a PC for setup and is suitable for lower-security internal and external doors where controlled access is required.

The K50 supports up to 50 PINs and provides an adjustable door-open time from 1 to 60 seconds. An exit button input is included for convenient egress, while the bell button output provides additional functionality where required. Silent operation can also be selected.

Clear visual and audible feedback helps users understand the access decision. By default, all three LEDs are illuminated. When access is granted, the green LED flashes, while a denied entry causes the red LED to flash. An audible tone is emitted in both cases.

For integration with an electric locking device, the keypad provides a 12V DC lock output rated at 750mA at 12V. It operates from an 11V to 14V DC supply and has a current consumption of 170mA. The stainless steel K50 is rated IPX7 for moisture resistance and has medium vandal resistance, supporting use across a wide operating temperature range of -20°C to +55°C. Stored data is retained for more than 10 years during a total power loss.

• 352-210

• Standalone stainless steel PIN/code access keypad

• Supports up to 50 PINs

• Integrated keypad and control unit

• Adjustable 1 to 60 second door-open time

• Exit button input

• Bell button output

• Selectable silent operation

• 12V DC lock output rated at 750mA at 12V

• IPX7 moisture resistance
