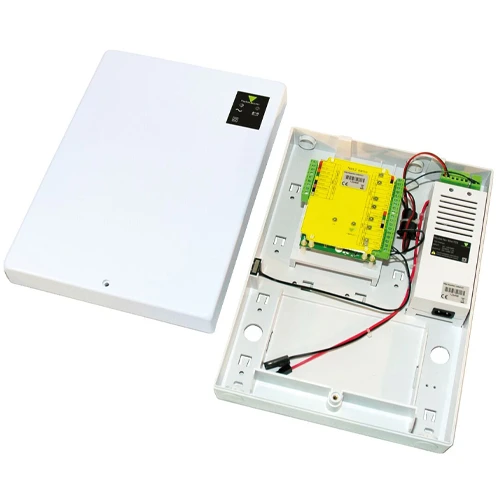

Paxton 654-772 Net2 Nano 1 Door Controller c/w PSU & Plastic Cabinet

System Specifications

Maximum total users/tokens

10,000

PIN length

4

Number of codes

50

Code length

4–8

Number of time zones

64

Number of access levels

250

Stored events

3800

Data retention during total power loss

60 days

Handsfree compatible

Yes – requires interface

Clock and data

Yes

26 bit Wiegand

Yes (Max 50 bits)

Custom Wiegand

Yes (Max 50 bits)

Silent operation

Yes

Door open time

1 sec – 999,999 secs

Electrical

Operating voltage

10V – 14V DC

Current consumption

120mA

Relay switchable voltage

24V DC

Relay switchable current

4A

Alarm output current

1A

Communication

TCP/IP

No

Wireless

Yes

RS485

No

Recommended wireless devices per Net2Air Bridge

10

Optimum wireless range

20m / 65ft

Encryption

AES 128bit

Hardware

Reader ports per ACU

1

Readers/keypads per ACU

2 – check current draw on individual reader

Total ACU reader port output current

500mA

3rd party reader support

Yes – if compatible

Reader cable type

Belden 9540 / 9538

Features

Input for exit button

Yes

Input for door contact

Yes

Alarm/bell output

Yes

12V DC lock output

1.1 Amp

Environment

Operating temperature

0°C to +55°C / +32°F to +131°F

Moisture resistance

No – if used externally, must be protected in a weatherproof housing

Vandal resistance

Low
