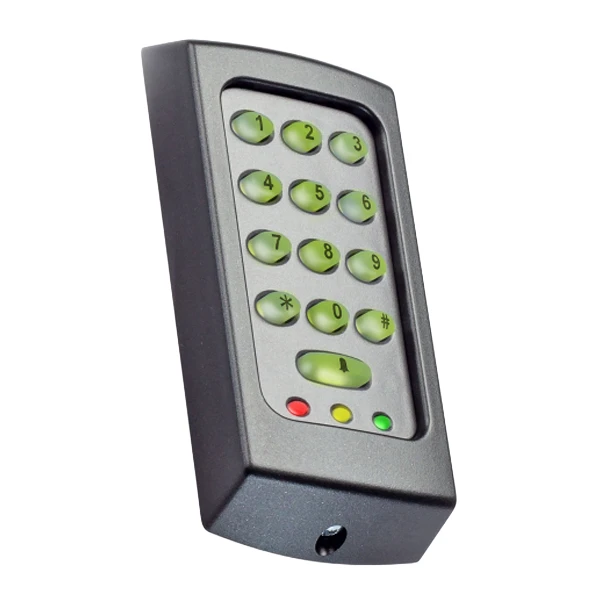

Paxton 351-210 Compact TOUCHLOCK Keypad - K50

The Paxton 351-210 Compact TOUCHLOCK Keypad K50 is a standalone PIN or code access control keypad designed for restricted-access doors. The keypad combines the control unit and reader in one compact device, so it does not require a PC for setup.

The K50 supports up to 50 PINs and allows the door-open time to be set between 1 and 60 seconds. An exit button input and bell button output are included, while silent operation can also be selected where audible indication is not required.

During normal operation, all three LEDs are illuminated. When access is granted, the green LED flashes. If access is denied, the red LED flashes. An audible tone is emitted in both cases, providing clear feedback to the user.

The keypad operates from an 11V to 14V DC supply and has a current consumption of 170mA. It also provides a 12V DC lock output rated at 750mA at 12V. Stored data is retained for more than 10 years during a total power loss.

Designed for internal and external door applications, the K50 has IPX7 moisture resistance, medium vandal resistance and an operating temperature range of -20°C to +55°C. It is supplied with a choice of black or white covers/bezels.

• 351-210

• Standalone PIN or code access control keypad

• Supports up to 50 PINs

• Integrated control unit and reader

• Adjustable 1 to 60 second door-open time

• Exit button input

• Bell button output

• Selectable silent operation

• 12V DC lock output rated at 750mA at 12V

• Supplied with black or white cover/bezel options
