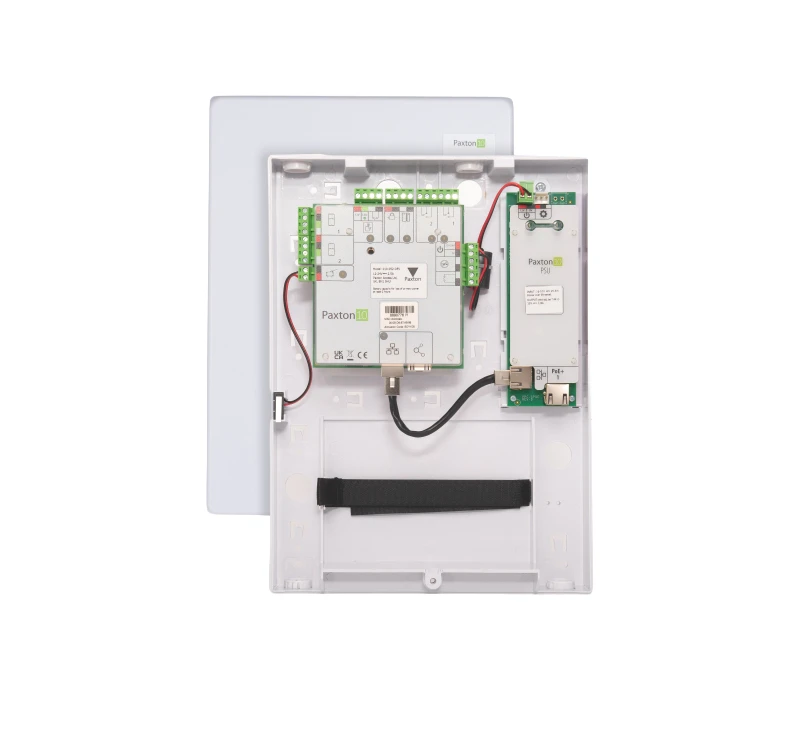

Paxton 10 Single Door Controller - POE (010-052)

Electrical

Power consumption (while battery charging, idle)

97mA / 5.08W

Power consumption (while battery charging, max)

108mA / 5.6W

Power consumption (while battery full, idle)

48mA / 2.53W

Power consumption (while battery full, max)

105mA / 5.5W

Backup battery

12V DC, 7 Ah (Optional)

Lock output

12V DC/1A or 24V DC/500mA

Relay rating

30V DC / 2A

RS485 connector output

24V DC, 750mA max (Paxton connectors only)

RS485 reader output

12V DC, 1A max (Paxton readers only)

Controller input voltage

12–24V DC (suppression at 28V)

PoE power supply (input)

36–57V DC, 25.5W (IEEE 802.3at Type 2)

PoE power supply (output)

12.8V DC, 1.8A

2A power supply (input)

100–240V AC, 50/60Hz, 1.2A

2A power supply (output)

13.8V DC, 2A

Communication

Data connection

IP

Network switch requirement

100Mbps

Hardware

Cable type

Ethernet (RJ45)

Door contact input

Yes

Voltage free digital input

1

Exit button input

Push to make

Tamper input

Yes

Relays

2

Maximum number of readers/keypads per door

2

Warranty

Paxton 5 year

Environment

Operating temperature

0°C – 45°C

IP rating

N/A

Mounting

Wall
