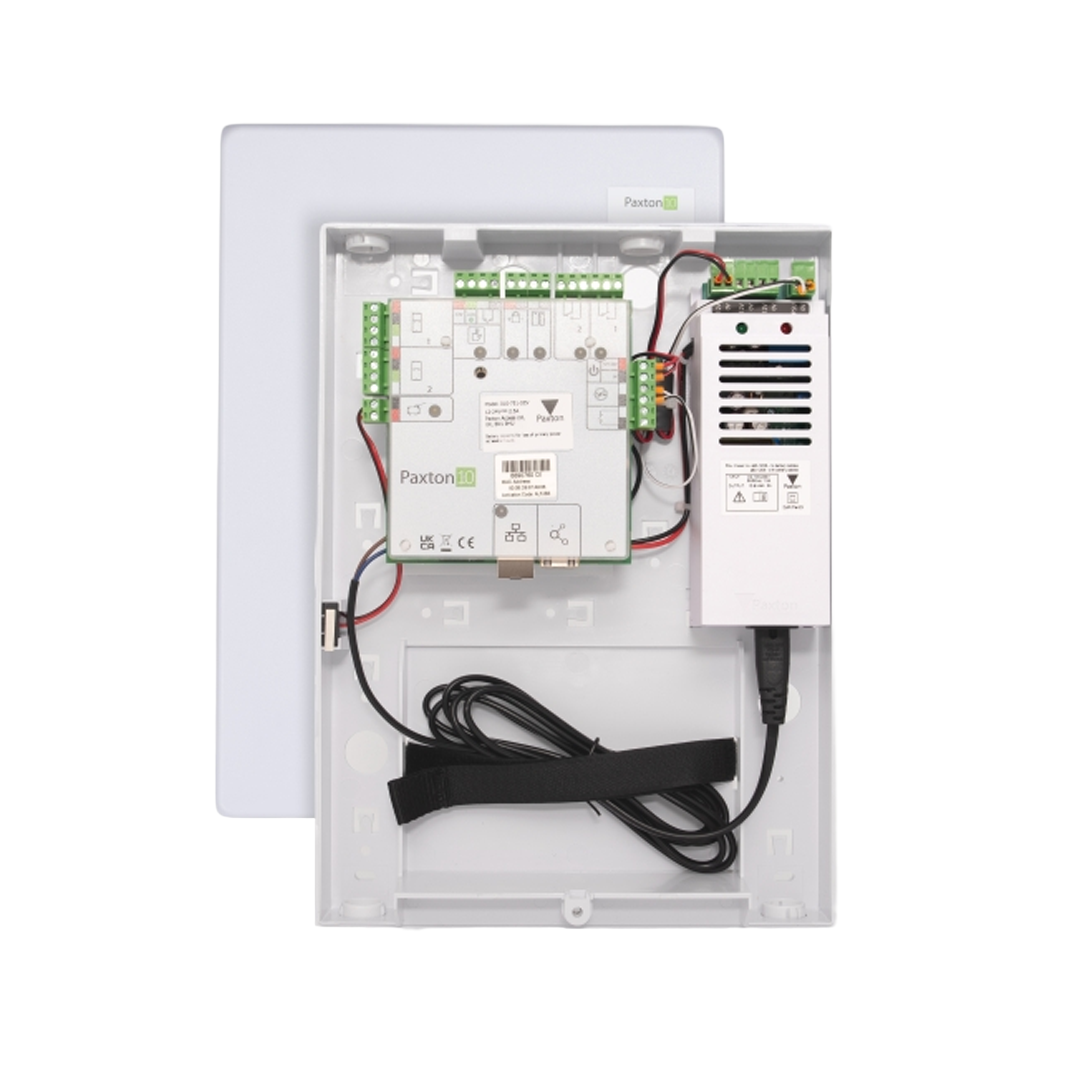

Paxton10 Door Controller (010-751)

The Paxton10 Door Controller (010-751) is a versatile, single-door access controller featuring a built-in 12 V 2 A power supply.

Designed for easy integration into existing network infrastructures, it operates on a distributed intelligence architecture, eliminating a single point of failure and supporting seamless scalability.

Equipped with two reader inputs, four functional inputs (tamper, 230 V fail, door contact, and Request-to-Exit), and a relay-controlled 12 V lock output, this controller delivers reliable, secure access control.

Ideal for demanding environments, it supports cascading with up to three wireless connectors for extended functionality.

• Controls a single door, with built-in 12 V 2 A PSU

• Distributed intelligence architecture—no central point of failure

• Two reader inputs and four signal inputs (tamper, 230 V fail, door contact, RTE)

• 12 V lock output (1 A) ideal for dry contact door mechanisms or barrier/gate control

• Supports cascaded expansion via connector port for up to three Paxton10 Wireless Connectors

• Flexible power options: 12 V DC, PoE+, or optional battery backup for uninterrupted operation

• Clear LED diagnostics and colour-coded wiring labels enable quick diagnostics and installation

• Autodiscovery on network—instantly visible in Paxton software once connected
