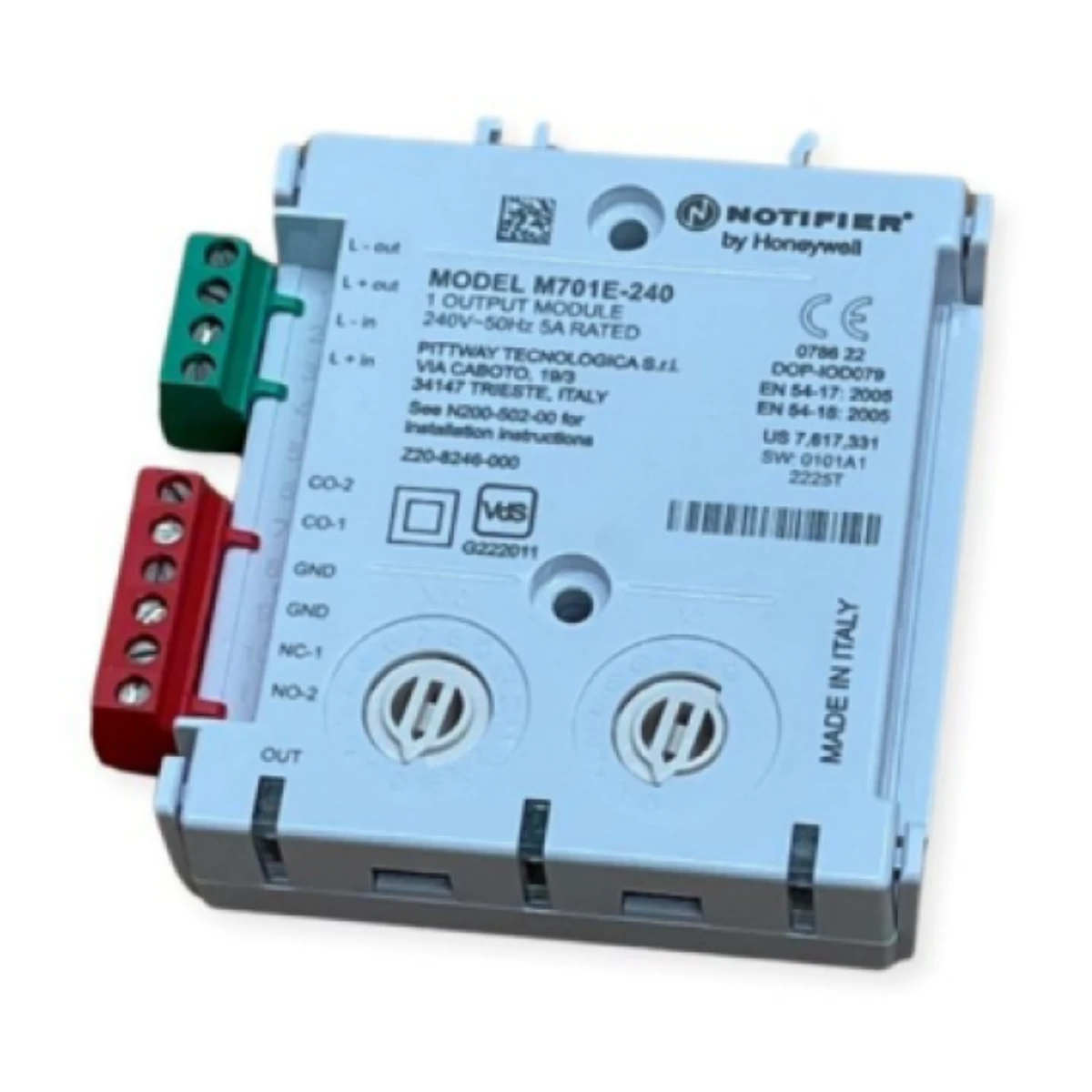

Notifier M701E-240 | Output Unit 240V (Requires M200E-SMB Box)

The Notifier M701E-240 Switching Output Control Module can be installed in a variety of ways: surface mounted, fitted into other equipment housings, or mounted on a DIN rail. Surface installation is carried out using the M200E-SMB surface-mount box, which accommodates a single module. This enclosure features a frosted plastic cover with viewing windows for the identification label, LEDs, and address switches.

The module also includes plug-in terminal connections for easy field wiring and is fully approved to CEA GEI 1-082 and CEA GEI 1-084. It additionally holds CPD certification to EN54-17 and EN54-18, and is approved by LPCB and VdS, ensuring compliance with stringent industry standards.

• Analogue addressable communications

• Built-in type identification automatically identifies these devices to the control panel (not M700X)

• Stable communication technique with high noise immunity

• Rotary DECADE 01 to 99 address switches (not M700X)

• Common mounting options including Surface Mount, Panel Mount and DIN Rail Mount.

• Tri-colour LED’s

• Powered directly by 2-wire loop. No additional power required

• Plug-in terminal connections for ease of field wiring

• Approved to CEA GEI 1-082 AND CEA GEI 1-084

• CPD approval to EN54-17 and EN54-18, LPCB and VdS
