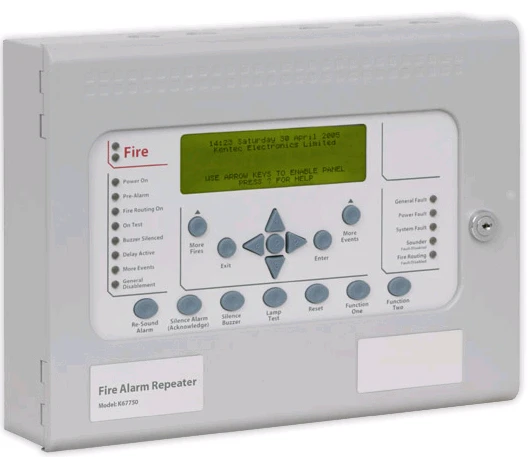

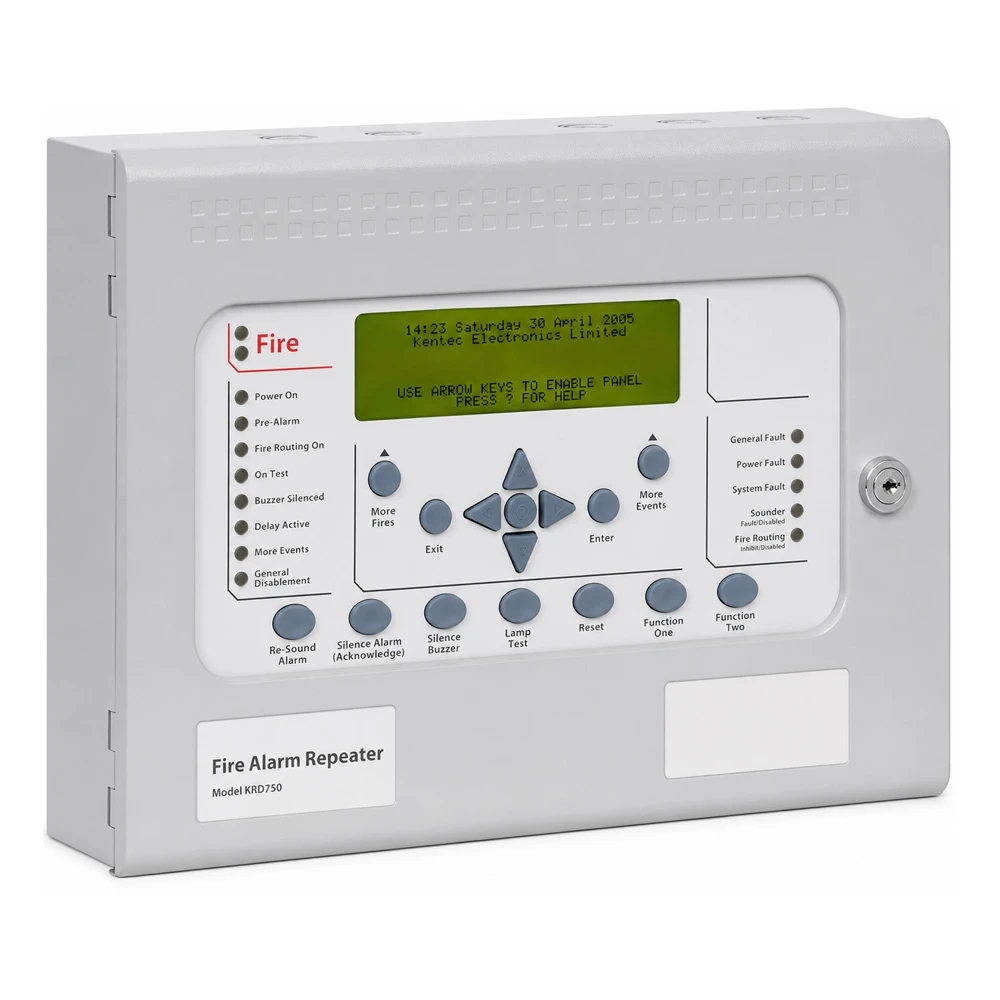

Kentec K67751M1 Syncro View Local LCD Repeater Panel (240Vac) w/ Keyswitch

The Kentec K67751M1 Syncro View is a 230V AC local LCD repeater panel with an enable keyswitch, designed to extend the controls and indications of a compatible Syncro AS fire alarm control panel to an additional location.

It provides a practical solution where a full fire alarm control panel is not required, but clear system information and local control access are still needed. The repeater mirrors the main panel’s indications and controls, allowing authorised users to view system events and operate compatible panel functions from a secondary position.

A large 240 x 64 pixel graphic LCD displays up to eight lines of 40 characters, supported by high-brightness LED indicators and an internal sounder. The fitted keyswitch helps restrict control access while still allowing the panel to be used as a clear local indication point.

Up to 15 annunciators can be connected to each Syncro AS panel using a dedicated two-core RS485 serial connection. The total cable length can extend up to 1,200 metres, supporting installations where repeater points are required across larger buildings or multiple access areas.

The K67751M1 is powered from a 230V AC mains supply and includes a 750mA power supply with provision for local battery backup using two 12V 1.9Ah sealed lead-acid batteries connected in series. Its removable electronics and compact steel enclosure help simplify installation and maintenance.

Please note: This item is available to order only. Contact us to confirm the current lead time before placing your order.

• Local LCD repeater for compatible Syncro AS control panels

• Supplied with an enable keyswitch

• 230V AC mains powered with local battery backup provision

• Large 240 x 64 pixel graphic LCD

• Displays eight lines of 40 characters

• Replicates Syncro panel controls and indications

• Supports up to 15 annunciators per Syncro AS panel

• Two-core RS485 serial connection

• Up to 1,200m total serial cable length

• Removable electronics for easier installation
