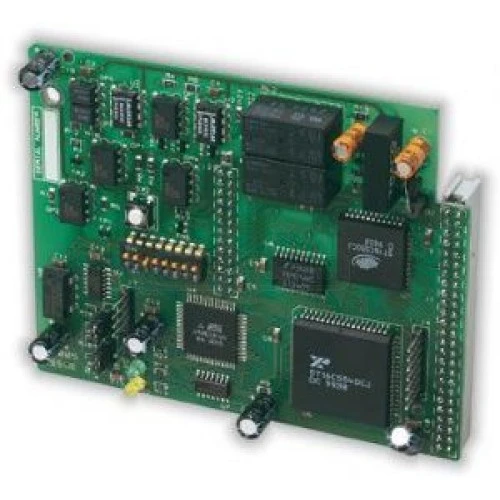

Kentec K586H Syncro - Addressable Loop 2 Extension Card (Hochiki)

The Kentec K586H Syncro addressable loop 2 extension card can be used to enable the second loop on Kentec Syncro AS single loop addressable fire alarm panels.

• Kentec K67000M1

• 24vdc powered

• Requires power to be taken from fire alarm panel or seperate power supply

• 2 wire interconnection for data

• Network card not required

• Large liquid crystal display (240 x 64 pixels)

• High brightness LED indications

• Internal sounder

• Replicates all Syncro panel controls

• Simple, two-wire serial connection

• Removable electronics for easy installation

Product Specification

• Construction: 1.2mm mild sheet steel

• IP Rating: IP30

• Finish: Epoxy powder coated

• Weight: 4kg (standard panel)

• Display: 8 lines of 40 characters graphic LCD

• Cable entry: 5 x 20mm knockouts in top of box and 5 in rear

• Mains supply fuse: 2 Amp, 20mm

• Power supply rating: 28V 750mA total (including battery charging)

• Battery type: Two 12 Volt 1.9Ah sealed lead acid in series

• Battery charge voltage: 27.6VDC nominal

• Battery charge current: 200mA maximum

• Battery fuse: 200mA, 20mm, glass

• Maximum current draw from batteries: 95mA

• Quiescent current of panel in mains fail: 0.03 Amps

• Serial data connection: 2 core RS485 (Up to 1200 metres total cable length)

• Maximum terminal capacity: 2.5mm
