Vimpex Identifire Pro Sounder Wall VAD

Name: Vimpex Identifire Pro Sounder Wall VAD
Brand: Vimpex
SKU: FDS002/122
Price: 50.58 GBP
Availability: InStock

Code: FDS002/122

£50.58

INC VAT

Code: FDS002/122

Mount Flash

In stock
Typically dispatched in 3-5 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

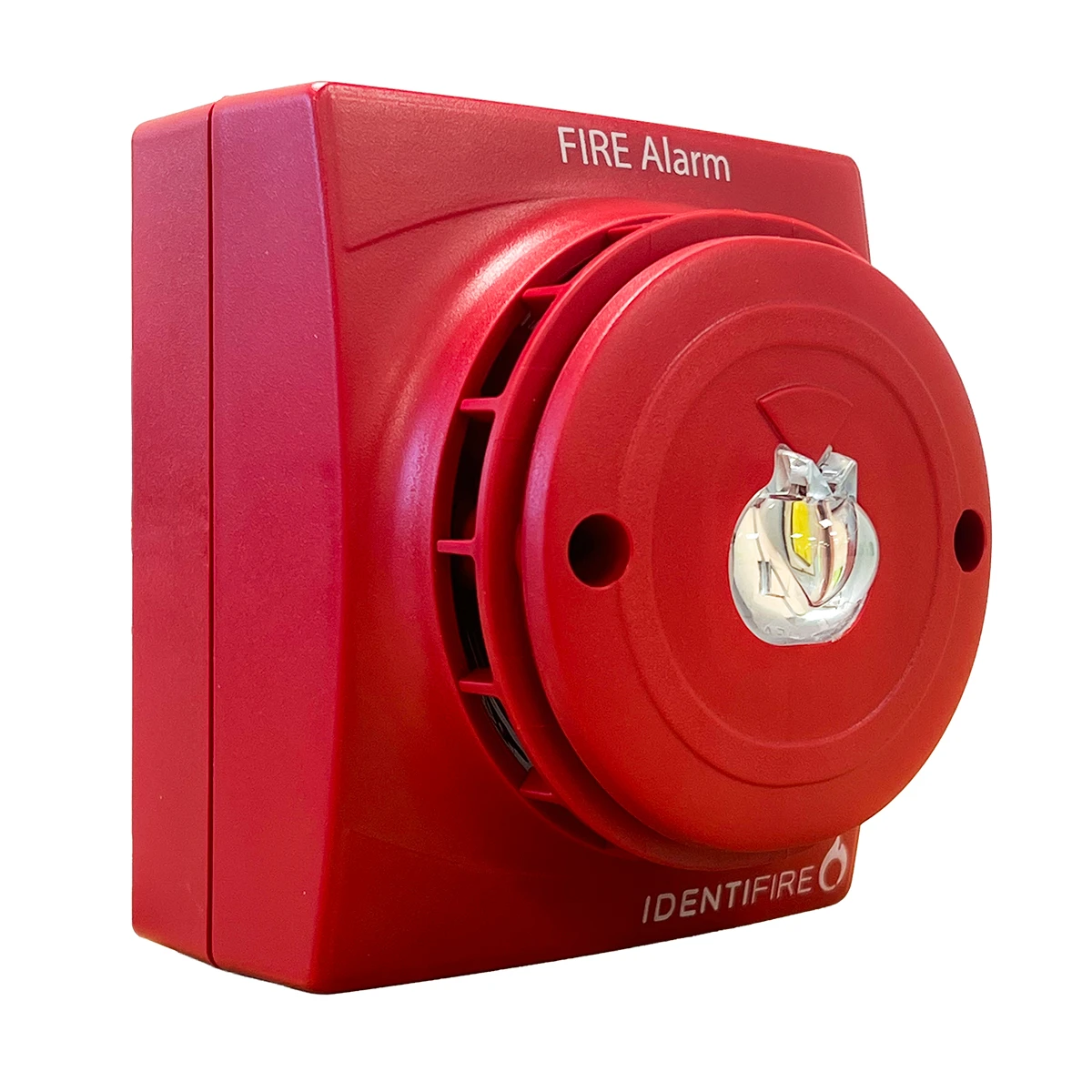

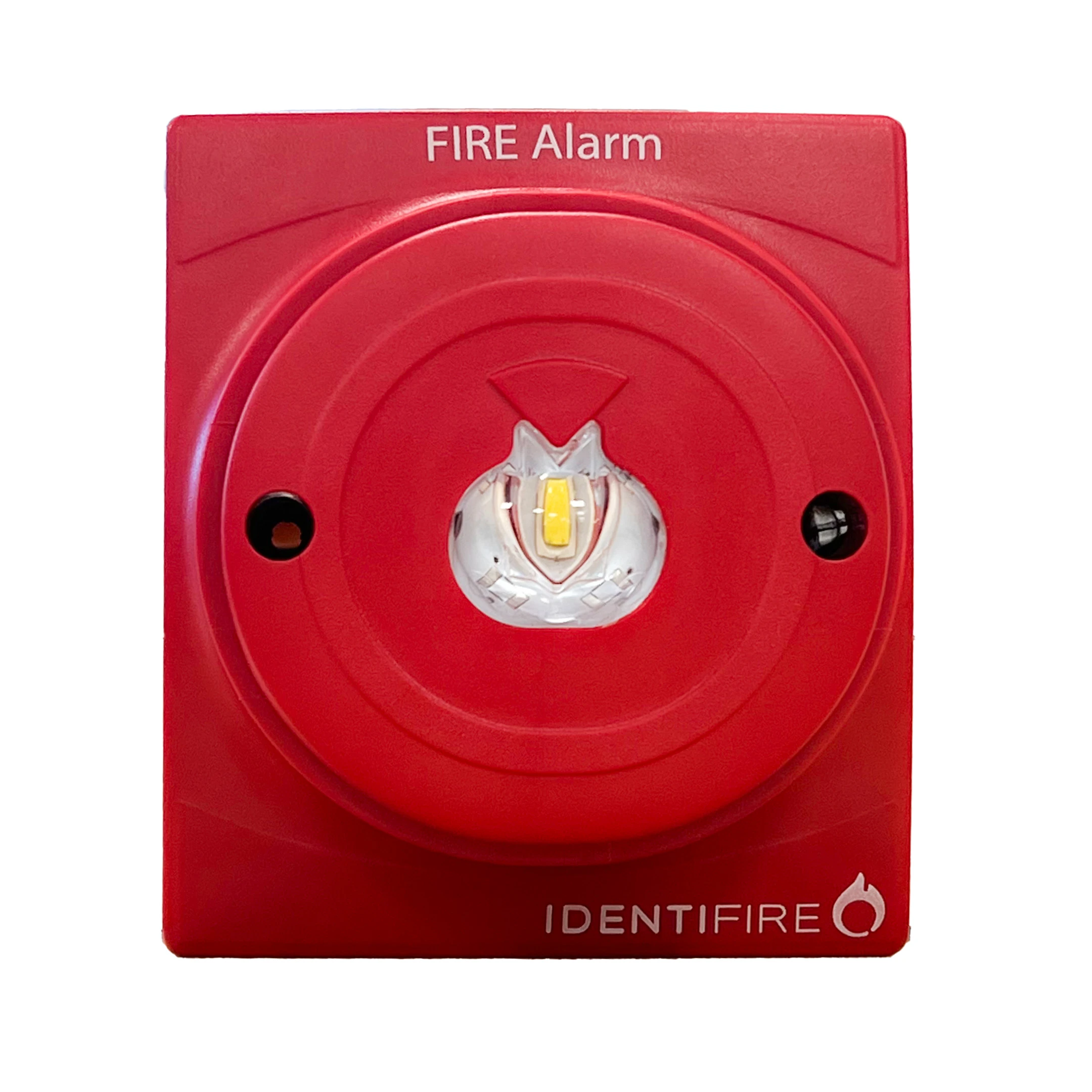

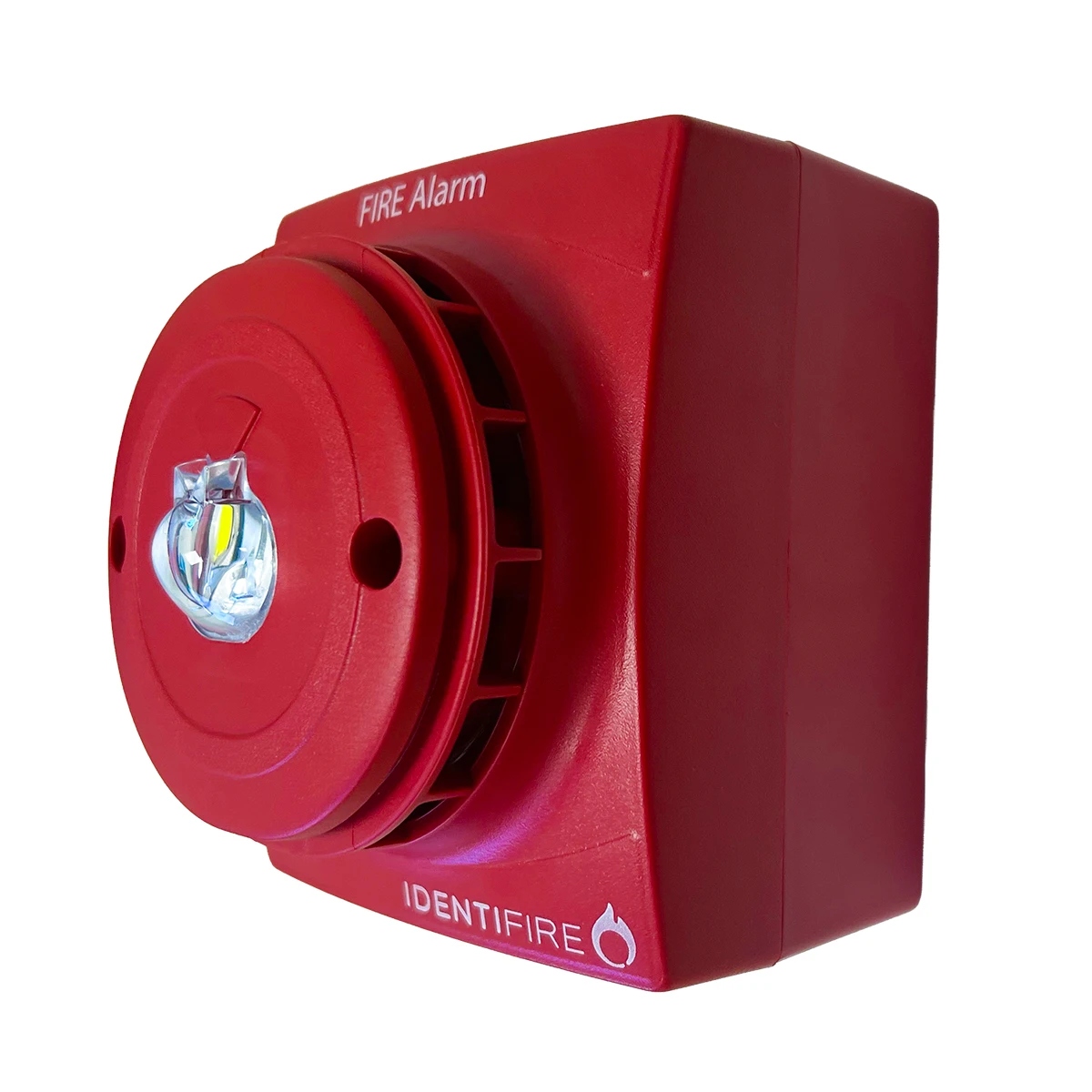

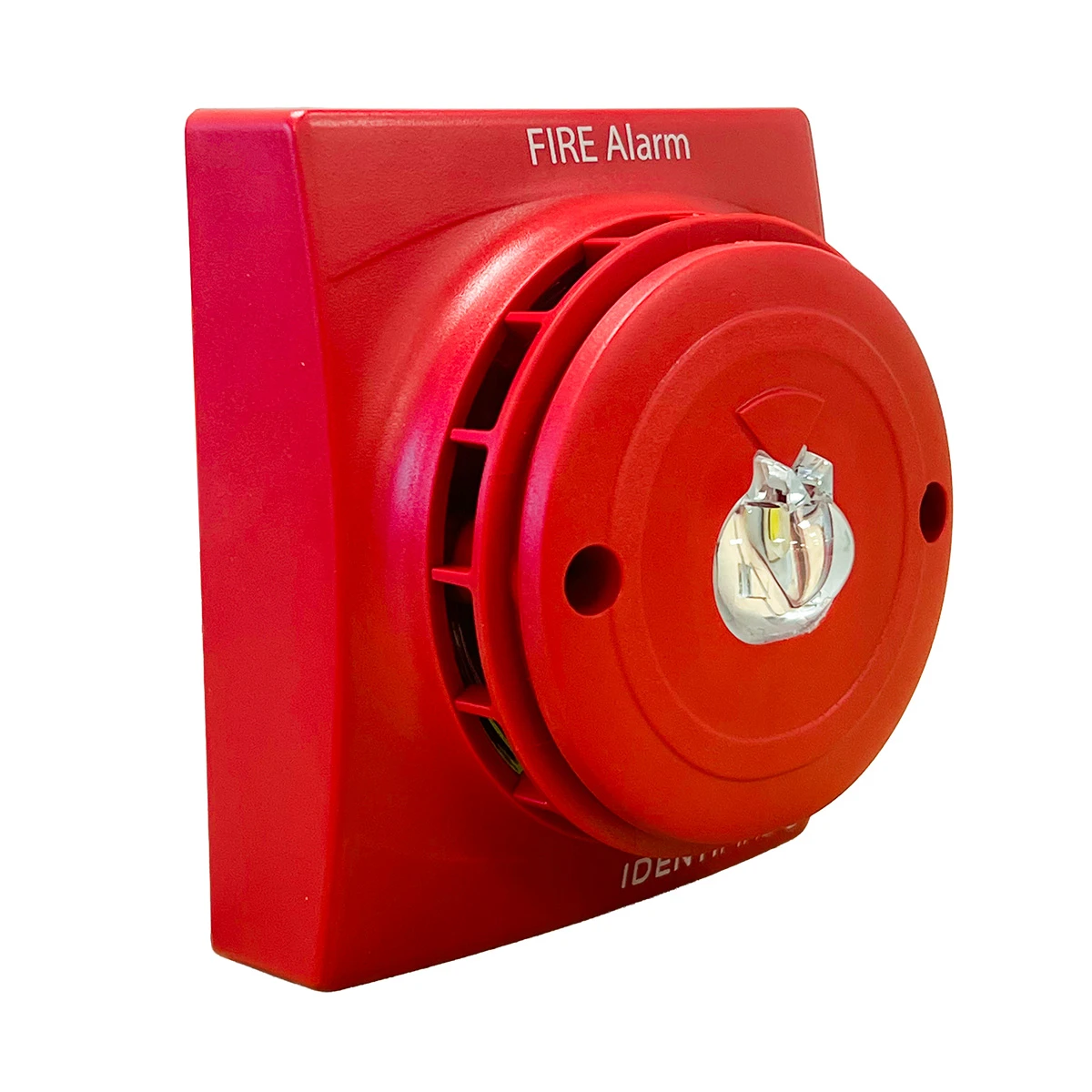

The Identifire Pro Sounder Wall VAD is a combined audible and visual alarm device designed for compliance, performance, and flexibility.

This EN 54-3 and EN 54-23 certified unit helps ensure your fire alarm system meets the latest Building Research Establishment (BRE) best practice guidelines for VAD use, colour selection and placement.

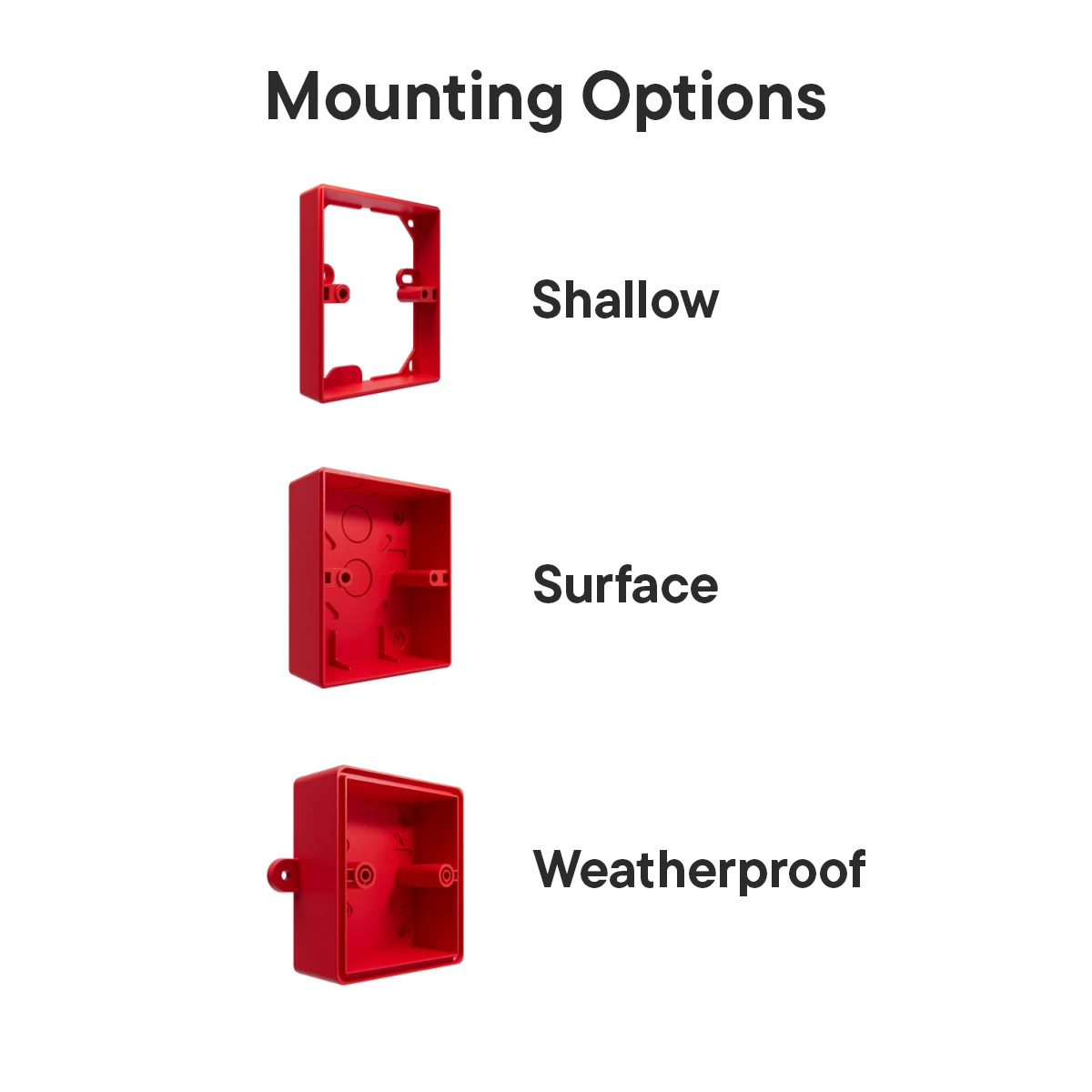

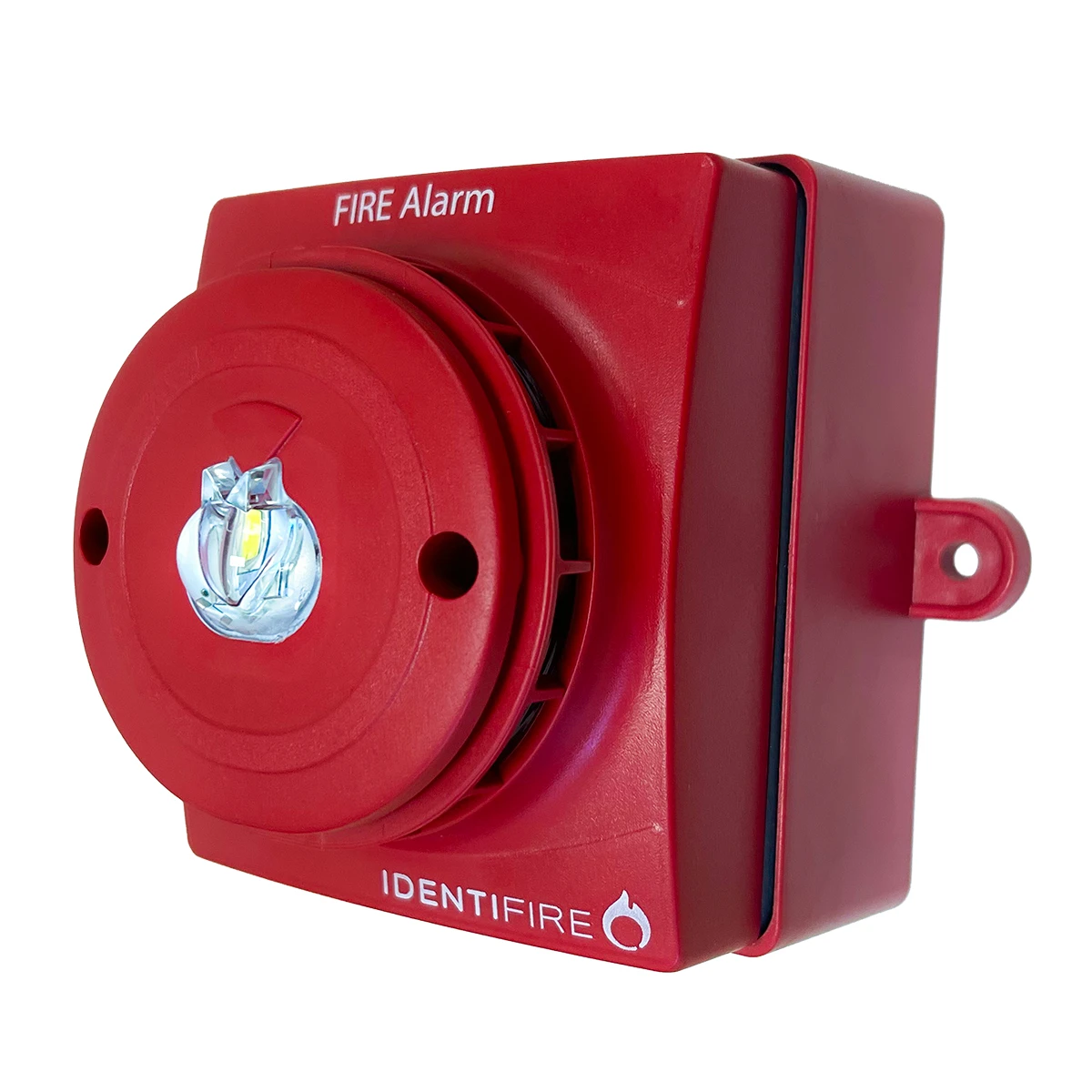

With surface, flush, shallow, weatherproof mounting options, red or white lenses, and adjustable flash rate and brightness, the device can be tailored to suit a wide range of installation environments.

Whether for high-risk areas or standard applications, the Identifire Pro Sounder Wall VAD offers powerful, compliant signalling in a compact, durable housing.

EN54-23 approved wall-mounted visual alarm device, UL approved and CPR compliant
Operates on 18–30V DC with low current draw of 35mA (1Hz) or 26mA (0.5Hz)

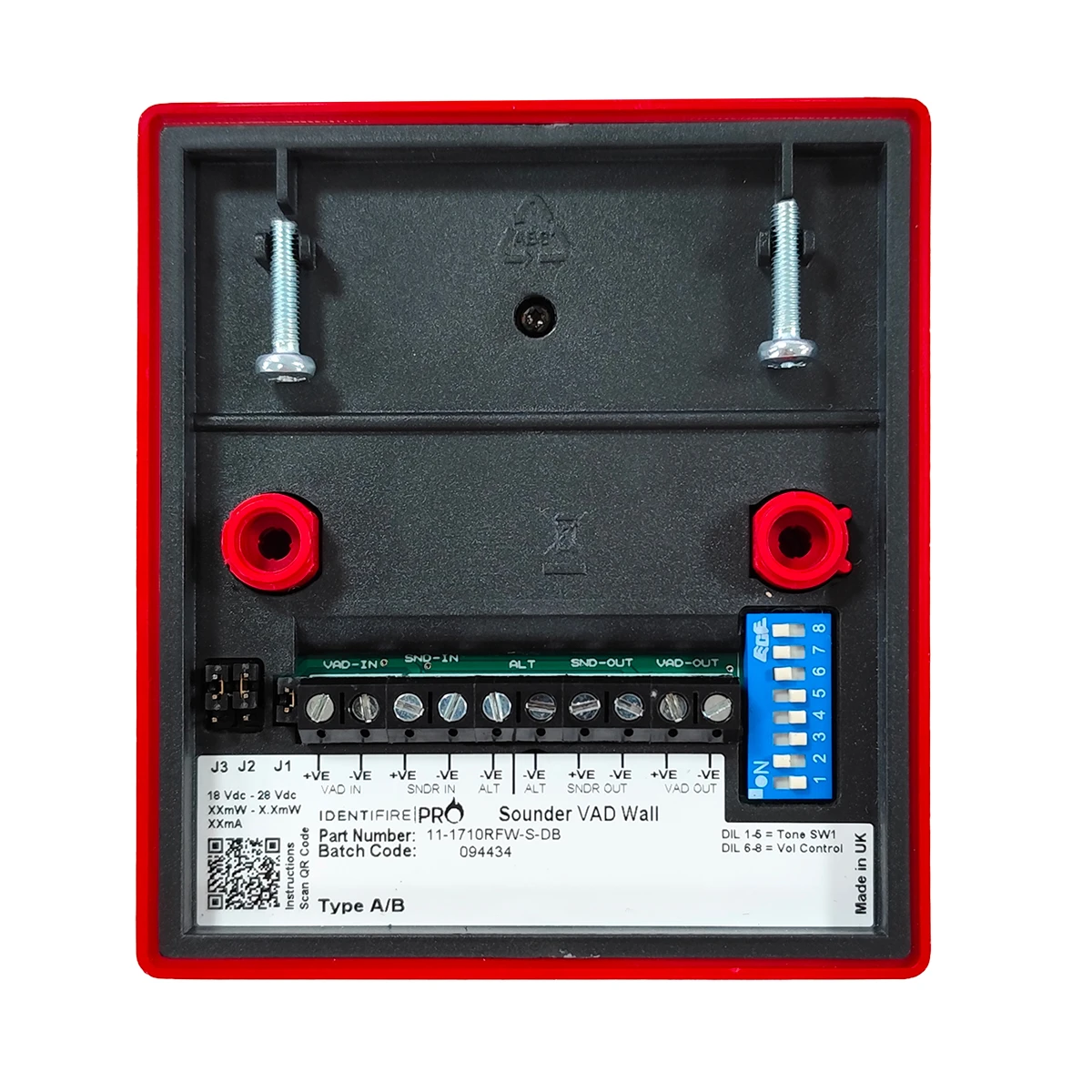

1Hz or 0.5Hz flash rate selectable via jumper for system flexibility
Available in red or white flash
Suitable for indoor and outdoor use with fire-rated ABS housing
Low-profile design ideal for modern commercial installations

Specification	Details
Operating Voltage	18–30V dc (EN54:3/23 @ 18–28Vdc)
Current Consumption (Sounder)	See information table on Page 2
Current Consumption (VAD)	35mA (1Hz) / 26mA (0.5Hz)
Sound Output (dB(A) @ 1m)	See information table on Page 2
Tones Available	See information table on Page 2
VAD Rating (@1 Hz)	Wall = Red: W-W-X-X / White: W-W-X-XCeiling = Red: C-X-X-X / White: C-X-X-X
Weight	182g (Flush) / 209g (Pattress/Surface) / 284g (W/P)
Housing Material	Fire rated ABS
Operating Temperature	-10°C to +50°C
Body Colour	Red
Lens Colour	Red / White
Environmental Category	Type A (Indoor) / Type B (IP67*)
Volume Control	1. Max2. High (-6 dB(A))3. Medium (-12 dB(A))4. Low (-18 dB(A))

Identifire Pro Sounder Wall VAD Datasheet	Click here to download
Identifire Pro Sounder Wall VAD Brochure	Click here to download

Overview

Features

Technical Data

Specification	Details
Operating Voltage	18–30V dc (EN54:3/23 @ 18–28Vdc)
Current Consumption (Sounder)	See information table on Page 2
Current Consumption (VAD)	35mA (1Hz) / 26mA (0.5Hz)
Sound Output (dB(A) @ 1m)	See information table on Page 2
Tones Available	See information table on Page 2
VAD Rating (@1 Hz)	Wall = Red: W-W-X-X / White: W-W-X-XCeiling = Red: C-X-X-X / White: C-X-X-X
Weight	182g (Flush) / 209g (Pattress/Surface) / 284g (W/P)
Housing Material	Fire rated ABS
Operating Temperature	-10°C to +50°C
Body Colour	Red
Lens Colour	Red / White
Environmental Category	Type A (Indoor) / Type B (IP67*)
Volume Control	1. Max2. High (-6 dB(A))3. Medium (-12 dB(A))4. Low (-18 dB(A))
