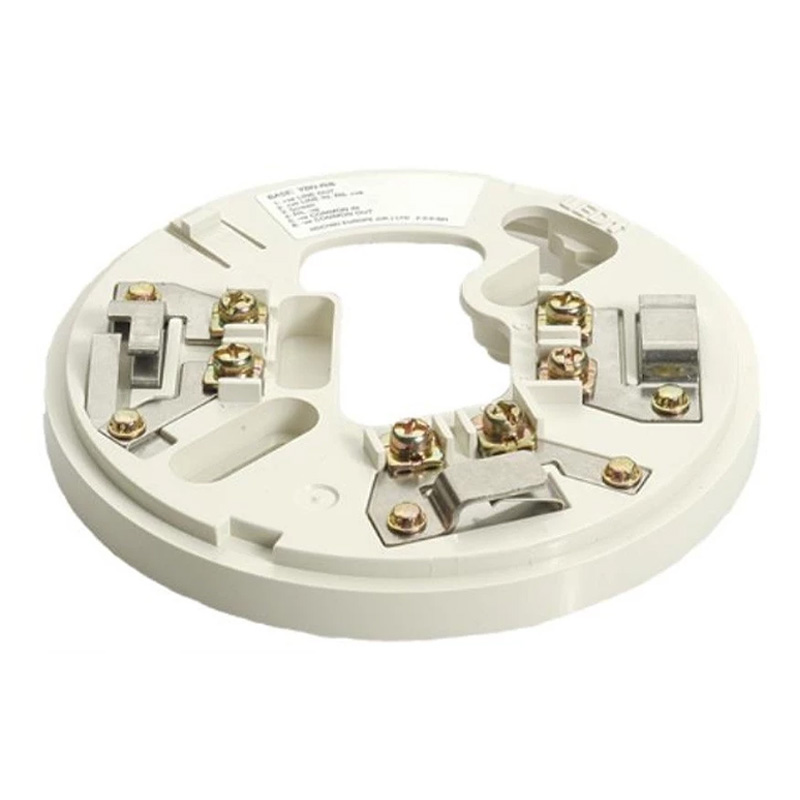

Hochiki YBN-R/6M Marine Standard Ivory Mounting Base

The Hochiki YBN-R/6M Marine Standard Ivory Mounting Base is a conventional detector mounting base designed for use with the Hochiki CDX range of marine approved detectors.

Approved for marine applications by GL, this base is suitable for fire detection systems installed in marine environments where approved compatible devices are required.

The YBN-R/6M is supplied with square cable clamps to support secure and reliable cable termination and accepts 2.5mm cables.

The base does not provide line continuity during detector removal, so where call points are used on the same zone, they should be wired onto the zone first.

An integrated third terminal is provided for remote indicator output, supporting installations where remote alarm indication is required.

• Conventional detector mounting base for Hochiki CDX marine approved detectors

• Approved for marine applications by GL

• GL Type approval

• Approved to MED by GL

• Integral remote indicator output

• Low-profile 8mm design

• Electronics-free construction

• Square cable clamps for secure termination

• Accepts 2.5mm cables

• Bayonet slot with low detector insertion force
