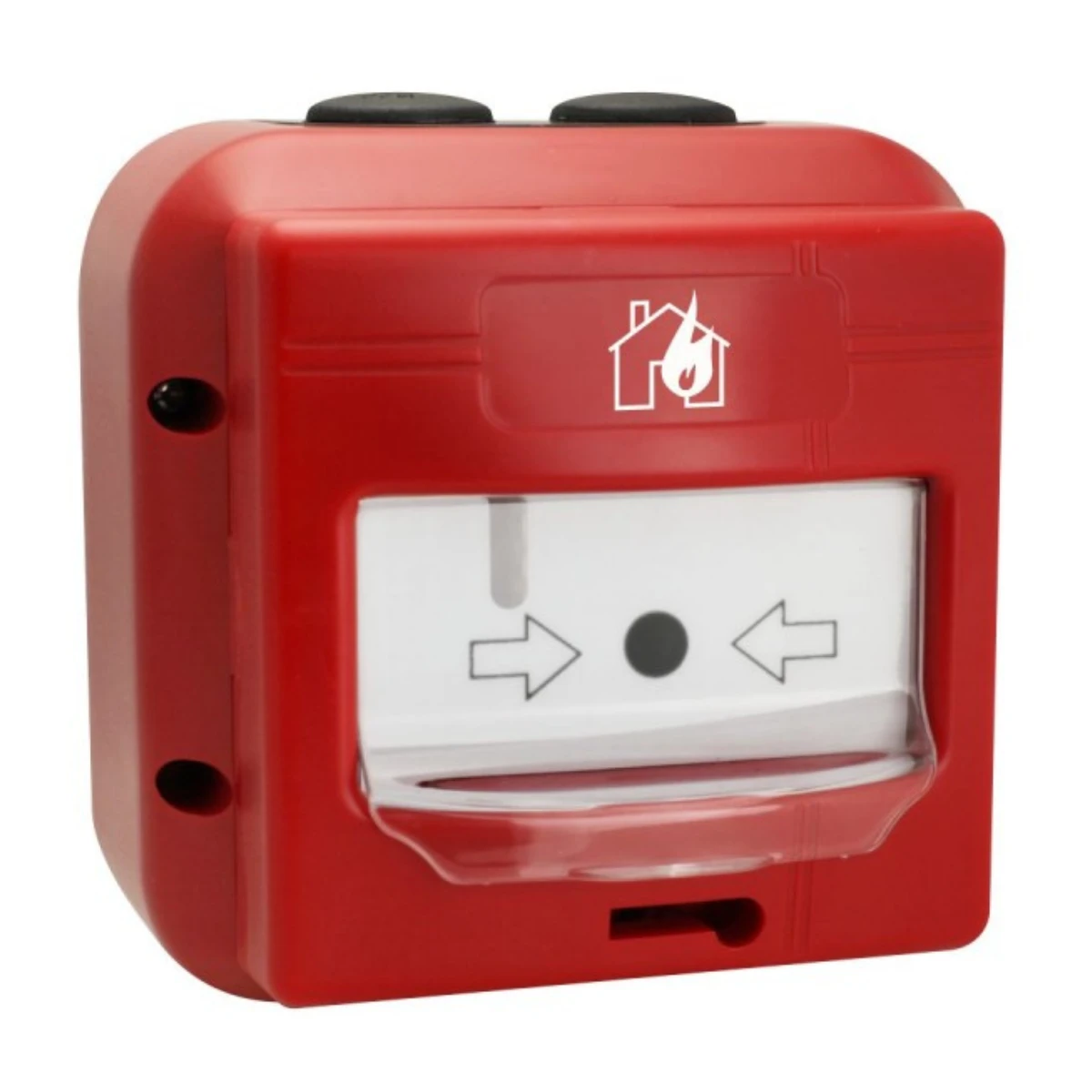

Global Fire GFE-MCPE-AI-IP67 GFE Addressable Manual Call Point with Isolator - IP67 - with Built-in Hinged Cover

The GFE-MCPE-AI-IP67 is an analogue addressable manual call point designed and manufactured to EN54-11 standards, fully compatible with all GFE addressable control panels and especially suited for outdoor use.

Its enhanced communication system allows a typical alarm response time of approximately one second, depending on the number of call points on the loop. Each unit’s individual address, up to 125, is set via an eight-way DIL switch. A loop short-circuit isolator is included as standard. The bi-colour LED flashes green when interrogated by the control panel and illuminates red when in alarm.

Engineered for harsh and challenging environments, the GFE-MCPE-AI-IP67 combines the familiar tactile feel of breaking glass with the safety and convenience of a glass-free, resettable operating element. Once activated, a warning flag drops into view, clearly indicating the operated call point. The unit can then be reset using a key.

This robust manual call point is ideal for outdoor and demanding applications, including oil rigs, ships, factories, and wash-down areas where broken glass poses a hazard. It provides a reliable and user-friendly solution for GFE’s addressable fire alarm systems.

• Analogue Addressable Manual Call Point

• Compatible with all GFE Addressable Control panels

• When in alarm, typical response time is approx. 1 second (depending on no. of call points connected to device loop)

• LED flashes green when interrogated by control panel

• LED flashes red when in alarm (commanded by the control panel)

• Up to 125 individual addresses (set via 8-way DIL switch)

• Mimics feel of breaking glass

• Offers benefits and safety of a glass-free resettable operating element

• IP67 weatherproof rating

• Reset using the supplied key

• Incorporates loop isolator

• Supplied with protective hinged cover
