FireSmart Conventional Fire Alarm Panel | 2, 4, or 8 Zone

Name: FireSmart Conventional Fire Alarm Panel | 2, 4, or 8 Zone
Brand: Firesmart
SKU: FDS120/001
Price: 163.61999999999998 GBP
Availability: InStock

Code: FDS120/001

£163.62

INC VAT

Code: FDS120/001

Zone

In stock
Typically dispatched in 1-2 working days

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (+£550)

Have a question about this? Click here

Overview Features Technical Data FAQs

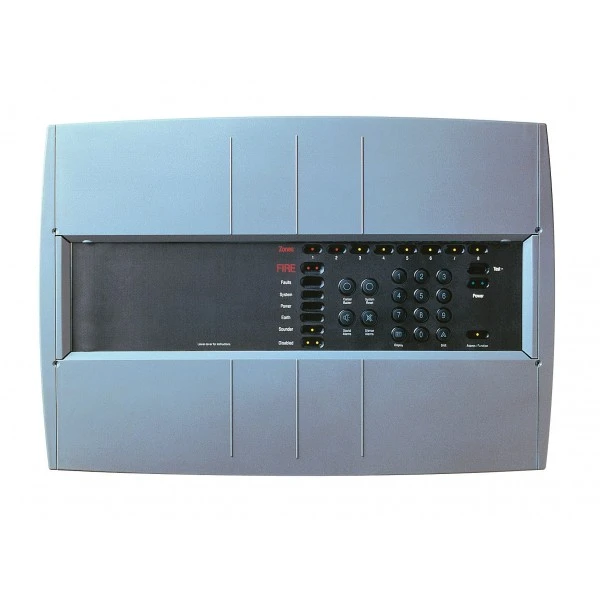

The FireSmart Conventional Fire Alarm Panel is a high-performance solution from a trusted manufacturer, designed for buildings requiring reliable multi-zone fire protection.

Certified by the LPCB to the latest EN54 Parts 2 and 4 standards, the FireSmart Conventional Fire Alarm Panel provides reliable protection with a range of installer and user-friendly features at a competitive price.

The panel includes a clear, easy-to-use interface with colour-coded controls and a combined keypad and key switch for secure operation.

Available in 2, 4, or 8 conventional detection zone models, each panel features 4 sounder circuits, class change and alert inputs, and on-board fire and fault relays. The unit is supplied in a robust plastic enclosure suitable for both surface and flush mounting.

It also offers advanced engineering options such as programmable zone delays, coincidence and non-latching zone modes, along with full test and fault diagnostics.

Looking for a ready-to-install system? Explore our Conventional Fire Alarm Kits.

LPCB certified to the latest versions of EN54 parts 2 & 42
2, 4, or 8 Zone Circuits
25 detectors or 32 detectors and manual call points per zone.
4 conventional sounder circuits
Two On-Board Relays (Fire And Fault)
Integral 1.5A EN54-4/A2 Compliant Switch Mode PSU
'Class Change' And Alert Inputs
Low Quiescent Current
Multiple Indicators
Space For 2 x 12V 3.2Ah SLA Batteries

Specification	2 Zone Panel	4 Zone Panel	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz	230V 50/60Hz	230V 50/60Hz
Mains Rated Current	350mA max	350mA max	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max	19V–28.5V (27V nominal), Ripple 7V max	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)	1.5A @ 230Vac (ImaxA eq 146mA)	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)	25mA (mains failed, internal sounder active)	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	2 (Max. 500m per circuit)	4 (Max. 500m per circuit)	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω	470 to 680Ω	470 to 680Ω
Max Devices per Zone	25 detectors or 32 detectors/call points combined	Same	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)	4 (Max. 500m per circuit)	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

What devices is the FireSmart panel compatible with?

The FireSmart Conventional Fire Alarm Panel is fully compatible with standard conventional detectors, sounders, and call points. It is commonly paired with Apollo’s reliable Series 65 detector range.

Does the panel include a built-in power supply and battery backup?

Yes. Each panel includes an integrated power supply and supports battery standby for up to 72 hours based on standard load conditions. Batteries must be purchased separately.

Is this system certified to current UK fire standards?

Absolutely. The FireSmart panel is certified to EN54 Parts 2 and 4, meeting regulatory requirements for control panels and power supplies.

Overview

Features

Technical Data

Specification	2 Zone Panel	4 Zone Panel	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz	230V 50/60Hz	230V 50/60Hz
Mains Rated Current	350mA max	350mA max	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max	19V–28.5V (27V nominal), Ripple 7V max	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)	1.5A @ 230Vac (ImaxA eq 146mA)	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)	25mA (mains failed, internal sounder active)	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	2 (Max. 500m per circuit)	4 (Max. 500m per circuit)	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω	470 to 680Ω	470 to 680Ω
Max Devices per Zone	25 detectors or 32 detectors/call points combined	Same	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)	4 (Max. 500m per circuit)	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max
