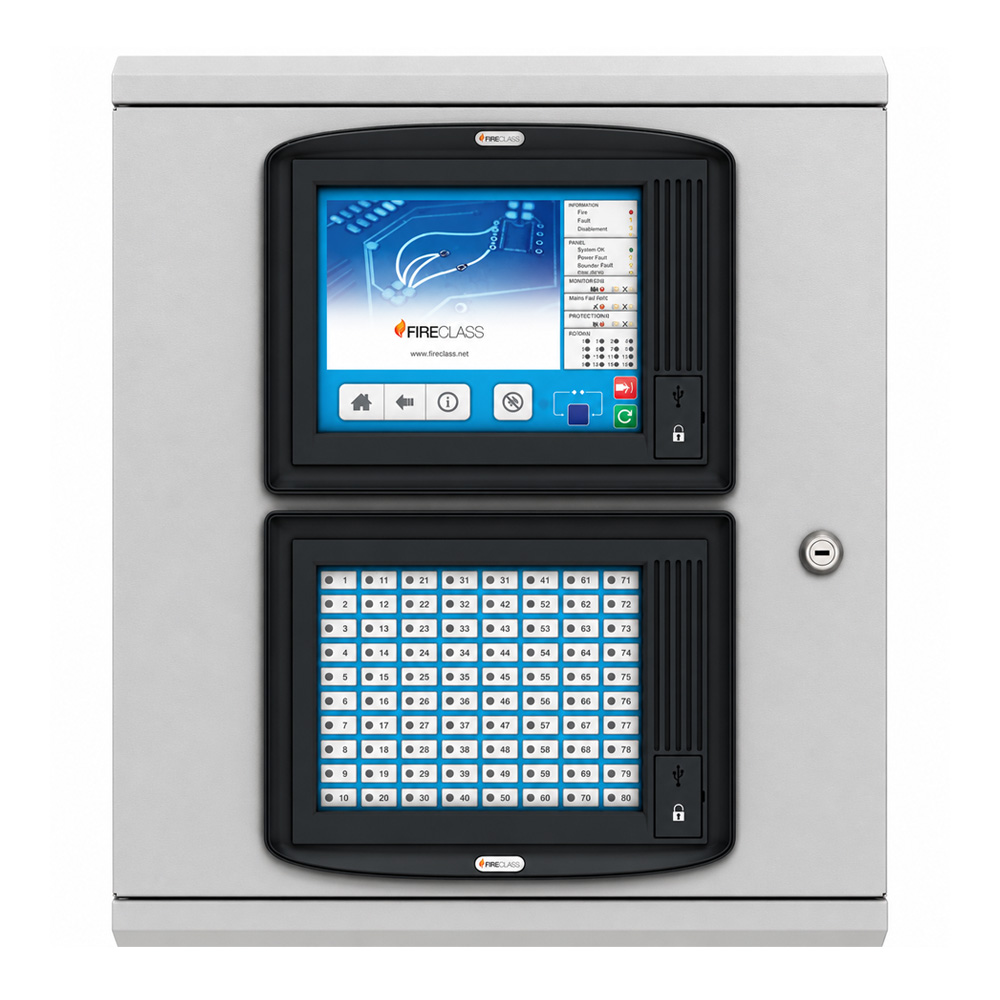

FireClass FC8AS FC 80 Zone AC Repeater

Name: FireClass FC8AS FC 80 Zone AC Repeater
Brand: Fireclass
Availability: InStock

Code: FDS002/956

Call to place order

Code: FDS002/956

80 zone AC repeater for FireClass FC700 systems
Compatible with FireClass FC700 control panels
8.4” TFT colour touchscreen display

Have a question about this? Click here

Overview Features Technical Data

The FireClass 557.200.956FC FC8AS is an 80 zone AC repeater designed for use with FireClass FC700 series fire alarm control panels.

Built to complement the FC708D control panel range, the repeater provides a compact and architecturally attractive remote interface for monitoring and controlling compatible FireClass fire detection systems.

The FC8AS features an advanced 8.4” TFT colour touchscreen user interface designed specifically for fire alarm operation, offering intuitive controls and clear system status indication.

The repeater supports operation with or without gloves and includes RFID keyless log-on functionality with configurable access levels.

Connected via Ethernet, the repeater provides full user control and functionality when interfacing with the control panel and can be used across local networks, WiFi bridges or VPN-connected systems.

Up to seven touchscreen repeaters can be connected to a single FC700 control panel, allowing flexible system expansion across larger sites.

The unit also supports extensive event logging, on-screen help functions and user-configurable site maps to simplify operation, diagnostics and maintenance.

80 zone AC repeater for FireClass FC700 systems
Compatible with FireClass FC700 control panels
8.4” TFT colour touchscreen display
Fully programmable multilingual user interface
RFID keyless log-on support
Touch-sensitive status LEDs
Ethernet network connection
Supports up to 7 repeaters per control panel
User-configurable on-screen site maps
Programmable graphical quiescent display
Extensive 10,000 event log with dynamic filtering
On-screen help and operator instructions
Comprehensive point management and disable functions

Specification	Details
Product type	Fire alarm repeater
Model	FC8AS
Zone capacity	80 zones
Power type	AC powered
Display	8.4” TFT colour touchscreen
User interface	Multilingual touchscreen
Authentication	RFID keyless log-on
Networking	Ethernet
Maximum repeaters per panel	7
Event log capacity	10,000 events

Overview

Features

Technical Data

Specification	Details
Product type	Fire alarm repeater
Model	FC8AS
Zone capacity	80 zones
Power type	AC powered
Display	8.4” TFT colour touchscreen
User interface	Multilingual touchscreen
Authentication	RFID keyless log-on
Networking	Ethernet
Maximum repeaters per panel	7
Event log capacity	10,000 events
