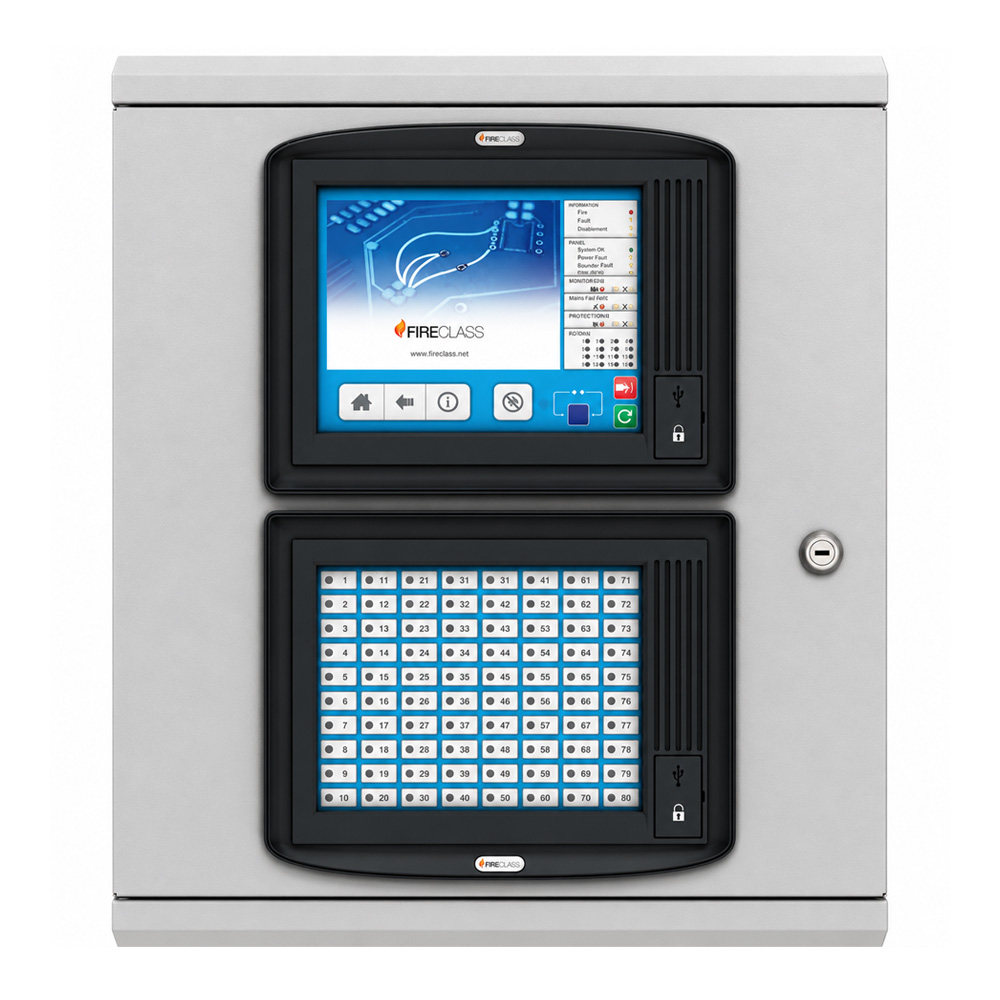

FireClass FC708D 4-8 Loop Fire Alarm Panel

The FireClass FC708D is a touchscreen addressable fire alarm control panel designed to provide flexible system configuration, scalable loop architecture and intuitive operation for medium to large fire alarm installations.

Supporting expandable 4 to 8 loop configurations, the panel features an advanced 8.4” TFT colour touchscreen interface engineered specifically for fire alarm management. The user interface is designed for simple operation, including use while wearing gloves, and supports keyless log-on using RFID cards.

The FireClass loop protocol is designed for demanding environments and allows existing cabling to be reused during upgrades, helping reduce installation costs and minimise disruption.

Each addressable loop can be configured as either one high power (HP) loop or two shared power (SP) loops, providing greater flexibility when allocating loop power and device addresses across the system.

The FC708D supports up to 1000 addresses and can be networked with additional compatible panels, making it suitable for a wide range of commercial and complex site applications.

Advanced diagnostic and management features include programmable graphical displays, touch-sensitive status LEDs, extensive event logging and on-screen help functions to assist both engineers and end users.

• Expandable 4–8 loop addressable fire alarm control panel

• 8.4” TFT colour touchscreen display

• Fully programmable multilingual user interface

• RFID keyless log-on support

• Touch-sensitive status LEDs

• Configurable high power (HP) and shared power (SP) loop architecture

• Supports up to 1000 addresses

• Networkable panel system

• On-screen help and operator instructions

• User-configurable on-screen site maps

• Extensive 10,000 event log with dynamic filtering

• Programmable graphical quiescent display

• Comprehensive point management and disable functions

• Designed for flexible system expansion

• Compatible with existing cable infrastructure for upgrade projects
