Evacuator Synergy+ Wireless Linked Construction Site Call Point | FMCEVASYNP1

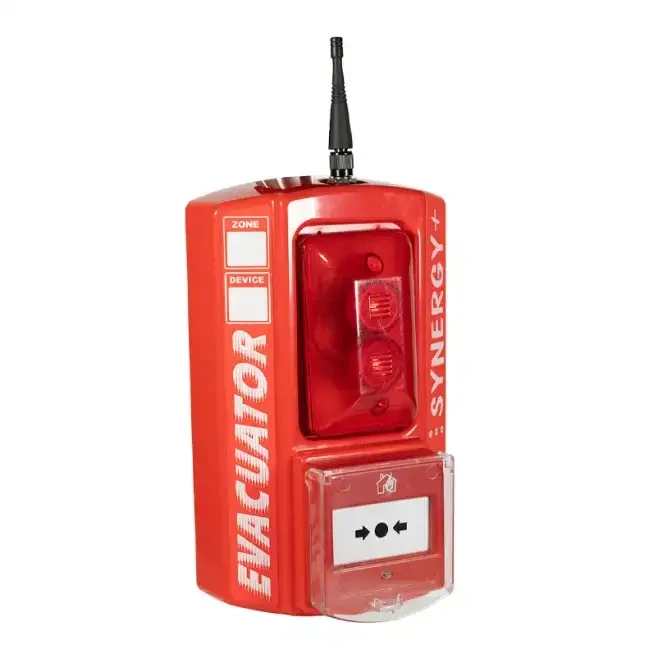

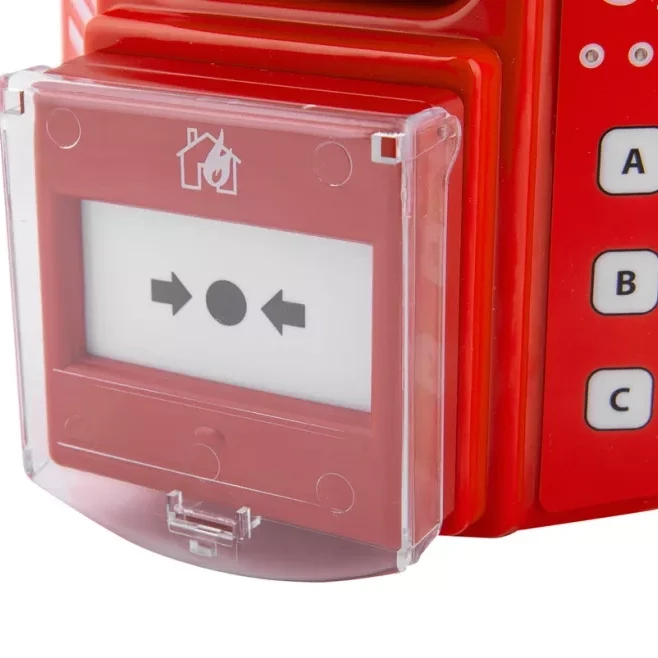

The Evacuator Synergy+ Wireless Linked Construction Site Call Point is a battery-powered manual fire alarm unit designed for temporary fire alarm installations on construction sites. Combining a manual call point with an integrated sounder and strobe, it provides an audible and visual warning when activated as part of a wireless fire alarm system.

Featuring mesh radio connectivity, the Synergy+ call point operates on an 869MHz radio frequency using a Category One radio module. With a wireless communication range of up to 2km line of sight, the unit supports linked fire alarm installations across construction environments without requiring fixed electrical wiring.

The integrated sounder delivers an output of 100dB at 1 metre, providing an audible fire alarm warning. A combined strobe provides an additional visual warning, making the unit suitable for construction environments where both audible and visual alarm notification are required.

Powered by a replaceable battery pack, the Synergy+ call point offers up to three years of battery life. Its completely wire-free design removes the need for fixed cabling, making it suitable for temporary installations and changing construction site layouts.

Additional features include a status LED, low battery indication and secure reset function. The supplied call point reset key allows the unit to be reset following activation.

The call point features an IP55-rated enclosure, providing protection against dust ingress and water jets. Measuring 350 x 163 x 98mm and weighing 1.65kg, the unit is designed for installation within construction site fire alarm networks.

The Evacuator Synergy+ call point is specified as compliant with CE, RoHS and EMC requirements. Each unit is supplied with a battery pack and call point reset key.

Fully addressable when connected to the Synergy+ Base Station, the base station provides control/silence/reset facility for connected call points. The base station is also capable of monitoring the battery status of call points on the system.

• FMCEVASYNP1

• Wireless manual fire alarm call point for construction site applications

• Integrated sounder and strobe for audible and visual fire alarm warning

• 100dB sound output measured at 1 metre

• Mesh radio connectivity with up to 2km line-of-sight communication range

• 869MHz operating frequency with Category One radio module

• Up to three years of battery life

• Completely wire-free operation without fixed electrical wiring

• IP55-rated enclosure for dust and water ingress protection

• Status LED, low battery indication and secure reset function
