Evacuator Synergy+ Construction Site Fire Alarm Base Station (FMCEVASYNP2 | 230VAC)
Code: FDS372/003
£573.54
INC VAT
Code: FDS372/003

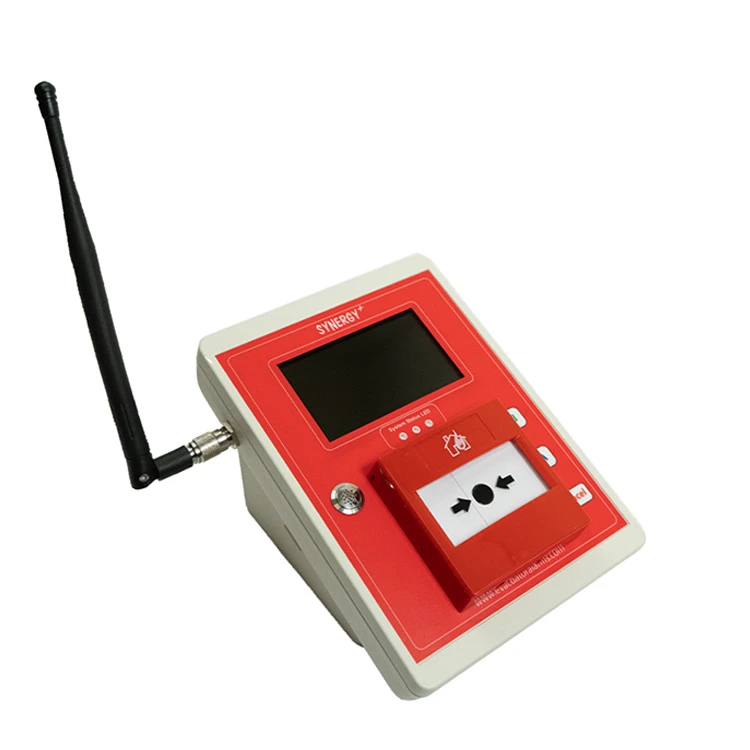

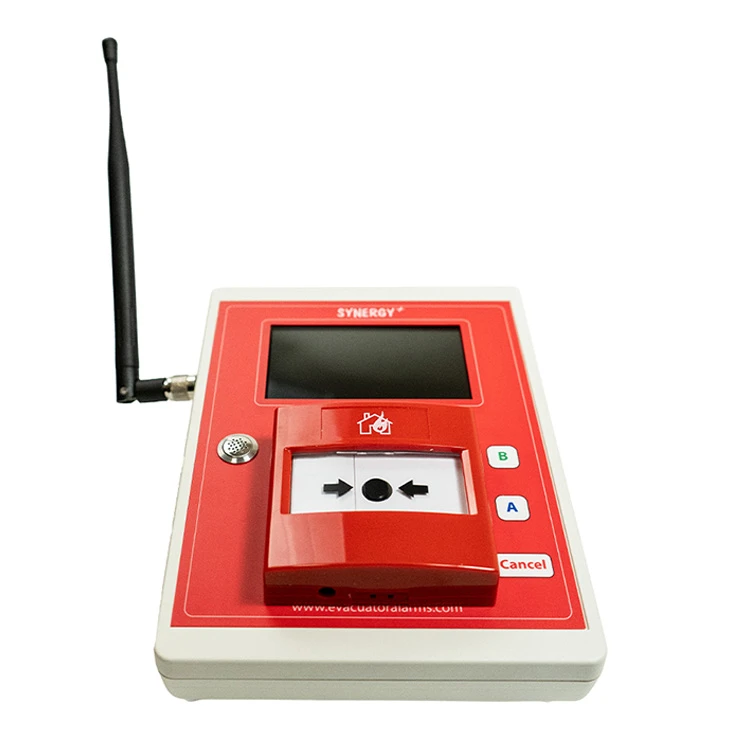

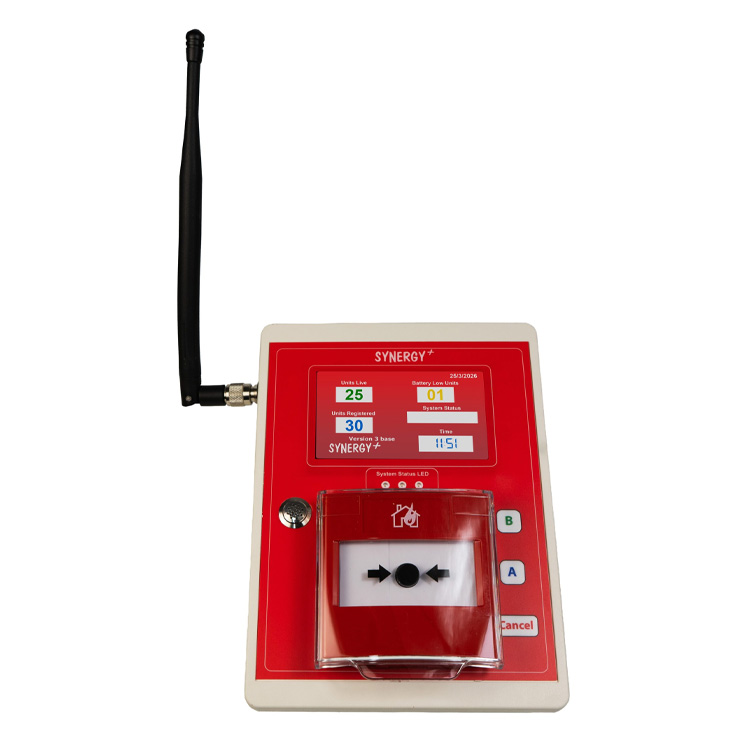

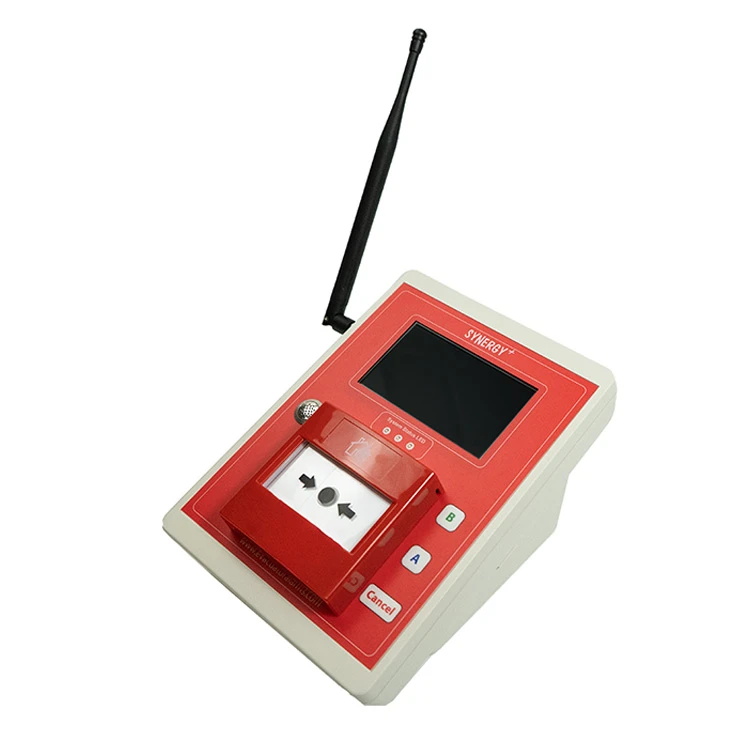

The Evacuator Synergy+ Wireless Fire Alarm Base Station is a mains-powered control unit designed to manage linked wireless fire alarm devices across construction site installations. Featuring mesh radio connectivity and support for up to 250 connected devices, it provides a central point for monitoring, managing and activating a Synergy+ wireless fire alarm system.
Operating on an 869MHz radio frequency, the base station uses mesh radio communication to connect with devices throughout the installation. Secure pairing supports the addition of wireless equipment, while the zoning function allows connected devices to be organised into designated areas for easier system management.
The base station features a display with a 480 x 272 resolution, providing system information and status indications. Colour-coded squares help identify individual devices, making it easier to monitor the connected fire alarm network.
Dedicated Engineers Mode and Supervisors Mode provide different operating interfaces for system management. Additional functionality includes an automatic site reset feature, a first aid call function and an integrated manual call point for fire alarm activation.
An 85dB buzzer provides an audible indication at the base station. The unit also supports Fast Pair functionality when operating with V3 software, allowing compatible devices to be paired more efficiently.
Designed for indoor installation, the Synergy+ base station can be configured for wall or desk mounting. It operates from a mains power supply, with an optional battery backup available as a separate device.
Each base station is supplied with a 4.5 transformer and call point reset key, providing the essential accessories for installation and operation.
FMCEVASYNP2
Wireless fire alarm base station supporting up to 250 connected devices
869MHz mesh radio connectivity with secure device pairing
480 x 272 screen resolution with colour-coded device identification
Zoning functionality for organising connected fire alarm devices
Engineers Mode and Supervisors Mode for system management
Automatic site reset and first aid call functions
Integrated EN54-compliant manual call point and 85dB buzzer
Fast Pair functionality available with V3 software only
Wall or desk mounting with optional separate battery backup
Requires a mains power source
Specification | Details |
|---|---|
Model | FMCEVASYNP2 |
Maximum Connected Devices | 250 |
Radio Connectivity | Mesh Radio |
Radio Frequency | 869MHz |
Device Pairing | Secure Pairing |
Fast Pair | V3 Software Version Only |
Display Resolution | 480 x 272 |
Device Identification | Colour-Coded Squares |
Zoning | Yes |
Operating Modes | Engineers Mode, Supervisors Mode |
System Status Indication | Yes |
Automatic Site Reset | Yes |
First Aid Call | Yes |
Manual Call Point | Integrated, EN54 Compliant |
Sound Output | 85dB |
Power Supply | Mains Powered Only |
Battery Backup | Optional, Separate Device |
Mounting Options | Wall or Desk Mount |
Installation Environment | Indoor Only |
Height | 225mm |
Width | 166mm |
Depth | 75mm |
Weight | 1kg |
Supplied Components | 4.5 Transformer, Call Point Reset Key |
The Evacuator Synergy+ Wireless Fire Alarm Base Station is a mains-powered control unit designed to manage linked wireless fire alarm devices across construction site installations. Featuring mesh radio connectivity and support for up to 250 connected devices, it provides a central point for monitoring, managing and activating a Synergy+ wireless fire alarm system.
Operating on an 869MHz radio frequency, the base station uses mesh radio communication to connect with devices throughout the installation. Secure pairing supports the addition of wireless equipment, while the zoning function allows connected devices to be organised into designated areas for easier system management.
The base station features a display with a 480 x 272 resolution, providing system information and status indications. Colour-coded squares help identify individual devices, making it easier to monitor the connected fire alarm network.
Dedicated Engineers Mode and Supervisors Mode provide different operating interfaces for system management. Additional functionality includes an automatic site reset feature, a first aid call function and an integrated manual call point for fire alarm activation.
An 85dB buzzer provides an audible indication at the base station. The unit also supports Fast Pair functionality when operating with V3 software, allowing compatible devices to be paired more efficiently.
Designed for indoor installation, the Synergy+ base station can be configured for wall or desk mounting. It operates from a mains power supply, with an optional battery backup available as a separate device.
Each base station is supplied with a 4.5 transformer and call point reset key, providing the essential accessories for installation and operation.
FMCEVASYNP2
Wireless fire alarm base station supporting up to 250 connected devices
869MHz mesh radio connectivity with secure device pairing
480 x 272 screen resolution with colour-coded device identification
Zoning functionality for organising connected fire alarm devices
Engineers Mode and Supervisors Mode for system management
Automatic site reset and first aid call functions
Integrated EN54-compliant manual call point and 85dB buzzer
Fast Pair functionality available with V3 software only
Wall or desk mounting with optional separate battery backup
Requires a mains power source
Specification | Details |
|---|---|
Model | FMCEVASYNP2 |
Maximum Connected Devices | 250 |
Radio Connectivity | Mesh Radio |
Radio Frequency | 869MHz |
Device Pairing | Secure Pairing |
Fast Pair | V3 Software Version Only |
Display Resolution | 480 x 272 |
Device Identification | Colour-Coded Squares |
Zoning | Yes |
Operating Modes | Engineers Mode, Supervisors Mode |
System Status Indication | Yes |
Automatic Site Reset | Yes |
First Aid Call | Yes |
Manual Call Point | Integrated, EN54 Compliant |
Sound Output | 85dB |
Power Supply | Mains Powered Only |
Battery Backup | Optional, Separate Device |
Mounting Options | Wall or Desk Mount |
Installation Environment | Indoor Only |
Height | 225mm |
Width | 166mm |
Depth | 75mm |
Weight | 1kg |
Supplied Components | 4.5 Transformer, Call Point Reset Key |
