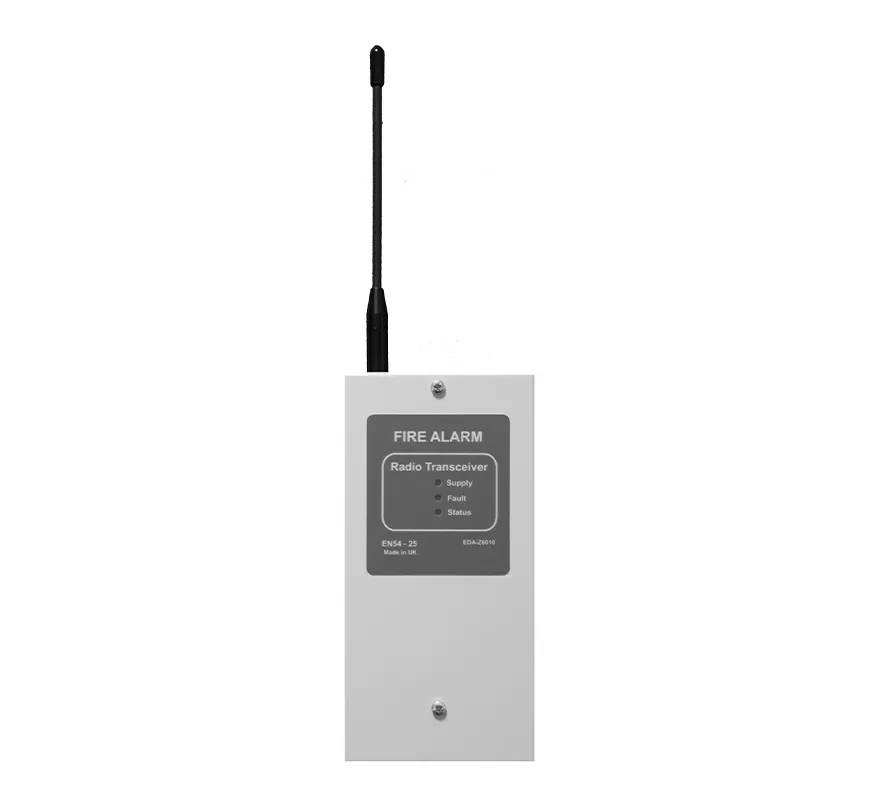

EDA Z6010 | Zerio Plus Wired Radio Booster Unit

Name: EDA Z6010 | Zerio Plus Wired Radio Booster Unit
Brand: Eda
Price: 242.7 GBP
Availability: InStock

Code: FDS320/226

£242.70

INC VAT

Code: FDS320/226

Zerio Plus Z6010
EN54 Compliant
Up to 15 signal boosters per system

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Zerio Plus Z6010 Wired Booster Unit is designed to improve the signal strength and overall reliability of the Zerio Plus fire alarm system.

By connecting directly to the control panel, the Z6010 amplifies the wireless signal across larger buildings or areas with signal coverage challenges.

This wired booster ensures that all wireless devices, such as detectors, sounders, and call points, maintain reliable communication with the control panel, reducing the risk of signal dropouts.

Ideal for multi-floor or expansive installations, the Z6010 enhances system performance and helps meet fire safety compliance.

Zerio Plus Z6010
EN54 Compliant
Up to 15 signal boosters per system
Simple to set-up
Connects via cable to main panel
Requires RS485 data cable between units

Specification	Details
Max no of Wired Intelligent Antennas (System)	7 (can be increased in certain setups – contact EDA technical)
Max no per Control / Booster panel	4
Dimensions (W x H x D, mm)	80 x 160 x 40 mm (not including antenna)
Total height with antenna fitted	300 mm
Weight	250 g
Indicators – Supply	Green LED to indicate mains present
Indicators – Fault	Yellow LED to indicate fault on unit
Indicators – Status	Yellow LED to indicate if antenna is logged to the system
Supply Voltage	12–15V from control panel
Current Draw	12 mA
Operating Frequency	868 MHz
Modulation	NBFM
Output Power (ERP)	10 mW
Operational Temperature	0°C to +60°C
European Fire Alarm Standard	EN54 Part 25
British Standard	BS 5839 Part 1:2008
R&TTE	EN300 220
EMC Standards	EN301 489-3, EN50130-4, EN60950:2001
Recommended Cable	Draka Firetuf FT Data 4 core (2 twisted pairs). Cat5/6 can be used for <20m runs if no fire cable required
End of line / balancing resistor	100Ω (fitted across D- and D+ terminals of unused RS4

Zerio Plus Wired Radio Booster Unit Datasheet

Click here to download
