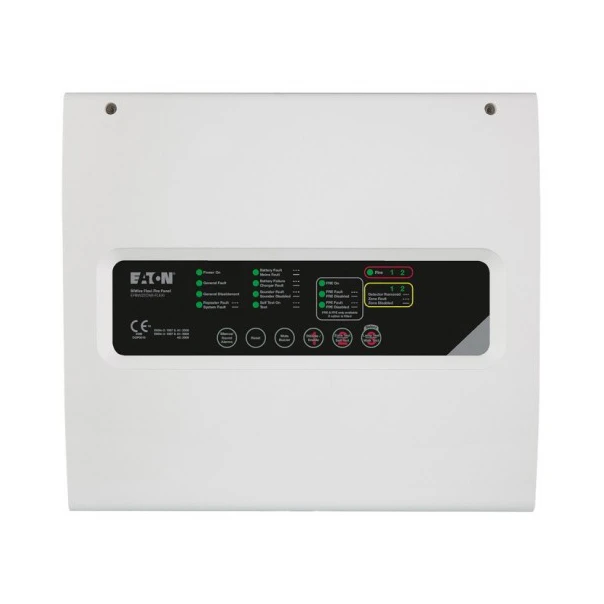

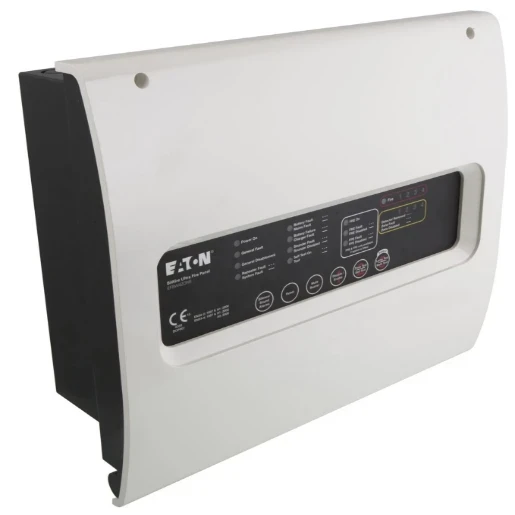

Eaton Flexi Bi-Wire & Conventional Fire Alarm Control Panel

Name: Eaton Flexi Bi-Wire & Conventional Fire Alarm Control Panel
Brand: Eaton
SKU: FDS002/180
Price: 205.68 GBP
Availability: InStock

Code: FDS002/180

£205.68

INC VAT

Code: FDS002/180

Zone

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Eaton Bi-Wire Flexi Fire Alarm Panel offers the best of both worlds, combining two-wire and conventional technology in one powerful unit.

Each zone can be individually configured to accept either type of wiring, allowing you to mix conventional and two-wire devices across your installation. This flexibility makes it ideal for both new installs and retrofit projects, where existing wiring or devices need to be integrated.

The panel uses the same intuitive interface as the popular 8 Zone Conventional Panel, making setup and maintenance simple for installers.

Certified to EN54 Parts 2 and 4, and designed to meet BS 5839 recommendations, the BiWire Flexi panel provides reliable fire detection that complies with current UK fire safety standards.

Whether you're saving time with two-wire loops or utilising specialist conventional devices, this panel adapts to suit the job.

Supports both conventional and two-wire detection on the same system
Each zone configurable independently
Compatible with a wide range of devices
Easy-to-use interface for fast setup and servicing
Ideal for mixed-system upgrades and phased retrofits
Certified to EN54 Parts 2 & 4
Meets BS 5839 fire safety recommendations

Specification	2 Zone Panel	4 Zone Panel	8 Zone Panel
Reference	EFW2Z-FLEXI	EFW4Z-FLEXI	EFW8Z-FLEXI
Description	2 zone panel	4 zone panel	8 zone panel
Input Voltage Range	18.75–30 V DC	18.75–30 V DC	18.75–30 V DC
Max Current Drawn From Battery	2.7 A	2.7 A	2.7 A
Number of Zones	2	4	8
Devices Per Zone	BiWire: Max 32 BiWire Detectors & MCPs incl. sounders (≤200mA) Conventional: Max 32 Conv Devices & MCPs	Same as 2 zone	Same as 2 zone
Max Loading Per Zone	200 mA	200 mA	200 mA
Standby Zone Voltage	Vmin 19V DC, Vmax 23V DC	Vmin 19V DC, Vmax 23V DC	Vmin 19V DC, Vmax 23V DC
Alarm Zone Voltage	Vmin 31V DC, Vmax 33V DC	Vmin 31V DC, Vmax 33V DC	Vmin 31V DC, Vmax 33V DC
Zone Fuse Protection	250 mA PTC	250 mA PTC	250 mA PTC
End of Line Termination	BiWire: EOLM-3 Conventional: 4k7Ω or EOLM-1/3	Same as 2 zone	Same as 2 zone
Sounder Circuits	2 circuits (BiWire or Conv)	2 circuits (BiWire or Conv)	2 circuits in BiWire, 4 circuits in Conv
Sounder Fuse Protection	250 mA PTC	250 mA PTC	250 mA PTC
Sounder EOL Termination	6k8Ω	6k8Ω	6k8Ω
Relay Outputs	Volt-free SPDT (30V DC, 1A)	Same as 2 zone	Same as 2 zone
Relay Output Fuse	500 mA PTC	500 mA PTC	500 mA PTC
Aux Output Voltage	11.6–13.0 V	11.6–13.0 V	11.6–13.0 V
Aux Output Current (max)	500 mA	500 mA	500 mA
Aux Output Fuse	500 mA PTC	500 mA PTC	500 mA PTC
Class Change Input	Open = Normal, Short = All Sounders	Same as 2 zone	Same as 2 zone
Repeater Port	RS485	RS485	RS485
Node ID	1	1	1
Operating Temp	-5°C to +40°C	Same as 2 zone	Same as 2 zone
Humidity	93% ±3% non-condensing	Same as 2 zone	Same as 2 zone
IP Rating	IP30	IP30	IP30
Weight (excl. batteries)	2.25 kg	Same as 2 zone	Same as 2 zone
Material	PC ABS Front and Rear	Same as 2 zone	Same as 2 zone
Cable Access	29x 20mm drill positions	Same as 2 zone	Same as 2 zone
Cable Type	FT120 (Fitted/Optional)	Same as 2 zone	Same as 2 zone
Loop Cable	2-core (1.5–2.5 mm²), 500m max	Same as 2 zone	Same as 2 zone
Standards	EN54-2 & -4, BS5839 pt1	Same as 2 zone	Same as 2 zone

Datasheet	Click here to download
Specification Sheet	Click here to download
Installation Manual	Click here to download
Brochure	Click here to download

Overview

Features

Technical Data

Specification	2 Zone Panel	4 Zone Panel	8 Zone Panel
Reference	EFW2Z-FLEXI	EFW4Z-FLEXI	EFW8Z-FLEXI
Description	2 zone panel	4 zone panel	8 zone panel
Input Voltage Range	18.75–30 V DC	18.75–30 V DC	18.75–30 V DC
Max Current Drawn From Battery	2.7 A	2.7 A	2.7 A
Number of Zones	2	4	8
Devices Per Zone	BiWire: Max 32 BiWire Detectors & MCPs incl. sounders (≤200mA) Conventional: Max 32 Conv Devices & MCPs	Same as 2 zone	Same as 2 zone
Max Loading Per Zone	200 mA	200 mA	200 mA
Standby Zone Voltage	Vmin 19V DC, Vmax 23V DC	Vmin 19V DC, Vmax 23V DC	Vmin 19V DC, Vmax 23V DC
Alarm Zone Voltage	Vmin 31V DC, Vmax 33V DC	Vmin 31V DC, Vmax 33V DC	Vmin 31V DC, Vmax 33V DC
Zone Fuse Protection	250 mA PTC	250 mA PTC	250 mA PTC
End of Line Termination	BiWire: EOLM-3 Conventional: 4k7Ω or EOLM-1/3	Same as 2 zone	Same as 2 zone
Sounder Circuits	2 circuits (BiWire or Conv)	2 circuits (BiWire or Conv)	2 circuits in BiWire, 4 circuits in Conv
Sounder Fuse Protection	250 mA PTC	250 mA PTC	250 mA PTC
Sounder EOL Termination	6k8Ω	6k8Ω	6k8Ω
Relay Outputs	Volt-free SPDT (30V DC, 1A)	Same as 2 zone	Same as 2 zone
Relay Output Fuse	500 mA PTC	500 mA PTC	500 mA PTC
Aux Output Voltage	11.6–13.0 V	11.6–13.0 V	11.6–13.0 V
Aux Output Current (max)	500 mA	500 mA	500 mA
Aux Output Fuse	500 mA PTC	500 mA PTC	500 mA PTC
Class Change Input	Open = Normal, Short = All Sounders	Same as 2 zone	Same as 2 zone
Repeater Port	RS485	RS485	RS485
Node ID	1	1	1
Operating Temp	-5°C to +40°C	Same as 2 zone	Same as 2 zone
Humidity	93% ±3% non-condensing	Same as 2 zone	Same as 2 zone
IP Rating	IP30	IP30	IP30
Weight (excl. batteries)	2.25 kg	Same as 2 zone	Same as 2 zone
Material	PC ABS Front and Rear	Same as 2 zone	Same as 2 zone
Cable Access	29x 20mm drill positions	Same as 2 zone	Same as 2 zone
Cable Type	FT120 (Fitted/Optional)	Same as 2 zone	Same as 2 zone
Loop Cable	2-core (1.5–2.5 mm²), 500m max	Same as 2 zone	Same as 2 zone
Standards	EN54-2 & -4, BS5839 pt1	Same as 2 zone	Same as 2 zone
