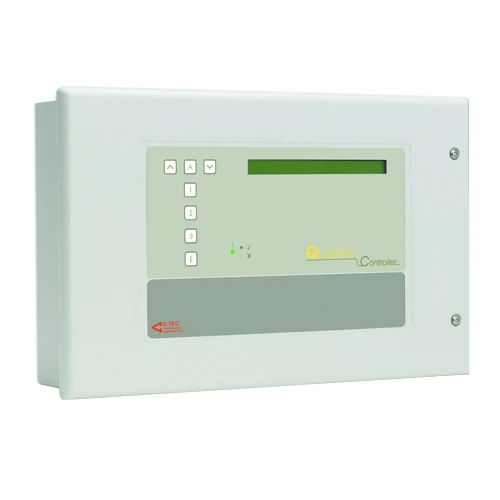

The C-TEC Quantec QT601-2 Control Panel supplies power to and controls a Quantec Addressable Call System.
Supplies power to and controls a Quantec Addressable Call System.
Monitors all network devices and manages the routing and distribution of all calls.
Provides connections for network wiring, standby batteries, a laptop (for system programming), optional paging/DECT equipment, an optional printer or PC (to run Quantecs QT707S Surveyor data management software).
Includes a library of 40 pre-set & 45 custom place names.
System setup requires a laptop PC running Quantecs QT707 programming tools.
Can be semi-flush mounted using an QT385 bezel or fully-flushed using a BF359/3S stainless steel enclosure.
System wiring requires one or more QT603 network splitters.
Wiring should be made in a spine and limb arrangement using 1.5 to 2.5mm2 T&E (spines) and 4 to 8 core stranded security cable (limbs).
Mains supply230V 50/60Hz.
Mains rated current350mA maximum.
Internal power supply27Vdc nominal.
Total output current limited to3A @ 230Vac.
Quiescent current100mA @ 24V
Max battery size and type2 x 12V 7Ah VRLA connected in series.
CablingSpine & limb arrangement using QT603 network splitters. Spines wired in 1.5-2.5mm2 T&E; Limbs wired in 4 core stranded security cable (up to 6 limbs per QT603 splitter). Refer to main instructions for more details.
Open collector outputsOP1 (active on standard call); OP2 (active on help req. call); OP3 (active on emergency call); OP4 (active on attack call). OP5 (failsafe fault output). Voltfree single pole c/o. Max. switch current 25mA; Max. switch voltage 30Vdc.
Other outputs24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA.
PC connectionCONN1 provides an RS232 connection for use with our Quantec Surveyor data management software (via a PC) or a Quantec Printer.
Indicators2 line x 40 character backlit display; Power LED (lit when power is present, off when no power present).
ControlsAccept (A); Scroll Up; Scroll Down; Code Entry Buttons (1, 2, 3 and 4); Escape (E).
ConnectionsPlug-on type, largest acceptable conductor size 1mm2.
Expansion connectionsCONN2 provides an RS232 connection for paging equipment.
Product dimensions (mm)410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid).
Construction & finishMetal base, plastic lid.
IP RatingIP30
Weight3.5Kg.
Operating conditions/temperature-5C to +40C. Max relative humidity: 95%.
