C-TEC NC951/SS | Accessible Toilet Alarm Kit | Stainless Steel

Name: C-TEC NC951/SS | Accessible Toilet Alarm Kit | Stainless Steel
Brand: C-tec
Price: 188.7 GBP
Availability: InStock

Code: FDS332/013

£188.70

INC VAT

Code: FDS332/013

In stock
Typically dispatched in 1-2 working days

Add these extras to your kit

Please Select

C-TEC NC944/SS | Stainless Steel Accessible Toilet Alarm 4 Zone Controller(£244.86 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

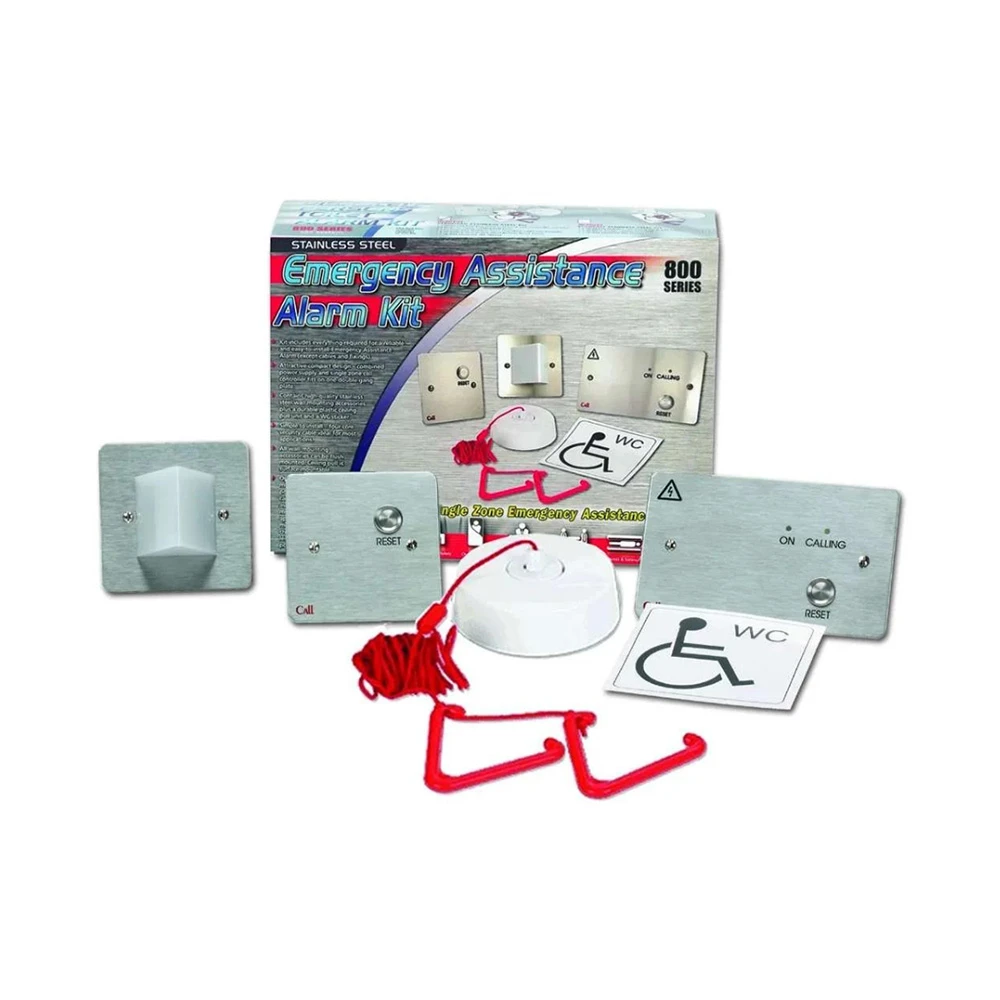

The C-TEC NC951/SS Stainless Steel Accessible Toilet Alarm Kit provides a reliable and compliant solution for emergency assistance in public and commercial buildings.

Suitable for environments such as hotels, leisure centres, supermarkets, and healthcare facilities, it is designed for both durability and ease of use.

The kit includes high-quality brushed stainless steel wall-mounted accessories and a robust plastic ceiling pull unit, ergonomically designed for users with limited mobility.

Installation is straightforward, with 4-core security cable suitable for most applications.

For larger installations, such as multiple WCs, changing rooms, or accessible areas, compatible stainless steel 4-zone call controllers and additional wall-mounted call points are available, allowing you to create a multi-point call system with a consistent, professional finish.

Brushed stainless steel faceplates for a premium, durable finish
Single-zone accessible toilet alarm kit
Volt-free relay output for integration with other systems
Braille text for enhanced accessibility
Remote reset point with built-in sounder
Clear audible and visual alarm indication
Disabled WC sticker supplied with every kit
Expandable to support up to three additional 800 Series Call System devices

Specification	Details
Mains supply	230V 50/60Hz (36mA max. current). 50Hz frequency
Internal power supply	13–13.8V d.c.
Total output current limited to	250mA
Quiescent current	See individual device listings for NC941/SS, NC807C, NC806CS/SS and NC809DB/SS
Max battery size and type	Remote battery back-up kit (part no. NC941B) can be connected to NC941/SS for limited operation during mains failure
Alarm current	TBC
Auxiliary relays	N/A
Indicators	NC807C & NC809DB/SS: red reassurance LEDs; NC806CS/SS: twin red alarm LEDs; NC941/SS: red alarm and green supply present LED
Controls	NC941/SS: reset button (optional disable); NC807C: pull cord with two bangles; NC809DB/SS: reset button
Expansion connections	Up to three ceiling pulls can be daisychained for multiple call points
Call acknowledgement functionality	No – use NC951 Accessible Toilet Alarm if required
Onboard sounder	Yes (on NC806CS and NC941/SS)
Onboard infrared receiver	No
Product dimensions (mm)	NC941/SS: 156 W x 94 H x 37 D; NC806CS/SS: 87 W x 87 H x 80 D; NC809DB/SS: 87 W x 87 H x 24 D; Ceiling pull: 93mm diameter x 27 D
Packaging dimensions (mm)	285 W x 201 H x 55 D (NC951/SS kit box)
Construction & finish	Brushed stainless steel call controller, reset point and overdoor light; plastic ceiling pull
IP rating	IP41 (wall-mounted devices); IP21 (ceiling pull)
Weight	995g
Operating conditions/temperature	-5ºC to +40ºC, max. relative humidity 95% non-condensing
Notes	For multi-zone stainless steel call systems, use NC944/SS call controllers with an NC930/SS 12V power supply

Dimensions

NC941/SS S/Steel Call Controller:	147 W x 94 H x 37 D mm. Mounts on a 40mm UK double gang back box.
NC807C Ceiling Pull:	93mm diameter x 27mm deep. Surface mountable on a ceiling.
NC806CS/SS S/Steel Overdoor Light c/w Sounder:	87 W x 87 H x 68 D mm. Mounts on a 30mm UK single gang back box.
NC809DB/SS S/Steel Reset Point	87 W x 87 H x 24 D mm. Mounts on a 30mm UK single gang back box.
NC949 Accessible WC Sticker	90 W x 130 H x 0.25 D mm.

C-TEC Accessible Toilet Alarm Kit Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Mains supply	230V 50/60Hz (36mA max. current). 50Hz frequency
Internal power supply	13–13.8V d.c.
Total output current limited to	250mA
Quiescent current	See individual device listings for NC941/SS, NC807C, NC806CS/SS and NC809DB/SS
Max battery size and type	Remote battery back-up kit (part no. NC941B) can be connected to NC941/SS for limited operation during mains failure
Alarm current	TBC
Auxiliary relays	N/A
Indicators	NC807C & NC809DB/SS: red reassurance LEDs; NC806CS/SS: twin red alarm LEDs; NC941/SS: red alarm and green supply present LED
Controls	NC941/SS: reset button (optional disable); NC807C: pull cord with two bangles; NC809DB/SS: reset button
Expansion connections	Up to three ceiling pulls can be daisychained for multiple call points
Call acknowledgement functionality	No – use NC951 Accessible Toilet Alarm if required
Onboard sounder	Yes (on NC806CS and NC941/SS)
Onboard infrared receiver	No
Product dimensions (mm)	NC941/SS: 156 W x 94 H x 37 D; NC806CS/SS: 87 W x 87 H x 80 D; NC809DB/SS: 87 W x 87 H x 24 D; Ceiling pull: 93mm diameter x 27 D
Packaging dimensions (mm)	285 W x 201 H x 55 D (NC951/SS kit box)
Construction & finish	Brushed stainless steel call controller, reset point and overdoor light; plastic ceiling pull
IP rating	IP41 (wall-mounted devices); IP21 (ceiling pull)
Weight	995g
Operating conditions/temperature	-5ºC to +40ºC, max. relative humidity 95% non-condensing
Notes	For multi-zone stainless steel call systems, use NC944/SS call controllers with an NC930/SS 12V power supply

Dimensions

NC941/SS S/Steel Call Controller:	147 W x 94 H x 37 D mm. Mounts on a 40mm UK double gang back box.
NC807C Ceiling Pull:	93mm diameter x 27mm deep. Surface mountable on a ceiling.
NC806CS/SS S/Steel Overdoor Light c/w Sounder:	87 W x 87 H x 68 D mm. Mounts on a 30mm UK single gang back box.
NC809DB/SS S/Steel Reset Point	87 W x 87 H x 24 D mm. Mounts on a 30mm UK single gang back box.
NC949 Accessible WC Sticker	90 W x 130 H x 0.25 D mm.

Downloads & Resources

C-TEC NC951/SS | Accessible Toilet Alarm Kit | Stainless Steel

£188.70

C-TEC Quantec QT951 | Accessible Toilet Alarm Kit

C-TEC NC951 | Accessible Toilet Alarm Kit

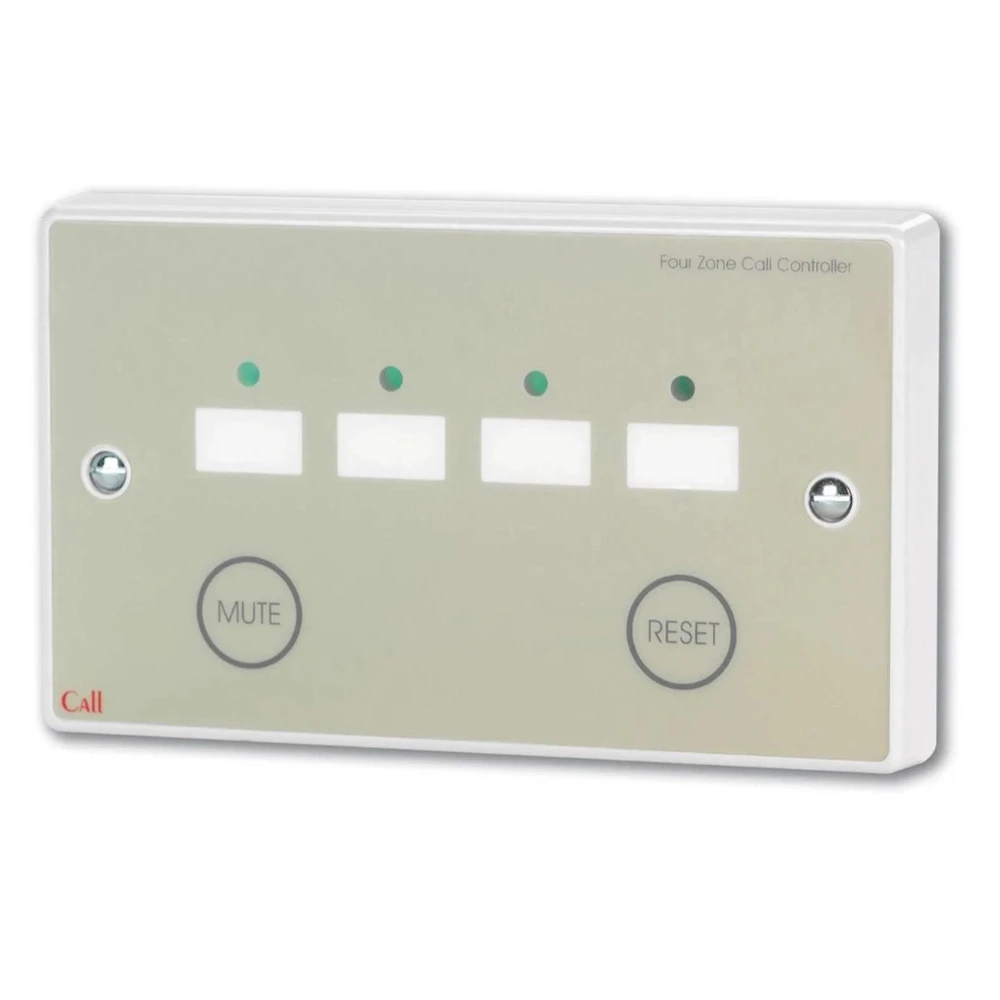

C-TEC NC944 | Accessible Toilet Alarm 4 Zone Controller
