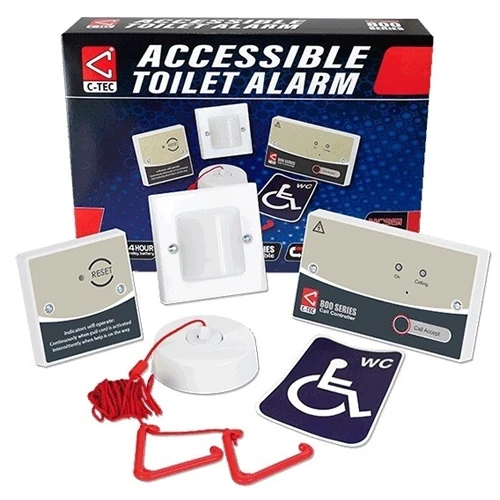

C-TEC NC951 Accessible Toilet Alarm Kit

Name: C-TEC NC951 Accessible Toilet Alarm Kit
Brand: C-tec
Price: 115.92 GBP
Availability: InStock

Code: FDS332/014

£115.92

INC VAT

Code: FDS332/014

In stock
Typically dispatched in 2-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC NC951 accessible toilet alarm kit includes everything required for a BS8300 clause-compliant emergency assistance alarm.

Easy to install and simple to use, it allows a distressed person to raise an alarm in the event of an emergency. The NC951 can help building managers and service providers comply with the requirements of BS8300, the Disability Discrimination Act, the Care Standards Act and the English Tourism Council's National Accessibility Scheme.

A built-in Call Accept function reassures occupants that help is on its way.

The NC951 is ideal for use as a single zone emergency assistance alarm in toilets, changing rooms, solariums, interview rooms and reception areas.

C-TEC NC951
Single zone
Rechargeable back-up battery
Volt-free relay output
Braille text
Remote reset point c/w sounder
Audible and visual indication of an alarm call
Disabled WC sticker included in all kits
Expandable to 3 additional 800 Series Call System devices

Specification	Details
Mains Supply	230V 50/60Hz (23mA max. current), 50Hz frequency
Internal Power Supply	12V d.c.
Total Output Current	Limited to 140mA
Quiescent Current	See individual device listings (NC943B, NC807C, NC806CS, NC809DBBT)
Max Battery Size and Type	NC943B includes onboard 500mA rechargeable standby battery (up to 24h standby, 15 mins alarm)
Alarm Current	40mA (all NC951 devices, includes 18mA zone current)
Auxiliary Relays	Volt-free NO/NC relay, rated at 30V d.c. @ 1A
Indicators	Red reassurance LEDs / twin red alarm LEDs depending on device
Controls	Call accept/reset button, pull cord or reset button (model dependent)
Expansion Connections	Up to 3 ceiling/wall pulls can be daisy chained
Call Acknowledgement	Yes
Onboard Sounder	Yes (on selected models)
Onboard Infrared Receiver	No
Product Dimensions	Various by device (see models for exact sizes)
Packaging Dimensions	285 x 201 x 55 mm
Construction & Finish	Plastic
IP Rating	IP41 (IP21 for ceiling/wall pull)
Weight	0.60 kg
Operating Temperature	-5°C to +40°C
Humidity	Up to 95% non-condensing
Notes	Includes all components for single zone accessible toilet alarm system

Datasheet	Click here to download
Installation & User Guide	Click here to download
How to Connect to Multi-Zone Controller	Click here to download
Pull Cord Installation	Click here to download
