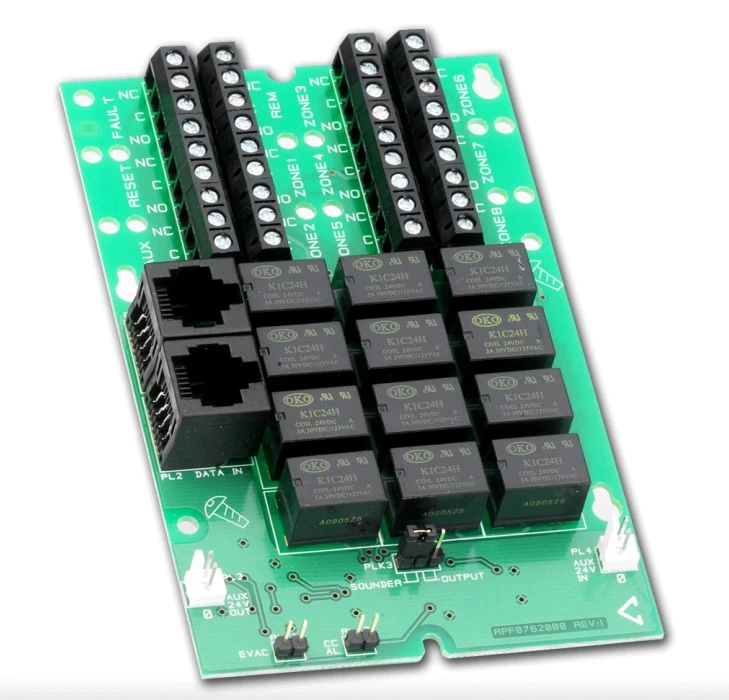

C-TEC CFP764 Zone Relay Card (8 Zone Relays)

The C-TEC CFP764 Zone Relay Card is an optional expansion module designed for use with C-TEC CFP conventional fire alarm control panels.

Installed within the control panel, this relay card provides eight zone-specific relay outputs, allowing external equipment to be triggered when a corresponding fire alarm zone enters an alarm condition.

Each relay operates as a single pole changeover contact, enabling the fire alarm panel to interface with other systems such as building management systems, auxiliary signalling devices or additional control equipment.

The CFP764 is designed for use with CFP708-4 Standard 8 Zone Fire Panels and CFP708-2 AlarmSense 8 Zone Fire Panels, offering a simple way to expand system functionality and improve integration with other building services.

• Zone relay expansion card for C-TEC CFP fire alarm panels

• Provides 8 zone relay outputs, one for each zone

• Relays activate when the corresponding zone enters alarm

• Single pole changeover contacts for flexible interfacing

• Compatible with CFP708-4 Standard 8 Zone panels

• Compatible with CFP708-2 AlarmSense 8 Zone panels

• PCB mounts directly inside the fire alarm panel

• Compact design for straightforward installation

• 1A @ 50V relay switching capacity

• Note: Outputs are not designed to switch mains voltages
