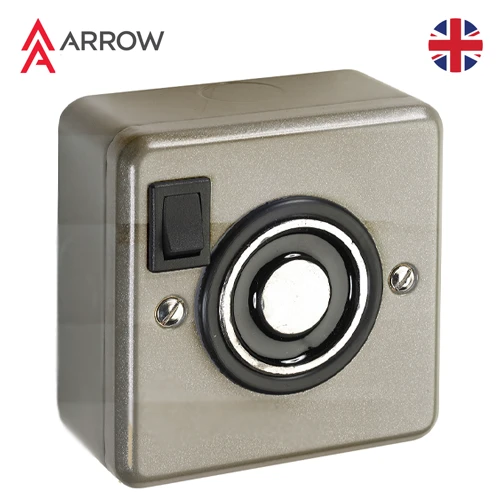

Arrow Electromagnetic Door Holder - Wall Mounted, Satin Nickel Plate

Name: Arrow Electromagnetic Door Holder - Wall Mounted, Satin Nickel Plate
Brand: Arrow
Availability: InStock

Code: FDS330/020

Call to place order

INC VAT

Code: FDS330/020

Electromagnetic Door Holder
Incorporates a manual On / Off switch
Designed to be surface mounted to a wall

Have a question about this? Click here

Overview Features Technical Data

This unit can be used in conjunction with a standard door closer to hold a door open to aid ease of access throughout a building but since it is also linked directly to the Fire Detection system, as soon as the fire alarm sounds, all doors fitted with electromagnetic devices are closed to prevent the spread of fire and smoke.

Aside from the inclusion of an electromagnetic door closer, the use of an electromagnetic door holder is the only safe and legally compliant way to hold fire doors open within a building.

Designed to be surface mounted to a wall; Can be fitted direct to walls or floor mounted.

Electromagnetic Door Holder
Incorporates a manual On / Off switch
Designed to be surface mounted to a wall
Can be fitted direct to walls or floor mounted

Category	Specification	Detail
Finish	Surface Finish	Satin Nickel Plate
Electrical	Standard Voltage	24 Volt DC
	Resistance	330 Ohms
	Power	1.75 Watts
Performance	Power Range Suitability	3–7 in accordance with BS EN 1154
Mechanical	Material	British Extruded Aluminium and British Steel
	Box Dimensions	L 86 mm × H 86 mm × D 52 mm
	Armature Dimensions	L 57 mm × H 19 mm
Fire Safety	Fire Tested	120 Minutes
Standards	Compliance	BS EN 1155 (Electrical), BS EN 1154 (Mechanical), BS EN 1634 (Fire Test), BS 8300 (Ease of Access)

Overview

Features

Technical Data

Category	Specification	Detail
Finish	Surface Finish	Satin Nickel Plate
Electrical	Standard Voltage	24 Volt DC
	Resistance	330 Ohms
	Power	1.75 Watts
Performance	Power Range Suitability	3–7 in accordance with BS EN 1154
Mechanical	Material	British Extruded Aluminium and British Steel
	Box Dimensions	L 86 mm × H 86 mm × D 52 mm
	Armature Dimensions	L 57 mm × H 19 mm
Fire Safety	Fire Tested	120 Minutes
Standards	Compliance	BS EN 1155 (Electrical), BS EN 1154 (Mechanical), BS EN 1634 (Fire Test), BS 8300 (Ease of Access)
