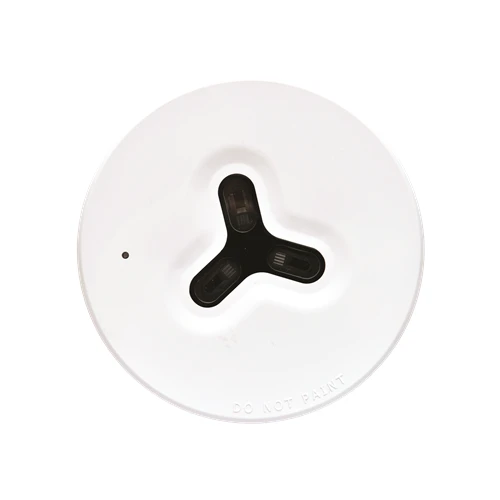

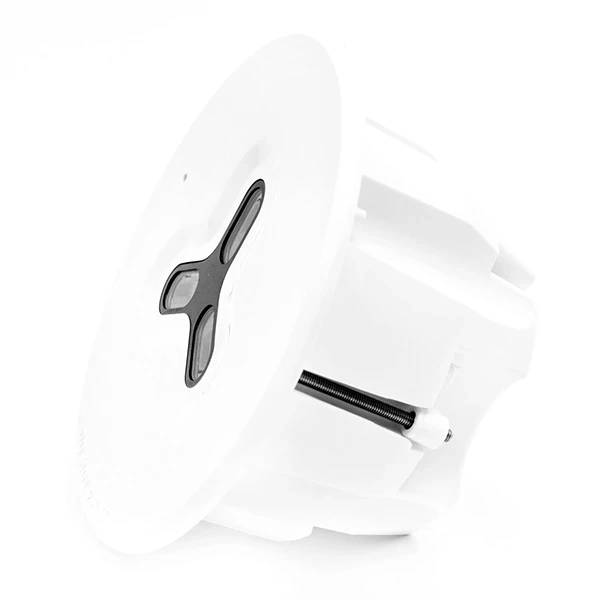

Apollo Soteria FL5100-600APO Dimension Optical Detector

Name: Apollo Soteria FL5100-600APO Dimension Optical Detector
Brand: Apollo
Price: 202.92 GBP
Availability: InStock

Code: FDS410/110

£202.92

INC VAT

Code: FDS410/110

Model FL5100-600APO
Flush-mounted Soteria Dimension Optical Detector design
10 year manufacturer warranty

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo Soteria FL5100-600APO Dimension Optical Detector is designed to provide discreet, high-performance smoke detection in modern buildings.

Unlike traditional chamber-based detectors, the Apollo Soteria Dimension Optical features a flush-mounted design with no visible chamber, making it suitable for applications where aesthetics are important.

Despite its minimal appearance, the detector delivers reliable optical smoke detection using advanced sensing technology, helping to maintain dependable system performance.

It utilises Apollo’s digital CoreProtocol communications and is compatible with Discovery and XP95 systems, offering flexibility for new installations and system upgrades.

An integrated, switchable short-circuit isolator is included as standard to help maintain loop integrity in the event of a wiring fault.

Model FL5100-600APO
Flush-mounted Soteria Dimension Optical Detector design
10 year manufacturer warranty
Low profile, chamber-free construction
Digital CoreProtocol communication
Compatible with Discovery and XP95 systems
Integrated switchable short-circuit isolator
8-way DIL switch addressing
Drift compensation
FasTest for quicker testing
Tri-colour LED status indicator
Polycarbonate moulding for colour stability and strength
Tested to exceed EN 54-7 requirements
Locking mechanism with grub screw

Specification	Details
Detection principle	Photo-electric light scattering
Sensor configuration	Chamberless detector with two photo-diodes. Micro-controller provides sensor timings, digital signal processing and alarm decision
Sampling frequency	Once per second
Terminal functions (L1 and L2 polarity sensitive)	–L1 in – Loop in negative–L1 out – Loop out negative+L2 – Loop in and out positive+R – Remote indicator positive connection, internal connection to positive–R – Remote indicator negative connection, 4.7 mA maximum
Supply voltage (Vmin–Vmax)	17 – 35 Vdc
Digital communication protocol	XP95, Discovery Protocol and CoreProtocol compatible
Modulation voltage	5 – 13 V peak to peak
Quiescent current	1 mA
Power-up surge current	1 mA
Maximum power-up time	15 s
Alarm current, LED illuminated	4.5 mA
Maximum loop current through isolator	2 A
Clean-air analogue value	23 +4/-0
Alarm level analogue value	55
Status indicator	Alarm – Continuous RedFault – Flashing YellowIsolated – Continuous YellowPoll – Flashing Green
Operating temperature	–20°C to 55°C
Humidity	0% to 95% RH, no condensation or icing
Effect of atmospheric pressure	None
Effect of wind speed	None
Vibration, impact and shock	EN 54-7
IP rating	IP55 rating not EN 54 approved
Standards and approvals	EN 54-7, EN 54-17, CPR, LPCB, VdS, BOSEC, FG, SBSC
Dimensions – Detector	140 mm diameter x 38.2 mm depth
Dimensions – Detector with backbox	140 mm diameter x 71 mm depth
Weight – Detector	148 g
Weight – Detector with backbox	273 g
Materials – Housing	White flame-retardant polycarbonate
Materials – Terminals	Nickel plated stainless steel
