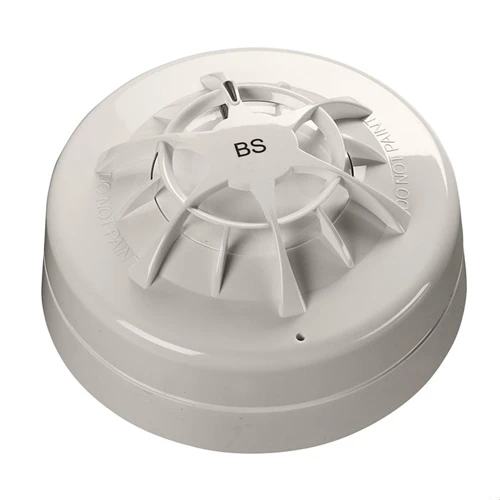

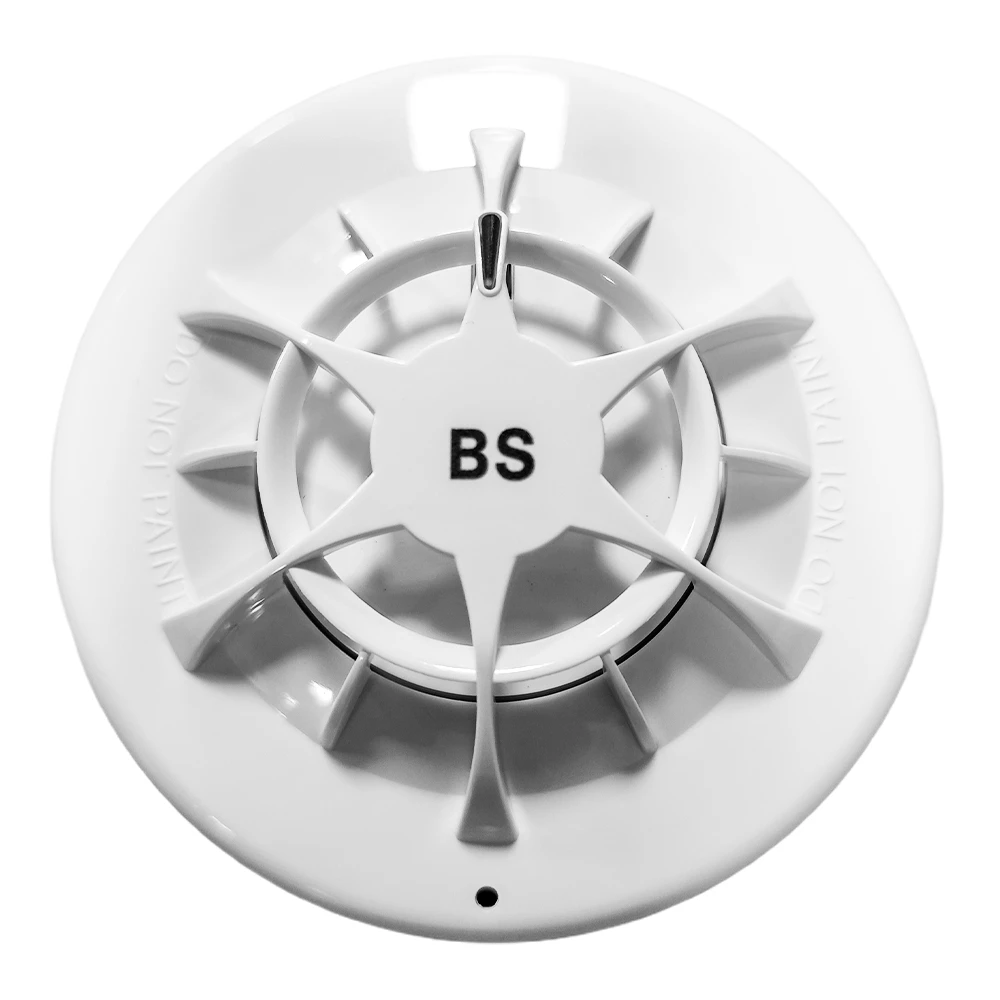

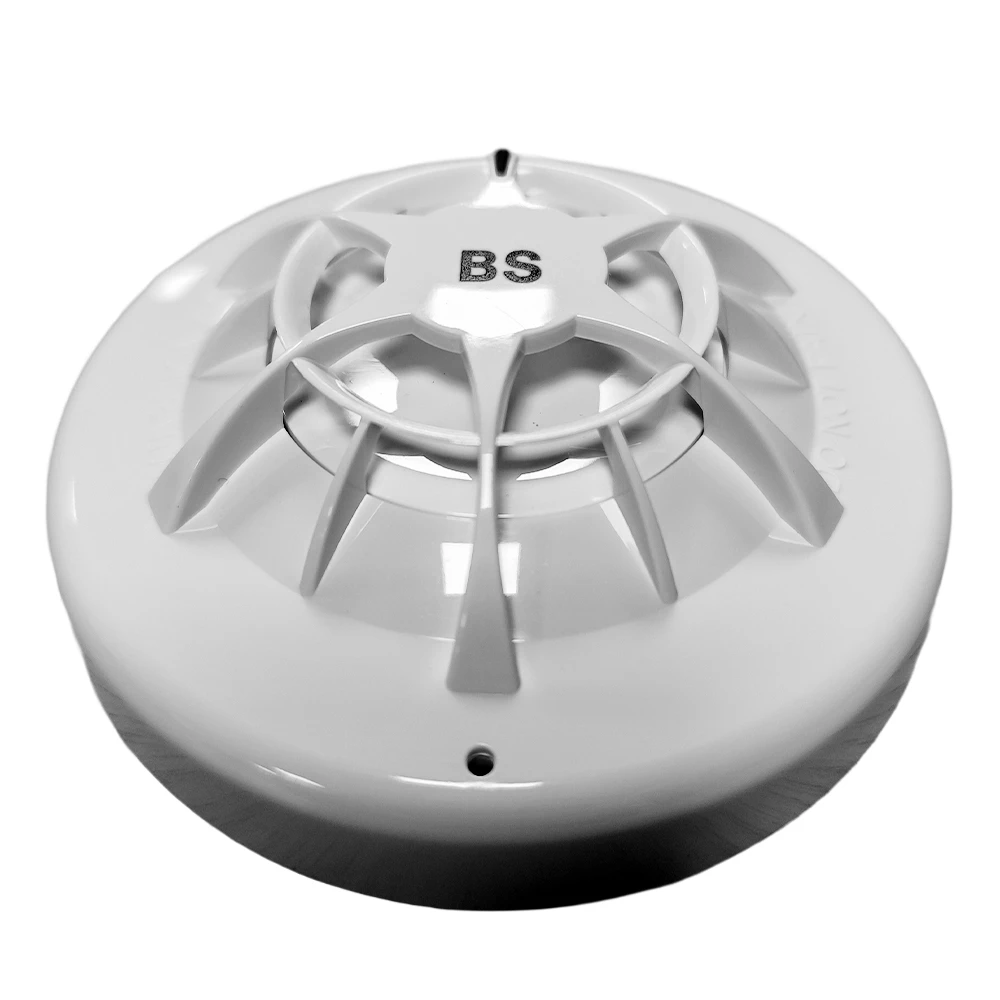

Apollo ORB-HT-41016-MAR Orbis Marine BS Heat Detector with Flashing LED

Name: Apollo ORB-HT-41016-MAR Orbis Marine BS Heat Detector with Flashing LED
Brand: Apollo
Price: 20.112 GBP
Availability: InStock

Code: FDS201/689

£20.11

INC VAT

Code: FDS201/689

In stock
Typically dispatched in 2-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo ORB-HT-41016-MAR Orbis Marine BS Heat Detector with flashing LED is designed for reliable fire detection in marine and high-humidity environments.

It uses a single thermistor to continuously monitor the surrounding air temperature, making it suitable for applications where smoke detectors may be unreliable due to dust, fumes or airborne contaminants.

The BS heat classification provides a fixed temperature alarm response, offering dependable detection in environments with stable but elevated ambient temperatures.

The integrated flashing LED provides clear visual status indication during installation, testing and routine maintenance.

As part of the wider Apollo Orbis Marine range, the detector is fully compatible with Apollo conventional marine fire alarm systems and accessories.

Part code: ORB-HT-41016-MAR
BS heat classification with fixed temperature response
Flashing LED for clear visual status indication
Approved for use in marine and high-humidity environments
Suitable for applications where smoke detectors are unsuitable
Ideal for dirty or smoky environments under normal conditions
Single thermistor temperature sensing
Transient rejection to minimise false alarms
Compatible with Orbis TimeSaver base for faster installation
Modern, low-profile design

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	BS
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	CRS, LR, DNV.GL, CCS, BV, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44

Apollo ORB-HT-41016-MAR Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	BS
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	CRS, LR, DNV.GL, CCS, BV, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44

Downloads & Resources

Related Products

Shop by Brand

We have every brand you work with so you can get everything you need in one place.

Need a Fire Alarm Zone Plan?

Provide us with a few simple details, and our in-house engineers can produce your zone plan chart.

Products From Fire Detection Shop

If you’re looking for high quality fire detection, security of fire safety equipment, we are your one-stop-shop for everything you need to get your job done.

Fire Detection Shop has a wide range of products, kits and accessories in stock and ready to ship - so you can place your order now with confidence.

To help you choose the right product, our technical team are on the end of the telephone to answer your questions. Alternatively, you can complete the form here and one of our specialists will call you back.

We have a team of in-house engineers trained to design, install and commission the products we sell. If you’re interested in the services we can provide you with a quotation.

Apollo ORB-HT-41016-MAR Orbis Marine BS Heat Detector with Flashing LED

£20.11

Apollo ORB-HT-41013-MAR Orbis Marine A1R Heat Detector with Flashing LED

Apollo ORB-HT-41015-MAR Orbis Marine BR Heat Detector with Flashing LED

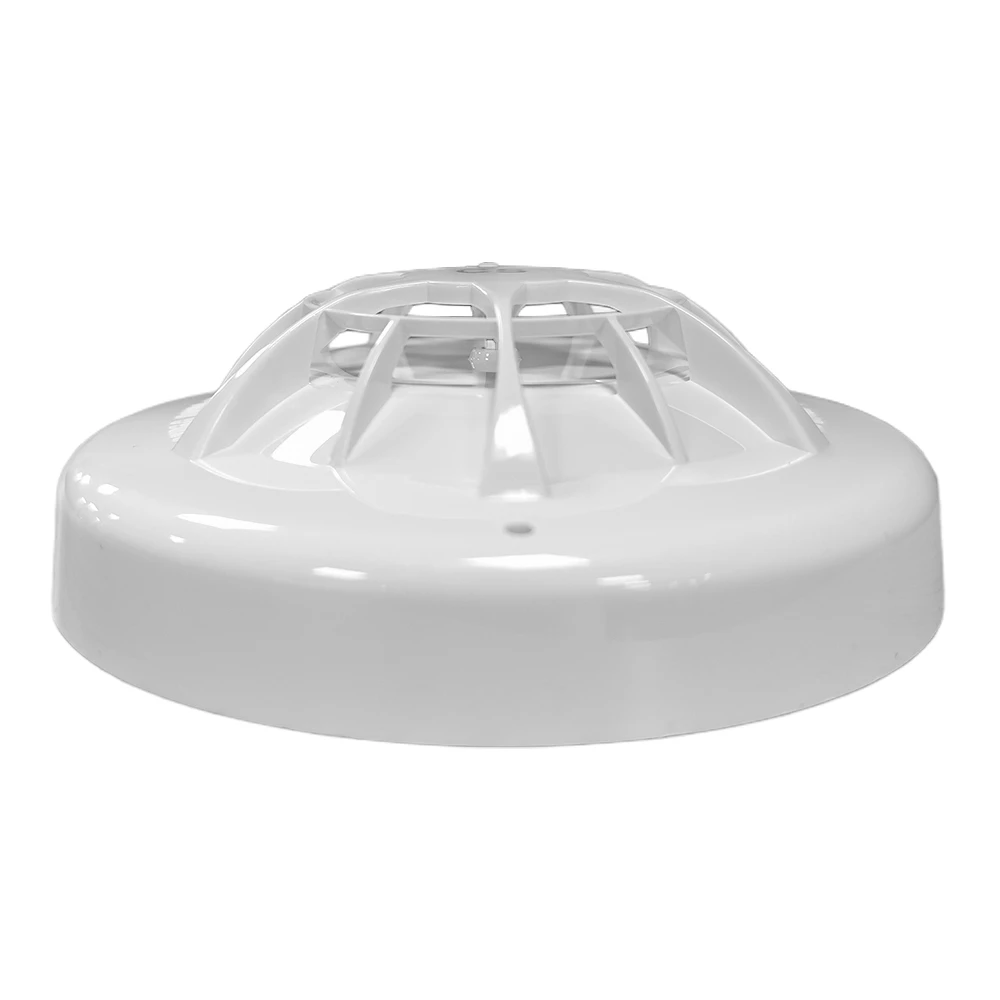

Apollo ORB-HT-41018-MAR Orbis Marine CS Heat Detector (Flashing LED) w/ Marine Timesaver Base
