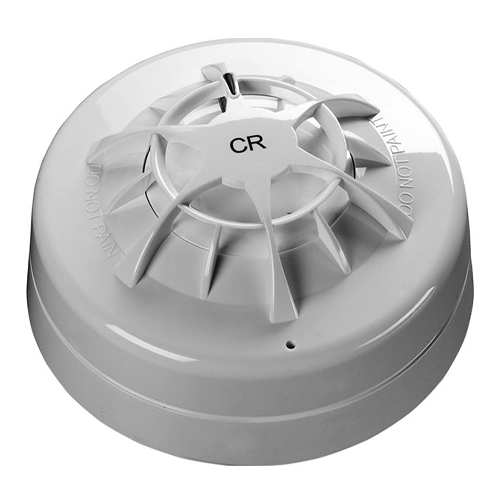

Apollo ORB-HT-11005-APO | Orbis CR Conventional Heat Detector w/ Diode Base

Name: Apollo ORB-HT-11005-APO | Orbis CR Conventional Heat Detector w/ Diode Base
Brand: Apollo
Price: 16.139999999999997 GBP
Availability: InStock

Code: FDS230/004

£16.14

INC VAT

Code: FDS230/004

Product code: ORB-HT-11005-APO
Includes diode base for monitored circuits
Rate-of-rise heat detection (CR classification)

Have a question about this? Click here

Overview Features Technical Data

The Apollo ORB-HT-11005-APO is a conventional heat detector supplied with a diode base, suitable for use in monitored and fault-tolerant zones.

It uses a single thermistor to measure temperature changes and responds to rapid rises in heat, making it ideal for detecting fast-burning fires.

The diode base enables correct fault monitoring and prevents back-feeding in interlinked conventional systems.

This detector is suitable for challenging environments where smoke detection may cause false alarms, such as kitchens, garages, and industrial areas.

It belongs to the Orbis range, known for robust performance and reliable fire detection in demanding conditions.

Product code: ORB-HT-11005-APO
Includes diode base for monitored circuits
Rate-of-rise heat detection (CR classification)
Uses thermistor sensing technology
Ideal for dusty or high-heat environments
Suitable for commercial and industrial use

Category	Specification
General
Warranty	10 year
Applications	B&Bs/guest houses, Car parks/loading bays, Dusty environments, Restaurants, Retail, Small to medium buildings
Fire Type	Fast burning, flaming fires
Performance
Heat Classification	CR (Rate-of-Rise)
Mechanical
Colour	White
Weight	70g
Housing Material	Polycarbonate
Product Length	36mm (1.42in)
Product Diameter	97mm (3.82in)
Conformance
Approvals	BOSEC, CPR, LPCB
Electrical
Maximum Power-up Time	<20 seconds
Quiescent Current	95μA
Quiescent Current Tested At	24V dc
Polarity	L1 & L2 are polarity sensitive
Minimum ‘Detector Active’ Voltage	6V
Holding Voltage	5 to 33V
Holding Voltage (min)	5V
Holding Voltage (max)	33V
Minimum Voltage to Light Alarm LED	5V
Alarm Reset Time	1 second
Alarm Load	600Ω
Environmental
Humidity Range	0% to 98% RH (no condensation or icing)
Humidity (min)	0% RH
Humidity (max)	98% RH
Operating Temperature (°C)	-40 to 70°C
Operating Temperature (°F)	-40 to 158°F
Operating Temp (min)	-40°C / -40°F
Operating Temp (max)	70°C / 158°F
Storage Temperature	-40 to 70°C
Storage Temp (min)	-40°C
Storage Temp (max)	70°C
IP Rating	IP23D

Overview

Features

Technical Data

Category	Specification
General
Warranty	10 year
Applications	B&Bs/guest houses, Car parks/loading bays, Dusty environments, Restaurants, Retail, Small to medium buildings
Fire Type	Fast burning, flaming fires
Performance
Heat Classification	CR (Rate-of-Rise)
Mechanical
Colour	White
Weight	70g
Housing Material	Polycarbonate
Product Length	36mm (1.42in)
Product Diameter	97mm (3.82in)
Conformance
Approvals	BOSEC, CPR, LPCB
Electrical
Maximum Power-up Time	<20 seconds
Quiescent Current	95μA
Quiescent Current Tested At	24V dc
Polarity	L1 & L2 are polarity sensitive
Minimum ‘Detector Active’ Voltage	6V
Holding Voltage	5 to 33V
Holding Voltage (min)	5V
Holding Voltage (max)	33V
Minimum Voltage to Light Alarm LED	5V
Alarm Reset Time	1 second
Alarm Load	600Ω
Environmental
Humidity Range	0% to 98% RH (no condensation or icing)
Humidity (min)	0% RH
Humidity (max)	98% RH
Operating Temperature (°C)	-40 to 70°C
Operating Temperature (°F)	-40 to 158°F
Operating Temp (min)	-40°C / -40°F
Operating Temp (max)	70°C / 158°F
Storage Temperature	-40 to 70°C
Storage Temp (min)	-40°C
Storage Temp (max)	70°C
IP Rating	IP23D
