Ajax Superior MegaHub Hybrid Control Panel

The Ajax Superior MegaHub Hybrid Control Panel is a Grade 3 hybrid security hub designed for large and complex Ajax installations that require both wired and wireless devices. It combines Fibra wired technology with Superior Jeweller, TurboWings and VoRF wireless communication, allowing a single system to support up to 999 Ajax devices when used with compatible 999-ready devices.

The MegaHub provides extensive capacity for larger sites, supporting up to 1,000 users, 100 security groups, 500 rooms, 10 range extenders and 100 automation scenarios. Video integration is also supported, with capacity for up to 36 Ajax NVRs, up to 224 Ajax cameras through Ajax NVRs and up to 492 standalone Ajax cameras.

For reliable external communication, the control panel supports Ethernet, Wi-Fi and two micro SIM cards with 2G and 4G LTE connectivity. Multiple internet connections can operate simultaneously, with automatic switching between communication channels to help maintain system connectivity.

Wired devices connect using Ajax Fibra technology, providing communication distances of up to 2,000 metres when the specified cable is used. Superior Jeweller wireless communication also provides a range of up to 2,000 metres in open space, while TurboWings and VoRF support communication ranges of up to 1,700 metres.

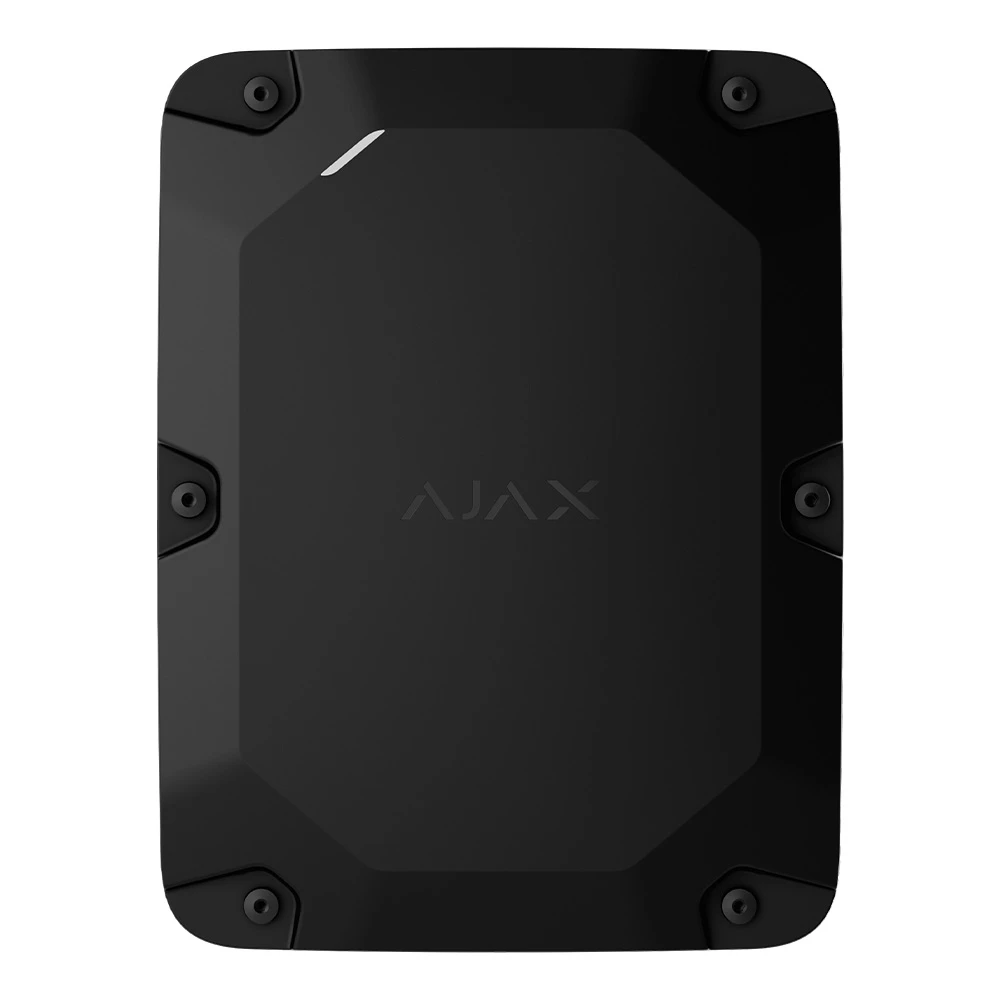

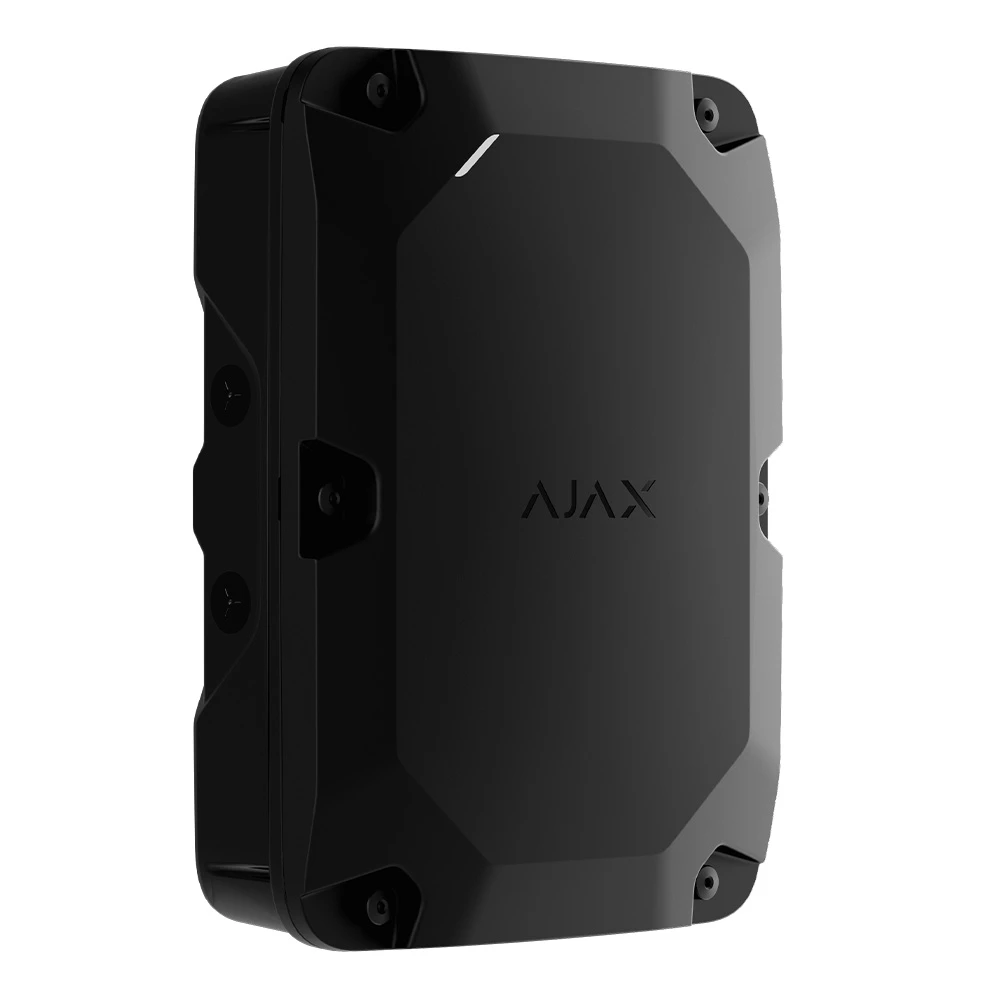

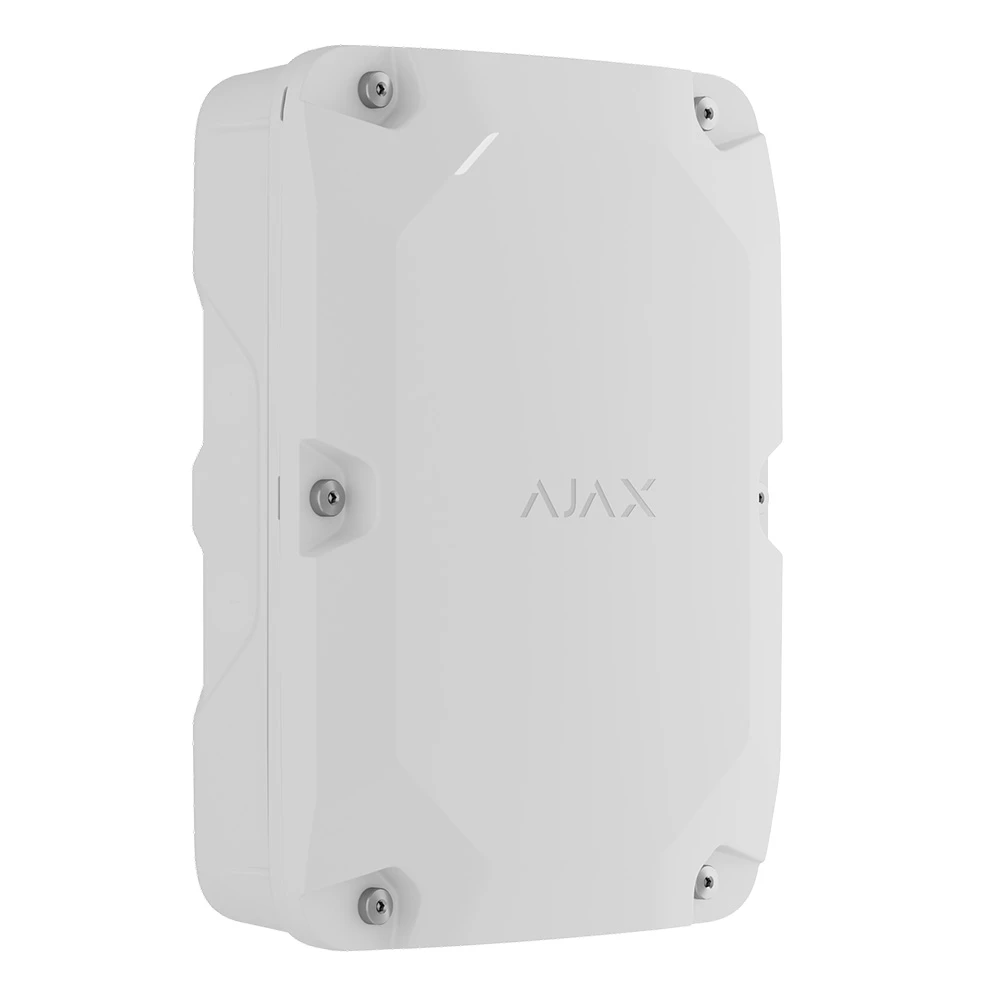

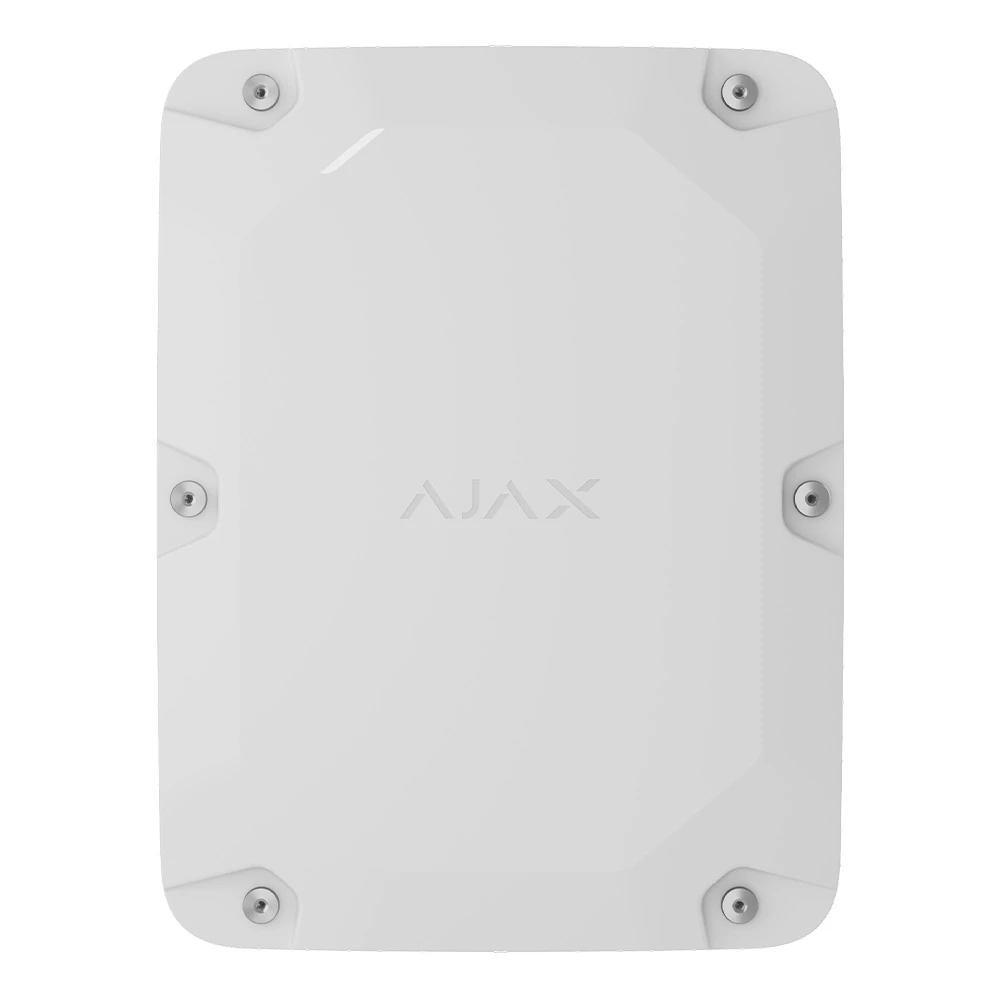

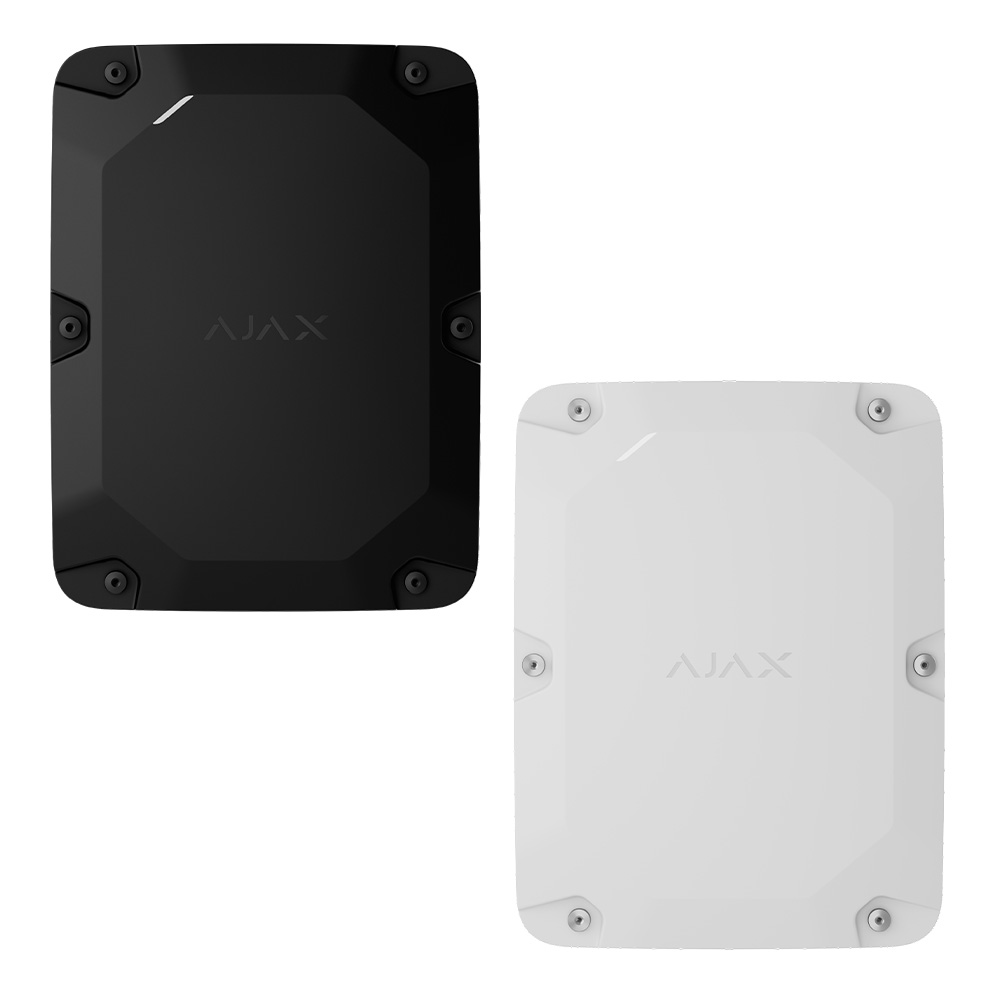

Additional features include photo verification with compatible MotionCam detectors, SMD-compatible intelligent system functions, sabotage resistance, automatic connected-device scanning and remote configuration through Ajax software. The cased MegaHub is supplied in an Ajax Case E (395) enclosure with built-in tamper protection and LED indication.

• Ajax Superior MegaHub

• EN 50131 Grade 3 compliant hybrid control panel

• Supports up to 999 wired and wireless Ajax devices

• Fibra, Superior Jeweller, TurboWings and VoRF communication

• Up to 2,000m Fibra and Superior Jeweller communication range

• Ethernet, Wi-Fi and dual micro SIM 2G/4G LTE connectivity

• Supports up to 1,000 users and 100 security groups

• Up to 100 automation scenarios and 500 rooms

• Photo verification with compatible Ajax MotionCam detectors

• Up to 60 hours autonomous operation with suitable backup battery
