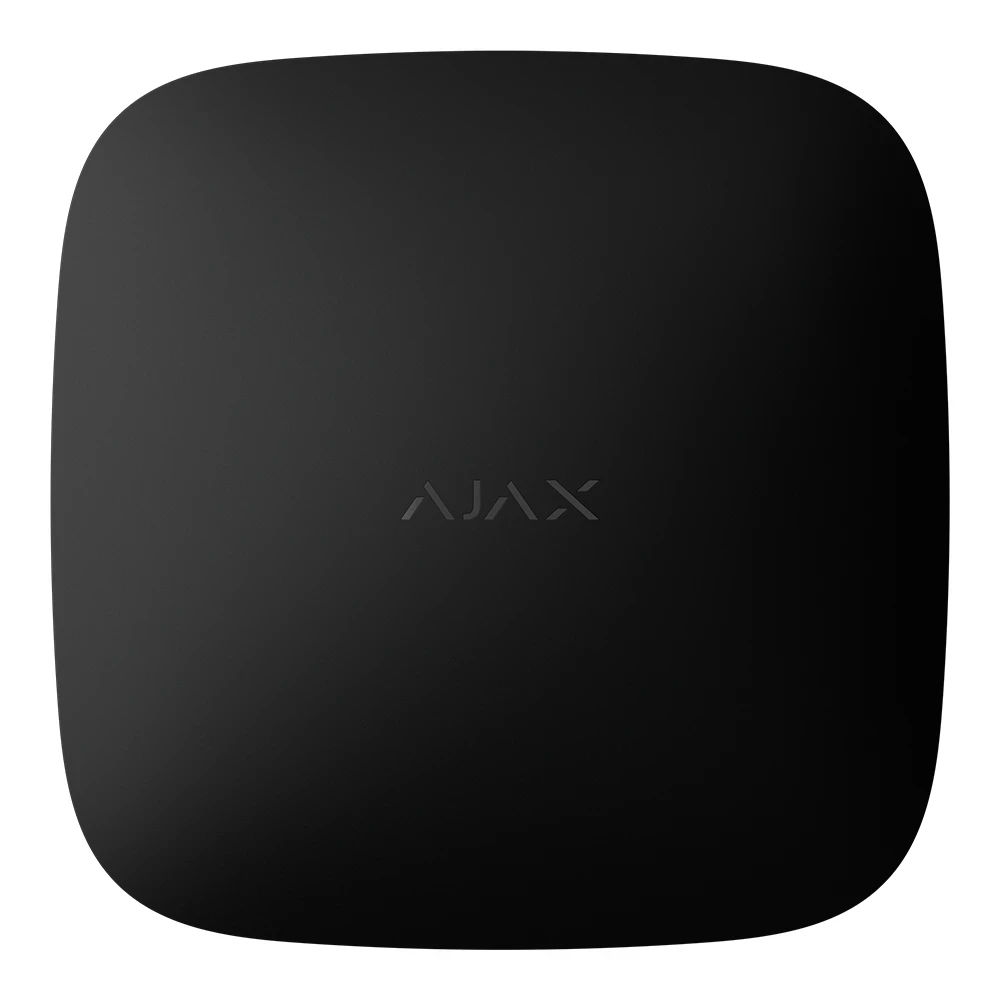

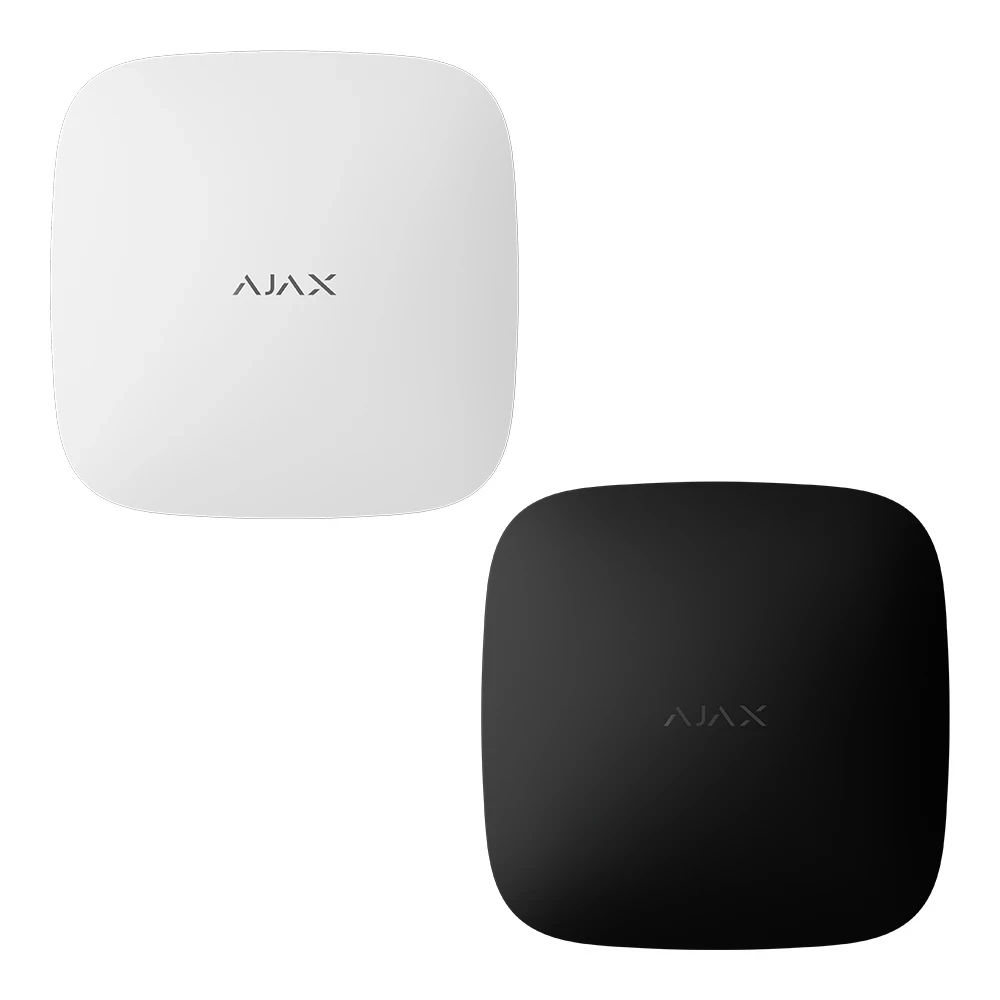

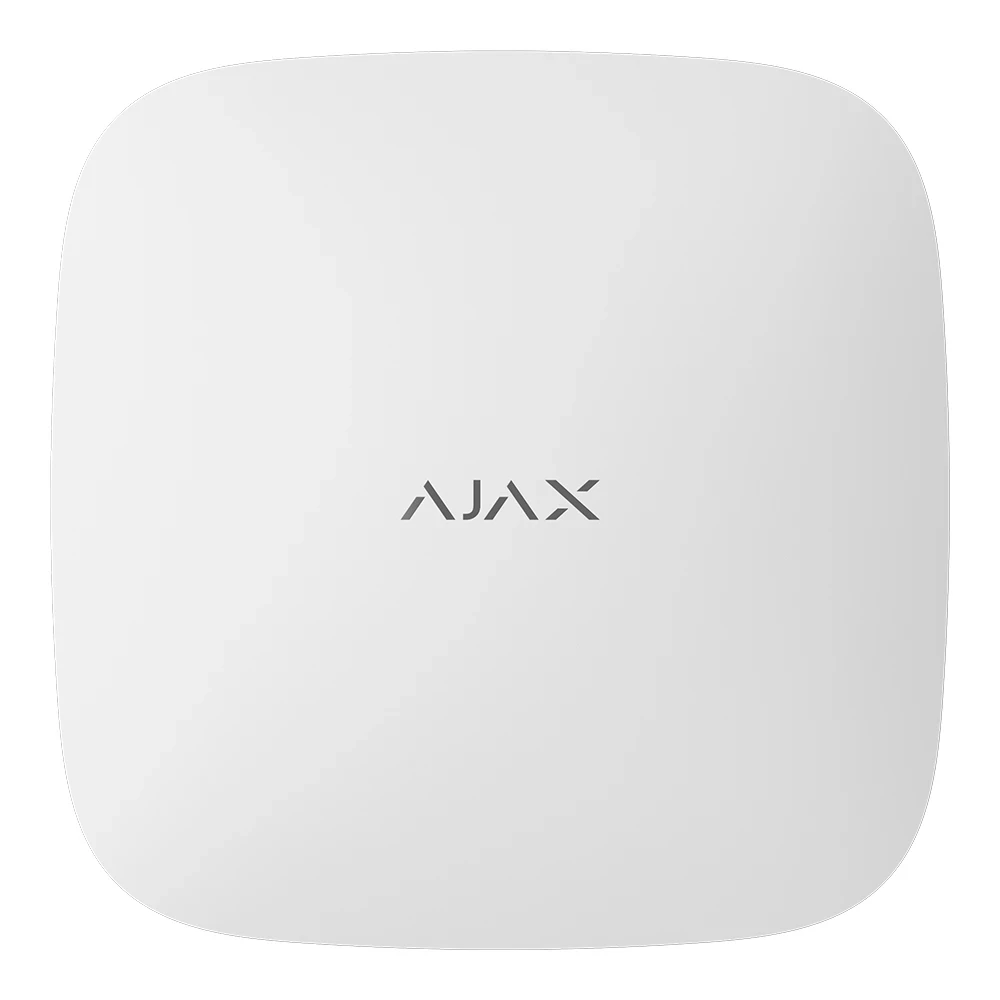

Ajax Hub 2 Plus Jeweller Control Panel

The Ajax Hub 2 Plus Jeweller is a wireless security control panel for systems that need photo verification, multiple communication routes and capacity for a large number of devices. It supports up to 200 Ajax wireless devices, including up to five range extenders and 10 sirens. The system can be divided into 25 security groups and accessed by up to 200 users, making it suitable for larger or multi-area premises.

Four communication channels help keep the hub connected: Ethernet, Wi-Fi and two SIM cards supporting 2G, 3G or 4G LTE. The hub switches between channels automatically if a connection fails. Its built-in backup battery provides up to 15 hours of operation during a power cut.

Hub 2 Plus supports Ajax motion detectors with photo verification, including MotionCam and MotionCam Outdoor. Jeweller radio technology carries commands, events and alarms, while Wings transmits photos. This allows users and monitoring operators to check what triggered an alarm. The stated radio ranges in an open space are up to 2,000 m for Jeweller and 1,700 m for Wings.

The hub also supports up to 64 automation scenarios. These can arm or disarm security groups on a schedule or control compatible automation devices in response to alarms, security mode changes or Button commands. System control and setup are available through Ajax apps, while QR code pairing and the SmartBracket mounting panel help with installation.

• Supports up to 200 wireless devices, including five range extenders and 10 sirens

• Four communication channels: Ethernet, Wi-Fi and two SIM cards

• Supports 2G, 3G and 4G LTE cellular connections

• Photo verification with supported Ajax motion detectors

• Jeweller radio range of up to 2,000 m in an open space

• Wings photo transmission range of up to 1,700 m in an open space

• Supports up to 200 users and 25 security groups

• Up to 64 automation scenarios

• Integrates up to 100 cameras or DVRs

• Built-in backup battery provides up to 15 hours of operation
