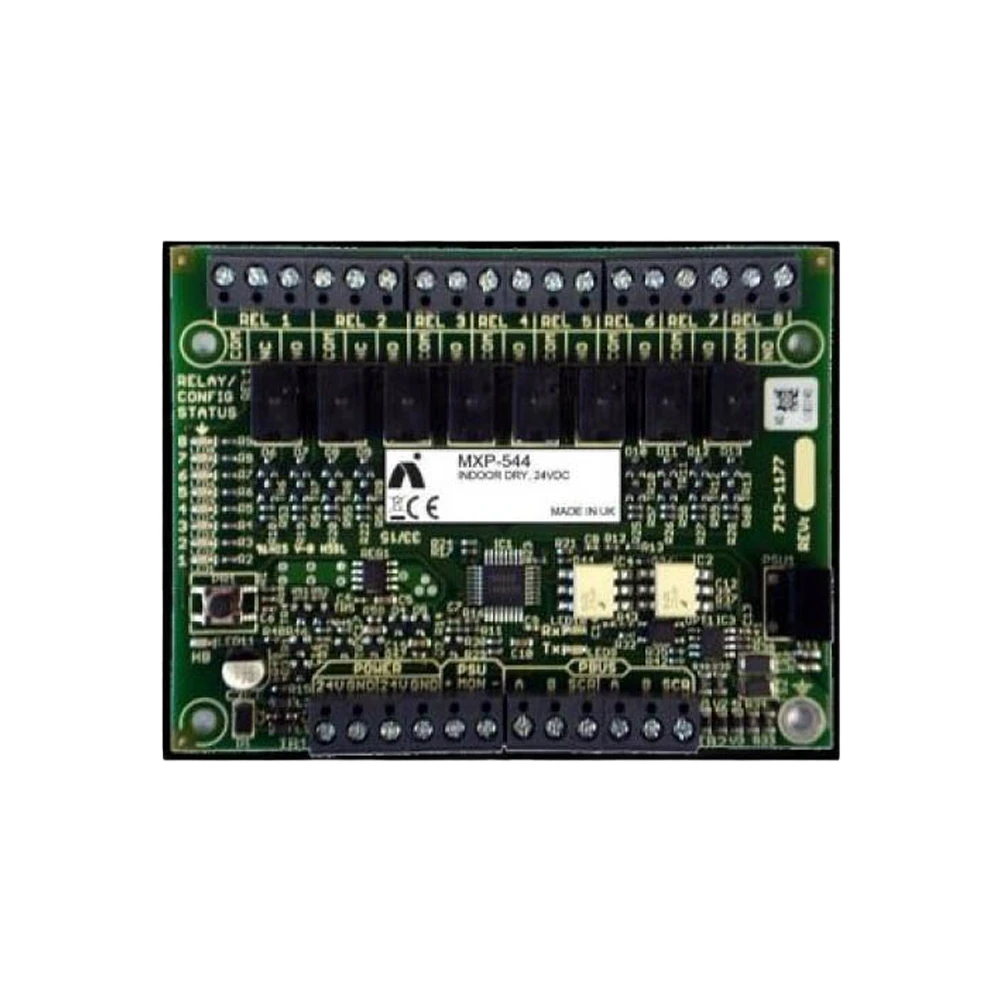

The Advanced MXP-544 Peripheral 8-Way Relay Card is an internal expansion module designed for use with the Mx-5000 series fire alarm control panels.
Each card provides eight programmable relay outputs (2 x Form C and 6 x Form A), giving installers flexibility to meet a wide range of site requirements. Up to 16 cards can be fitted to a single panel, delivering an additional 128 SELV relay outputs in total.
Configuration is managed via a secure positive action sequence using the on-board push button and LED indicators. This enables safe setup and inspection while adding enhanced reporting features not previously available on peripheral modules.
The MXP-544 operates independently of protocol, making it a versatile choice for complex installations.
Powered from CIE on local PSU
Provides 8 configurable relay outputs
Up to 16 cards can be connected to the peripheral bus = 128 relays
Specification | Details |
---|---|
Power supply | 24 VDC |
Quiescent current | 30 mA (Vs = 24 V) |
Max current (O/Ps on) | 80 mA (Vs = 24 V, 8 Relays on) |
Operating temperature | -5°C to 40°C |
Relative humidity | 95% non-condensing (maximum) |
Dimensions (H x W x D) | 15 x 105 x 80 mm |
Weight | 80 g |
PSU monitor input | V F |
PSU monitor EOL | 10 K |
PBus EOL | 150 R, 150 Ω |
Relay outputs | SELV, 2 x Form C, 6 x Form A |
Contact rating | 1 A at 30 VDC (resistive load) |
Contact resistance | 100 mΩ |
Contact endurance | 100,000 operations min (under rated load) |
The Advanced MXP-544 Peripheral 8-Way Relay Card is an internal expansion module designed for use with the Mx-5000 series fire alarm control panels.
Each card provides eight programmable relay outputs (2 x Form C and 6 x Form A), giving installers flexibility to meet a wide range of site requirements. Up to 16 cards can be fitted to a single panel, delivering an additional 128 SELV relay outputs in total.
Configuration is managed via a secure positive action sequence using the on-board push button and LED indicators. This enables safe setup and inspection while adding enhanced reporting features not previously available on peripheral modules.
The MXP-544 operates independently of protocol, making it a versatile choice for complex installations.
Powered from CIE on local PSU
Provides 8 configurable relay outputs
Up to 16 cards can be connected to the peripheral bus = 128 relays
Specification | Details |
---|---|
Power supply | 24 VDC |
Quiescent current | 30 mA (Vs = 24 V) |
Max current (O/Ps on) | 80 mA (Vs = 24 V, 8 Relays on) |
Operating temperature | -5°C to 40°C |
Relative humidity | 95% non-condensing (maximum) |
Dimensions (H x W x D) | 15 x 105 x 80 mm |
Weight | 80 g |
PSU monitor input | V F |
PSU monitor EOL | 10 K |
PBus EOL | 150 R, 150 Ω |
Relay outputs | SELV, 2 x Form C, 6 x Form A |
Contact rating | 1 A at 30 VDC (resistive load) |
Contact resistance | 100 mΩ |
Contact endurance | 100,000 operations min (under rated load) |
