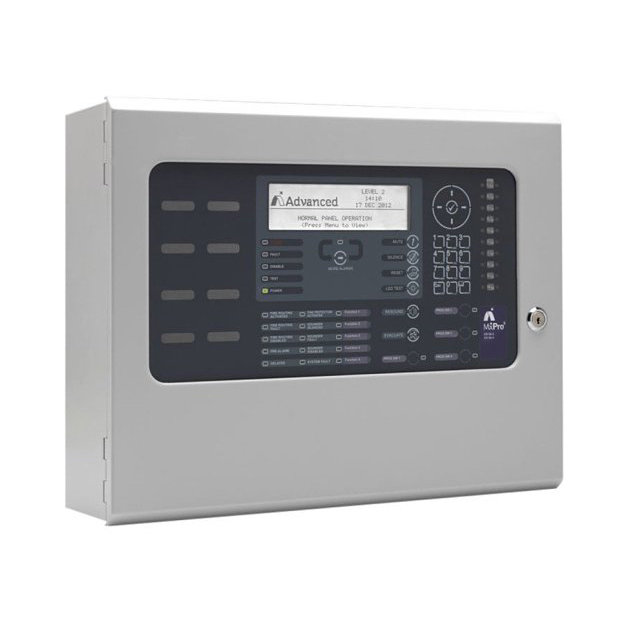

Advanced MX-5201L 1-2 Loop Fire Panel c/w 1 Loop card

Name: Advanced MX-5201L 1-2 Loop Fire Panel c/w 1 Loop card
Brand: Advanced-electronics
Availability: InStock

Code: FDS330/838

Call to place order

INC VAT

Code: FDS330/838

Supports 1–2 detection loops (1 loop card included)
Compatible with Apollo & Hochiki protocols
Expandable to 200 zones per panel or 2000 zones networked

Have a question about this? Click here

Overview Features Technical Data

The Advanced MX-5201L is a versatile addressable fire alarm control panel from the MxPro 5 range, supplied with one loop card. It’s built for sites requiring between 1 and 2 detection loops, offering scalable protection for small to medium installations.

Protocol-compatible with Apollo and Hochiki, its design incorporates dual flash-based microprocessors, a high-contrast graphical LCD display, and tactile keypad for intuitive operation and commissioning.

Built with robust internal diagnostics (including trace diagnostics, loop detection, onboard scope), the MX-5201L delivers flexibility, easier fault-finding, and high customisation for cause & effect programming.

Supports 1–2 detection loops (1 loop card included)
Compatible with Apollo & Hochiki protocols
Expandable to 200 zones per panel or 2000 zones networked
Two on-board sounder circuits & programmable relays
20 zonal LEDs plus 25 system LEDs for clear status indication
Graphical LCD & tactile keypad for easy programming/operation
Advanced diagnostics: loop detection, trace tools, onboard scope
Cause & effect programming for flexible system design
Networkable with other MxPro 5 and MxPro 4 panels
EN54-2, EN54-4 & EN54-13 approved for compliance

Specification	Detail
Zones (single panel)	Up to 200 fire zones
Networked zones	Up to 2000 zones across panels
Detection loops	1 to 2 loops (1 loop card included)
Devices per loop	Up to 127 devices (protocol dependent)
Loop current	500 mA per loop
On-board sounder circuits	2 × 1A programmable
On-board relays	2 × 1A, 30V AC/DC programmable (expandable with relay card)
Auxiliary supply	24V 500 mA
Mains supply	200–240V AC, 50–60Hz, +10% / –15%, max 1.4A
Charger current	2A, temperature compensated
User interfaces	Graphical LCD, tactile keypad, USB & RS-232 ports, 4 programmable buttons
LED indicators	20 Zonal LEDs, 25 system/information LEDs
Enclosure size	Approx. H 470 × W 450 × D 115 mm (large enclosure)
Operating temperature	–5°C to +40°C
Relative humidity	Up to 95% non-condensing
Weight	Varies with enclosure & battery capacity (supports up to ~45Ah)
Standards/Approvals	EN54-2, EN54-4, EN54-13

Overview

Features

Technical Data

Specification	Detail
Zones (single panel)	Up to 200 fire zones
Networked zones	Up to 2000 zones across panels
Detection loops	1 to 2 loops (1 loop card included)
Devices per loop	Up to 127 devices (protocol dependent)
Loop current	500 mA per loop
On-board sounder circuits	2 × 1A programmable
On-board relays	2 × 1A, 30V AC/DC programmable (expandable with relay card)
Auxiliary supply	24V 500 mA
Mains supply	200–240V AC, 50–60Hz, +10% / –15%, max 1.4A
Charger current	2A, temperature compensated
User interfaces	Graphical LCD, tactile keypad, USB & RS-232 ports, 4 programmable buttons
LED indicators	20 Zonal LEDs, 25 system/information LEDs
Enclosure size	Approx. H 470 × W 450 × D 115 mm (large enclosure)
Operating temperature	–5°C to +40°C
Relative humidity	Up to 95% non-condensing
Weight	Varies with enclosure & battery capacity (supports up to ~45Ah)
Standards/Approvals	EN54-2, EN54-4, EN54-13
