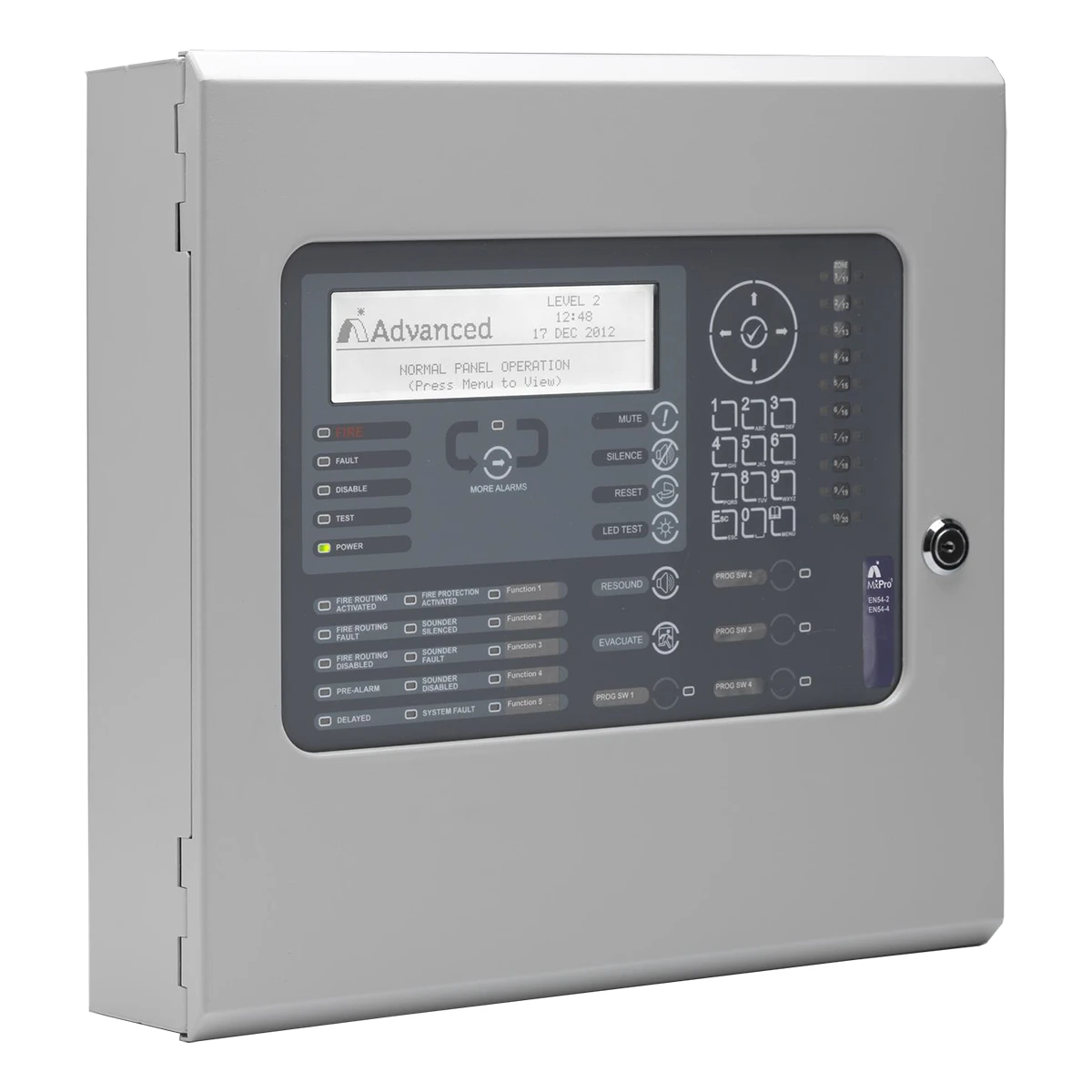

Advanced Electronics Mx-5101 | 1 Loop Addressable Panel - Apollo/Hochiki

Name: Advanced Electronics Mx-5101 | 1 Loop Addressable Panel - Apollo/Hochiki
Brand: Advanced-electronics
SKU: FDS600/005
Price: 1020 GBP
Availability: InStock

Code: FDS600/005

£1,020.00

INC VAT

Code: FDS600/005

Enclosure

Manufacturer Code: MX-5101

1-loop addressable control panel supporting Apollo and Hochiki protocols.
20 programmable zone LEDs and 25 system LEDs with slide-in labels.
High-resolution graphical LCD with multilingual support and custom logo capability.

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Advanced Electronics Mx-5101 is a high-performance, scalable fire alarm control panel designed for both simplicity and power.

Beyond its sleek graphical LCD and smart 'Select & Click' interface, it offers an expandable network capacity that grows from 200 to 2,000 zones, true peer-to-peer networking (Ad-NeT), and a robust on-board power supply.

Commissioning is a breeze thanks to onboard loop detection, auto-learn, and a handy scope tool. With USB and RS-232 connectivity, multilingual display, customizable branding, and full compliance with EN54-2, -4, and -13, the Mx-5101 combines intuitive operation with enterprise-grade capability, making it perfect for small sites to complex multi-area systems.

1-loop addressable control panel supporting Apollo and Hochiki protocols.
20 programmable zone LEDs and 25 system LEDs with slide-in labels.
High-resolution graphical LCD with multilingual support and custom logo capability.
Dual flash-based microprocessor with on-board real-time clock for reliable operation.
USB and RS-232 ports for direct PC or modem connection.
Installer-friendly tools including Auto-Learn, Loop Detection, and Scope facility.
Fully programmable via on-board keypad or PC configuration software.
Ad-NeT peer-to-peer networking to share up to 2,000 zones with full cross-panel control.
Robust removable chassis with plug-in connectors for quick installation and cable termination.
Certified to BS EN54 Parts 2, 4, and 13.

Base Technology	Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets
Display	White backlit 240 x 64 graphical LCD
LED Indicators	22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault & System)
Controls	Alphanumeric keypad permitting navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x programmable push buttons
Protocol	Apollo (Soteria / XP95 / Discovery) & Hochiki ESP
Number of Fire Zones	200 per individual panel, 2000 when networked
Number of Loops	1
Devices per Loop	Protocol dependent
Loop Current	500mA
On-Board Sounder Circuits	2 x 1 Amp programmable
On-Board Relays	2 x 1 Amp 30V AC/DC programmable (10mA, 5V min) - expandable to 4 using MXP-507
Auxiliary Supply	1 x 24V 500mA
Programmable Input	1 x monitored programmable input on-board
Programmable Key Switch Inputs	1 x volt-free input (standard enclosure), 8 x inputs (M, L, D enclosures)
Total Available Output Current	3A maximum available for loop current + sounder outputs + auxiliary supply
Mains Supply	200 - 240V 50-60 Hz AC (+10%, -15% tolerance) 1.0A Max
Charger Current	1A temperature compensated
Ethernet Port	10-Base-T, 100-Base-T - providing AdvancedLive connectivity (UK&I only)
Serial Port	1 x on-board RS232 connection for PC, modem, IP, or portable printer
USB Interface	1 x USB B type connection for PC communication
Programming	On-board keypad or PC running Windows tools
Event Log	5000 event & diagnostic + 500 fire
Networking	Optional plug-in network card (MXP-503 - standard, or MXP-509 - fault-tolerant)
Printer (Optional)	On-board (M, L, D enclosures only)
Enclosure / Colour	Steel IP30 / RAL7035
Metalwork Options	Flushing bezel, battery box, utility enclosure, termination enclosure, and rack mount
