WindowMaster WSC104 AOV Control Unit 4A

Continue shopping

Go to Basket

WindowMaster WSC104 AOV Control Unit 4A

Name: WindowMaster WSC104 AOV Control Unit 4A
Brand: Window-master
Price: 548.1 GBP
Availability: InStock

Code: FDS410/157

£548.10

INC VAT

Code: FDS410/157

In stock

WSC 104 S AR
Smoke control AOV panel
4A output current for actuator control

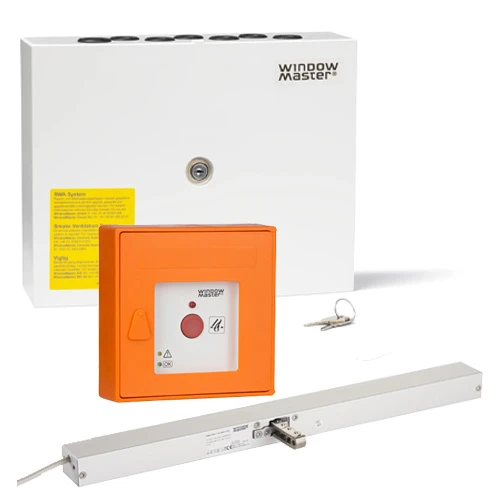

Add these extras to your kit

Please Select

WindowMaster WSK503 AOV Manual Call Point(£125.45 inc vat)

AOV SSR-D Optical Smoke Sensor w/ Diode Base(£49.09 inc vat)

WindowMaster WMU Chain Actuator | WMU 836(£429.88 inc vat)

WindowMaster WAB 836B Motor Bracket for WMU836 Actuator(£15.58 inc vat)

WindowMaster WAB 836E Chain Bracket(£7.75 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

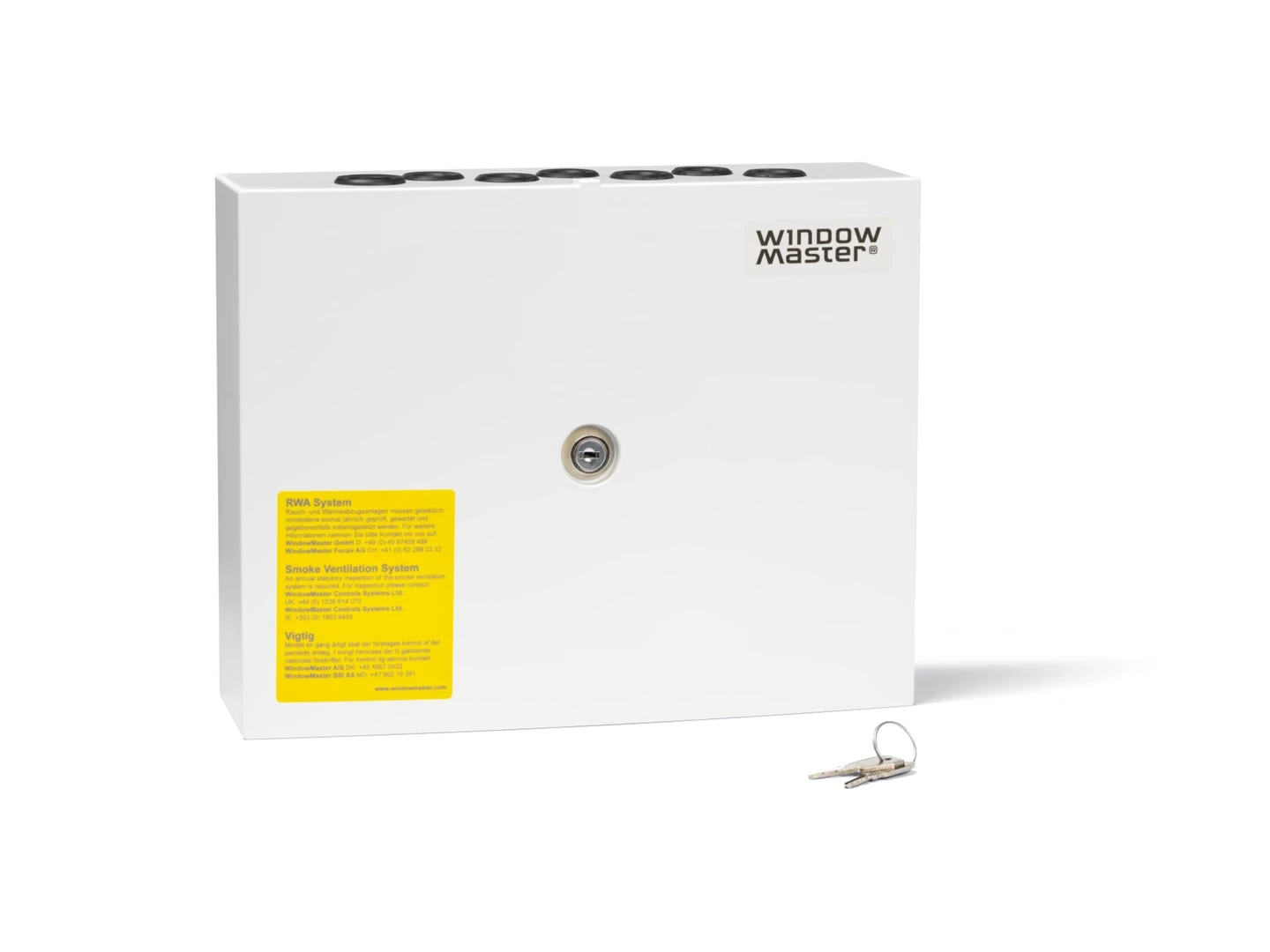

The WindowMaster WSC104 AOV Control Unit 4A is a compact smoke control panel designed for smoke extraction and daily comfort ventilation. It provides 4A output for the control of ±24V DC actuators, MotorLink® actuators or pyrotechnic gas generators, making it suitable for small and medium-sized buildings as well as specific building sections such as staircases and restaurants.

The unit supports 1 smoke zone and 1 comfort ventilation group, allowing smoke ventilation and natural ventilation functions to be managed from a single panel. Configuration is handled through 8 DIP switches, helping installers set key operating functions without additional programming tools.

The WSC104 uses bus technology to reduce cabling requirements across break glass units, smoke detectors and keypads. It includes inputs for comfort ventilation keypads, break glass units and smoke or differential heat detectors, with outputs for alarm and fault signalling to a fire alarm system.

Operating from a 230V AC, 50Hz supply, the panel provides a nominal 4A output current and includes built-in back-up batteries for emergency power support. The enclosure is white, surface mounted and measures 224 x 283 x 85mm, with a total weight of 4kg including batteries.

The panel is certified to EN 12101-10 and is supplied with back-up batteries, an end of line module and 10kΩ resistors for installation.

WSC 104 S AR
Smoke control AOV panel
4A output current for actuator control
1 smoke zone / comfort ventilation group
Suitable for ±24V DC actuators and MotorLink® actuators
8 DIP switches for easy configuration
Primary voltage: 230V AC, 50Hz
Size: 224 x 283 x 85mm (H x W x D)
Weight including batteries: 4kg
EN 12101-10 certified smoke ventilation control panel

Specification	Details
Manufacturer	WindowMaster
Model	WSC 104 S AR 0101
Product Type	Smoke Control Panel / AOV Control Unit
Output Current	4A
Smoke Zones	1 Smoke Zone
Ventilation Groups	1 Daily Ventilation Group
Motor Lines	1 Motor Line
Compatible Actuator Types	±24V Standard Actuators, MotorLink® Actuators
Pyrotechnic Gas Generators	Max. 12 Pyrotechnic Gas Generators
Primary Voltage	230V AC, 50Hz
Primary Voltage Range	85–264V AC, 47–63Hz
Actuator Secondary Voltage	24V DC ±15%
Open Circuit Voltage at 230V AC	24V DC @ 20°C
Ripple at Max Load	150mVp-p
AUX Output	24V DC, 500mA
Power Consumption	Min. 0.3W, Typ. 0.2W
Power Consumption at Max Load	1100W
Leakage Current	Max. 1.4mA @ 240V AC
Inrush Current on Primary Side	50A / 230V AC
Supply Group	Max. 7 x WSC 104 per 10A supply group
Circuit Breaker	“C” Characteristic
Operating Conditions	-5°C to +40°C, Max. 95% Relative Humidity, Non-Condensing
Emergency Power Supply	>72 Hours in Accordance with EN 12101-10
Switch-On Duration	ED 40% / 4 Min. per 10 Min.
Actuator Cable Connection	Flexible Max. 6mm² / Solid Max. 10mm²
Other Component Cable Connection	Min. 0.2mm² / Max. 1.5mm²
Break Glass Unit Compatibility	WSK 5 Series
Max. Break Glass Units	Up to 5
Smoke / Heat Detector Input	1 Input for Smoke Detector or Differential Heat Detector
Comfort Keypad Input	1 Input
Weather Station Input	WLA 330 or WLA 331
Alarm Output	Yes
Fault Signal Output	Yes, to Fire Alarm System
Configuration	8 DIP Switches
Automatic Reset Function	Yes, Can Be Deactivated by DIP Switch
Size	224 x 283 x 85mm (H x W x D)
Weight	1.2kg Without Batteries, 4kg With Batteries
Battery Type Supplied	2 x WSA 003 Back-Up Batteries
Material	Plastic Housing for Surface Mounting
Colour	White, RAL 9016
IP Rating	IP30
Certification	EN 12101-10
Delivery Includes	CompactSmoke™ Smoke Ventilation Panel, 1 x WSA 514 End of Line Module, 7 x 10kΩ Resistors, 2 x WSA 003 Back-Up Batteries

WindowMaster WSC104 AOV Control Unit 4A Datasheet	Click here to download
WindowMaster WSC104 AOV Control Unit 4A Installation Instructions	Click here to download
