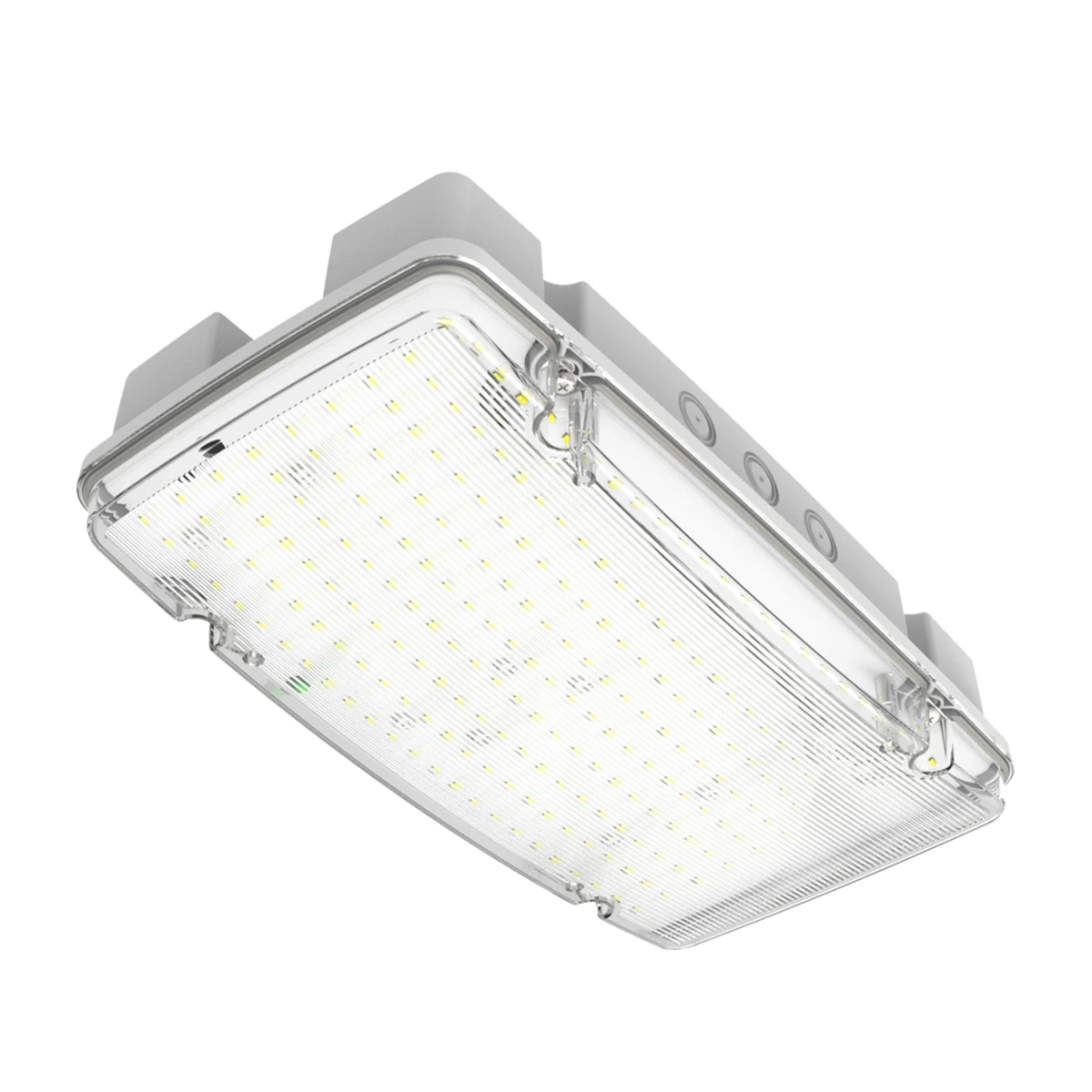

Vanguard Maxi Emergency LED Bulkhead Self Test

The Vanguard MAXI Emergency LED Bulkhead Self Test is a high-performance, high-output emergency lighting solution designed for demanding commercial and industrial environments.

Offering selectable emergency outputs of 1000 or 1500 lumens, it provides flexibility to suit both escape route and open area applications while maintaining strong, consistent illumination.

The integrated self-test functionality, with the option for manual testing, simplifies maintenance and ensures ongoing compliance with emergency lighting standards.

A high-efficiency prismatic lens delivers a wide 135° beam angle, ensuring even light distribution and improved spacing between fittings.

Built for durability, the unit features an IP66 rating for protection against dust and water, alongside IK08 impact resistance, making it suitable for both indoor and outdoor installations.

Powered by LiFePO4 battery technology, it provides up to 3 hours of emergency operation with enhanced lifespan and reliability compared to traditional batteries.

Finished in white (RAL9003) with a robust ABS body and polycarbonate diffuser, the Vanguard MAXI combines durability with clean, professional aesthetics.

• High output emergency LED bulkhead for commercial and industrial use

• Selectable 1000lm or 1500lm emergency output

• Self-test functionality with manual test option

• LiFePO4 battery providing up to 3 hours emergency duration

• 135° beam angle for wide, even light distribution

• IP66 rated for dust and water protection

• IK08 impact resistance for durability

• Energy efficient 10W operation with 150 lm/W efficacy

• 6500K cool white light for clear visibility

• ABS housing with polycarbonate diffuser

• 5-year warranty including battery cover

• UKCA and CE approved
