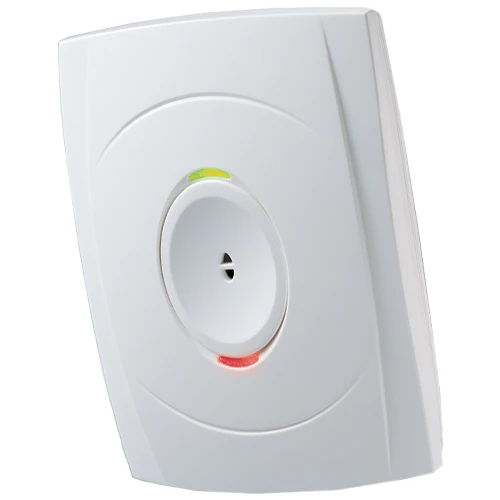

The Texecom AEC-0001 Premier Impaq Glass Break Detector delivers reliable perimeter protection with advanced false alarm immunity.
Using quad real-time frequency analysis combined with digital flex detection, it provides exceptional performance in identifying genuine glass break events.
Engineered for versatility, the Impaq Glass Break can be mounted on walls, in corners, or on ceilings to protect multiple windows with a single unit.
With selectable glass types, adjustable sensitivity, and intelligent LED indicators, it is a professional-grade solution trusted by installers.
As part of the Texecom Premier range, this detector combines user-friendly setup with advanced microprocessor technology for maximum security.
Acoustic detection of breaking glass with digital signal processing
Suitable for plate, tempered, laminated, and wired glass types
Adjustable sensitivity for optimal performance in different environments
Dual LED indicators (green/red) for setup, testing, and pre-alarm signals
Comfort LED with disable option for discreet operation
Microprocessor technology with advanced algorithms to reduce false alarms
Specification | Details |
---|---|
Manufacturer | Texecom |
Part Number | AEC-0001 |
Detector Type | Acoustic (glass break detection) |
Detection Range | Up to 9m |
Coverage Angle | 170° |
Glass Types | Plate, Tempered, Laminated, Wired |
Sensitivity | Adjustable |
Signal Processing | Digital flex detection with advanced algorithms |
LED Indicators | Green (pre-alarm/test), Red (alarm), Comfort LED |
LED Functions | LED disable option, latch input, first-to-alarm |
Setup | Engineer setup mode |
Alarm Output | Normally Closed (NC) relay |
Supply Voltage | 9 – 16 V DC |
Current Consumption | 10mA typical |
Tamper Protection | Yes |
Operating Temperature | -10°C to +55°C |
Mounting Options | Wall, corner, or ceiling |
Dimensions (H x W x D) | 95 x 68 x 28 mm (typical glass break size) |
Standards Compliance | EN 50131 Grade 2, PD6662:2017 Class II |
Colour | White |
The Texecom AEC-0001 Premier Impaq Glass Break Detector delivers reliable perimeter protection with advanced false alarm immunity.
Using quad real-time frequency analysis combined with digital flex detection, it provides exceptional performance in identifying genuine glass break events.
Engineered for versatility, the Impaq Glass Break can be mounted on walls, in corners, or on ceilings to protect multiple windows with a single unit.
With selectable glass types, adjustable sensitivity, and intelligent LED indicators, it is a professional-grade solution trusted by installers.
As part of the Texecom Premier range, this detector combines user-friendly setup with advanced microprocessor technology for maximum security.
Acoustic detection of breaking glass with digital signal processing
Suitable for plate, tempered, laminated, and wired glass types
Adjustable sensitivity for optimal performance in different environments
Dual LED indicators (green/red) for setup, testing, and pre-alarm signals
Comfort LED with disable option for discreet operation
Microprocessor technology with advanced algorithms to reduce false alarms
Specification | Details |
---|---|
Manufacturer | Texecom |
Part Number | AEC-0001 |
Detector Type | Acoustic (glass break detection) |
Detection Range | Up to 9m |
Coverage Angle | 170° |
Glass Types | Plate, Tempered, Laminated, Wired |
Sensitivity | Adjustable |
Signal Processing | Digital flex detection with advanced algorithms |
LED Indicators | Green (pre-alarm/test), Red (alarm), Comfort LED |
LED Functions | LED disable option, latch input, first-to-alarm |
Setup | Engineer setup mode |
Alarm Output | Normally Closed (NC) relay |
Supply Voltage | 9 – 16 V DC |
Current Consumption | 10mA typical |
Tamper Protection | Yes |
Operating Temperature | -10°C to +55°C |
Mounting Options | Wall, corner, or ceiling |
Dimensions (H x W x D) | 95 x 68 x 28 mm (typical glass break size) |
Standards Compliance | EN 50131 Grade 2, PD6662:2017 Class II |
Colour | White |
