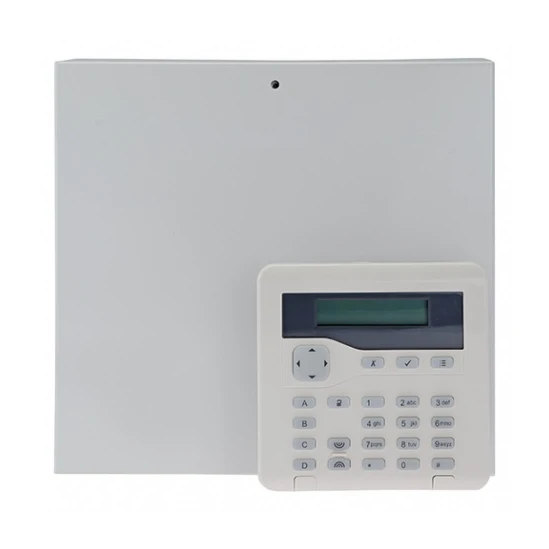

Scantronic PAN-10W-KP | 10 Zone Wired Panel with Proximity Keypad (Grade 2)

The Scantronic PAN-10W-KP (previously i-on10-KP) is a wired intruder alarm control panel designed for simple, entry-level security installations in residential and small commercial properties.

This Grade 2 compliant burglar alarm panel provides 10 on-board zones and supports up to 10 users, making it suitable for homes, offices and small business premises requiring reliable intrusion protection.

The system uses the same intuitive programming structure as the wider i-on range, with menu-driven configuration designed to simplify setup and reduce programming errors.

The panel features a performance bus that supports up to four compatible i-on keypads, allowing flexible installation and control from multiple locations. Preconfigured zone types, part sets and system options help installers commission systems quickly while maintaining reliable operation.

Designed as a bells-only wired alarm system, the PAN-10W-KP provides audible alarm signalling and straightforward system management for everyday security applications.

• Ten zones

• 10 user codes

• PAN-10W-KP

• Uses same programming menus as the i-on range

• EN50131 PD6662:2017 Grade 2

• Non expandable

• 239mm (h) x 250mm (w) x 90mm (d)

• 2.8kg - panel without battery

• Temperature range: Environmental class 2 -10C to 55C 93% RH
