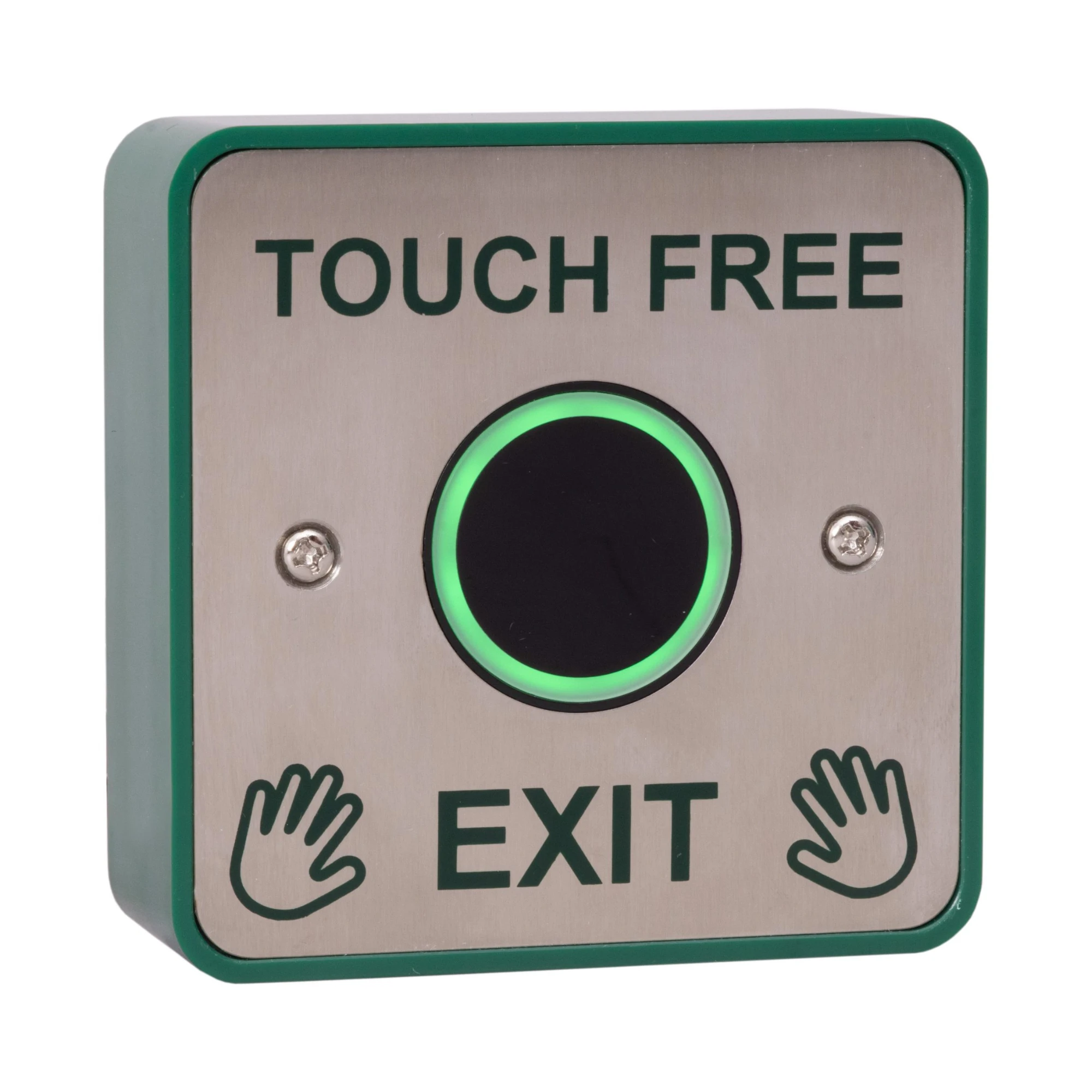

RGL EBNT/TF-1PLUS Touch Free Exit Button With Illumination Green to Red

The 35mm touch-free sensor button offers seamless integration with its flush-to-plate design and versatile mounting options. Featuring a robust high-impact plastic back box, the device provides intuitive visual feedback through dual-colour illumination: red for standby and green when switched or indicating an open door.

Its easy-clean surface and adaptable fitting mechanism (supporting both surface and flush mounting with a 60mm fixing hole spacing) makes it exceptionally suitable for general and sensitive environments. The sensor's design ensures hygienic operation, with straightforward installation onto standard back boxes and a sleek, modern aesthetic.

• Contacts: Double pole NONC contacts

• Contact Load: 0.5A @ AC 125V / 2A @ DC30V

• Voltage: 12/24 VDC @ 45mA operating

• +/- 10% voltage tolerance

• Legend: Touch Free Exit

• Button rated IP65 ingress protection

• Relay timer: 5 seconds

• Operating distance: 0-150mm

• -30° to +80° operating temperature

• Humidity: 20%-80%

• Designed to prevent interference with other infra red devices

• Requires a permanent power supply – volt free contacts
