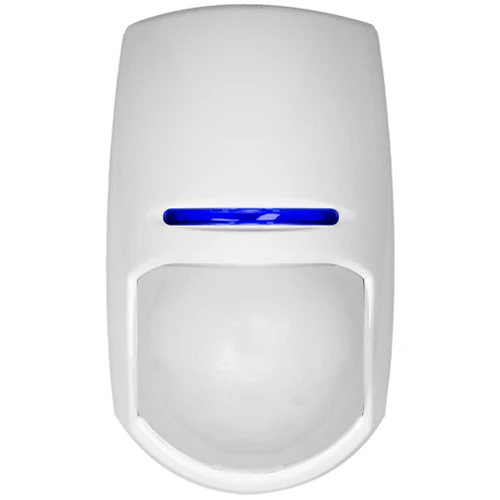

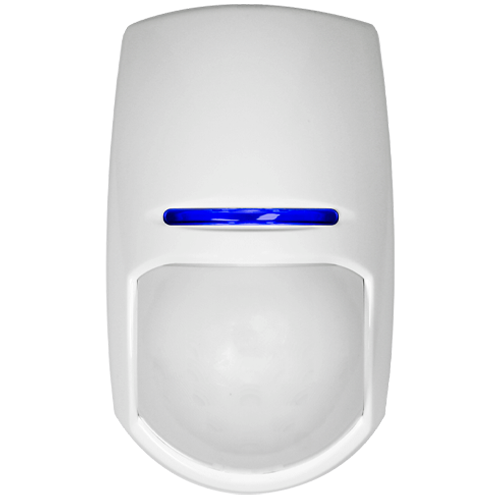

Pyronix KX10DP-WE Passive Infrared Detector (PET IMMUNE)

Offering a detection range of up to 10 metres, the KX10DP-WE uses Pyronix's Pet Immune technology to distinguish between human movement and pets weighing up to 25kg.

This allows properties with cats and dogs to remain protected without compromising detection performance.

Advanced Blue Wave Technology, automatic sensitivity adjustment and digital temperature compensation work together to maintain reliable operation in changing environmental conditions while helping minimise unwanted alarms.

The detector features sealed optics to help protect the PIR sensor from insects, dust and internal reflections, supporting long-term performance and reducing maintenance requirements.

Front and rear tamper protection provides additional security by triggering an alarm if the detector is interfered with or removed from its mounting position.

Designed with installers in mind, the KX10DP-WE supports selectable end of line resistor values to suit a wide range of control panels and incorporates Signal Strength Indicators (SSI) to help determine the optimum installation position.

One-Push-To-Learn commissioning enables the detector to be enrolled onto compatible Enforcer systems in seconds, helping reduce installation time.

• Compatible with the Pyronix Enforcer wireless security system

• Passive infrared (PIR) motion detection with a 10m detection range

• Pet immune technology for animals up to 25kg

• Blue Wave Technology helps reduce false alarms

• Automatic sensitivity adjustment for changing environments

• Digital temperature compensation for consistent detection performance

• Sealed optics protect against insects, dust and internal reflections

• Front and rear tamper protection for increased security

• Signal Strength Indicators (SSI) simplify positioning during installation

• One-Push-To-Learn enrolment for faster commissioning
