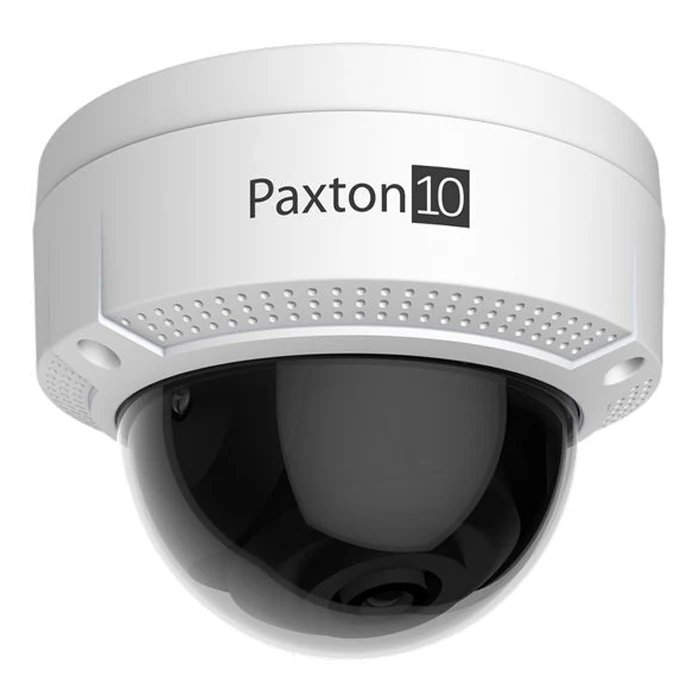

Paxton10 010-102 CORE Series Mini Dome Camera

The Paxton10 010-102 CORE Series Mini Dome Camera is a compact 4MP CCTV camera designed specifically for use with the Paxton10 system. It provides high-resolution recording up to 2560 x 1440 and is suitable for wall or ceiling mounting, making it a flexible option for a wide range of security camera installations.

Designed for simple and secure integration, the camera can process video directly on the device without requiring an NVR or additional recording hardware. Video can be stored on the pre-installed 64GB high-performance SD card or sent directly to a network location, helping reduce system complexity while retaining flexible recording options.

The CORE Series Mini Dome Camera is built for reliable performance in demanding environments. Its IP67 rating provides strong protection against dust and water ingress, while the IK10 rating supports resistance against impact and vandalism. The all-metal body adds further durability, making it suitable for commercial, industrial and external-facing applications where a robust camera is required.

The 4MP ultra-low light sensor, 0.003 lux sensitivity, 30m IR range and 120dB Wide Dynamic Range help produce usable footage across varied lighting conditions. Intelligent motion detection supports more effective event capture, while the fixed 2.8mm lens provides a wide field of view for monitoring entrances, corridors, reception areas and general site coverage.

The camera can be powered by 12V DC or PoE 802.3af, giving installers flexibility during system design and installation. It is supplied with Paxton’s 5-year warranty.

• 010-102

• 4MP CORE Series mini dome camera for Paxton10 systems

• High-resolution recording up to 2560 x 1440

• Pre-installed 64GB high-performance SD card

• No NVR required for standard Paxton10 operation

• 30m IR range for low-light monitoring

• 120dB Wide Dynamic Range

• IP67 and IK10 rated for durable installation

• 12V DC or PoE 802.3af power options

• Wall or ceiling mountable compact dome design
