Paxton 242-166 | Switch2 Control Unit c/w 1A PSU

Name: Paxton 242-166 | Switch2 Control Unit c/w 1A PSU
Brand: Paxton
Price: 106.62 GBP
Availability: InStock

Code: FDS900/108

£106.62

INC VAT

Code: FDS900/108

Paxton 242-166
Compatible with proximity, cardlock or touchlock readers
Multiple door control with same token

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

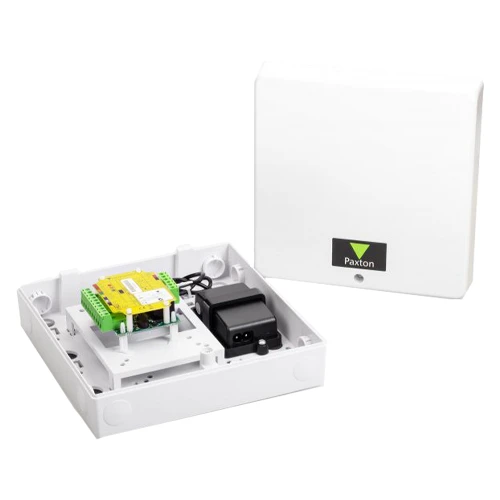

The Paxton 242-166 Switch2 Control Unit is a single-door access controller designed for secure and efficient access management. Housed in a durable plastic enclosure, it includes an integral 1A power supply for straightforward installation.

This unit stores user access permissions locally and is mounted inside the building, enhancing security by ensuring that sensitive data remains protected. Ideal for high-security applications, the Switch2 system offers a reliable solution for controlled entry points.

Paxton 242-166
Compatible with proximity, cardlock or touchlock readers
Multiple door control with same token
Two reader in/out function
Separate control unit - high security
Up to 50 codes or 10,000 card users
Control over access by token colour
Flexible voltage free relay output

Category	Specification
System specifications
Maximum total users/tokens	100 card packs (up to 5,000 tokens/users)
PIN length	4
Number of codes	50
Code length	4–8
Handsfree compatible	Yes – requires interface
Door open time	1 sec – 60 secs
Silent operation	No
Data retention (power loss)	>10 years
Electrical
Operating voltage	10V – 14V DC
Current consumption	80mA
Relay switchable voltage	24V DC
Relay switchable current	4A
Alarm output current	1A
Hardware
Reader ports per ACU	1
Readers/Keypads per ACU	2 – check current draw on individual readers
Total ACU reader port output current	500mA
3rd party reader support	No
Features
Input for exit button	Yes
Input for door contact	Yes
Alarm/bell output	Yes
Can be used with fail OPEN release	Yes
Can be used with fail CLOSED release	Yes
Environment
Operating temperature	-20°C to +55°C / -4°F to +131°F
Moisture resistance	No – if used externally, must be protected in a weatherproof housing
Vandal resistance	Low

Paxton 242-166 Datasheet	Click here to download
Paxton 242-166 Manual	Click here to download

Overview

Features

Technical Data

Category	Specification
System specifications
Maximum total users/tokens	100 card packs (up to 5,000 tokens/users)
PIN length	4
Number of codes	50
Code length	4–8
Handsfree compatible	Yes – requires interface
Door open time	1 sec – 60 secs
Silent operation	No
Data retention (power loss)	>10 years
Electrical
Operating voltage	10V – 14V DC
Current consumption	80mA
Relay switchable voltage	24V DC
Relay switchable current	4A
Alarm output current	1A
Hardware
Reader ports per ACU	1
Readers/Keypads per ACU	2 – check current draw on individual readers
Total ACU reader port output current	500mA
3rd party reader support	No
Features
Input for exit button	Yes
Input for door contact	Yes
Alarm/bell output	Yes
Can be used with fail OPEN release	Yes
Can be used with fail CLOSED release	Yes
Environment
Operating temperature	-20°C to +55°C / -4°F to +131°F
Moisture resistance	No – if used externally, must be protected in a weatherproof housing
Vandal resistance	Low
