Paxton 10 Slimline Reader (010-296)

Name: Paxton 10 Slimline Reader (010-296)
Brand: Paxton
Price: 151.14 GBP
Availability: InStock

Code: FDS880/444

£151.14

INC VAT

Code: FDS880/444

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

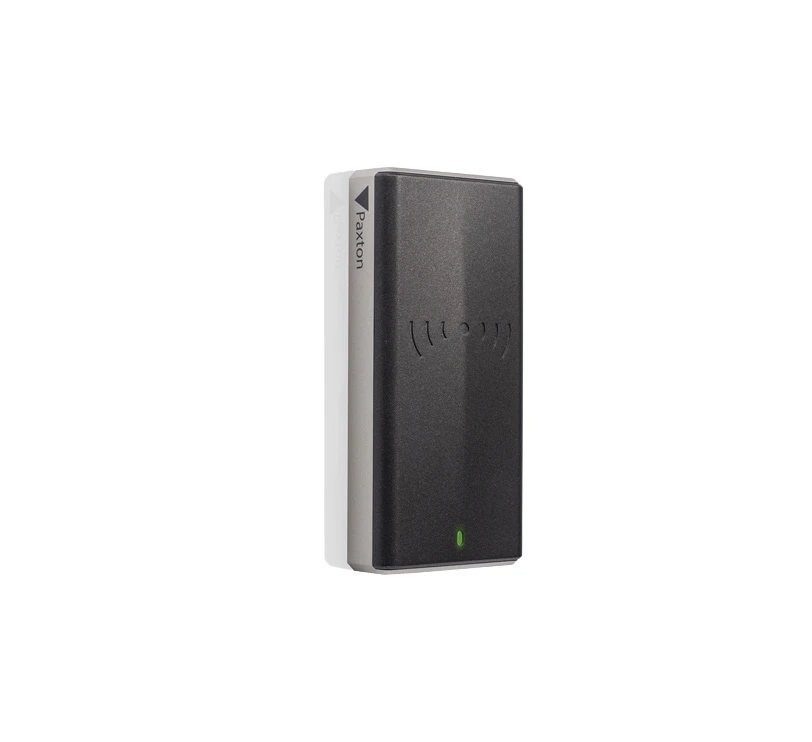

The Paxton10 Slimline Reader (010-296) is a sleek, low-profile access control reader designed for use with Paxton10 systems.

Its compact design makes it ideal for locations where space is limited or a discreet appearance is required, without compromising on performance or security. The reader is designed for quick installation and offers reliable compatibility with Paxton10 access control software.

With a robust, modern finish, it’s suitable for both internal and external applications, making it a versatile choice for commercial, educational, and healthcare environments.

Slim, discreet reader design
Compatible with Paxton10 systems
Suitable for internal & external use
Quick and easy installation
Ideal for space-limited locations

Category	Specification	Details
Token Compatibility	Paxton Frequency	125kHz
	Paxton Data read	Serial number (CSN) & User memory
	Paxton Cloning resistance	Medium
	EM4100/02 Frequency	125kHz
	EM4100/02 Data read	Serial number (CSN)
	EM4100/02 Cloning resistance	Low
	MIFARE® Frequency	13.56MHz
	MIFARE® Data read	UID
	MIFARE® Cloning resistance	Low
Electrical	Power consumption	1W (Max)
	Operating voltage	12V
	Current draw (Quiescent)	40mA
	Current draw (Max)	100mA
Communication	RFID frequency	125kHz & 13.56MHz
	Data connection	RS485 / Paxton10 protocol
	Bluetooth®	2.4GHz
	Token mode	Up to 2cm
	Touch to Enter	Up to 1.5m
	Long Range	Up to 10m
Hardware	Cable type	22AWG, 4 core twisted pair
	Cable length	5m
	Maximum cable extension length (Controller > Reader)	100m
	Sound	Piezo Buzzer
	Colour	Black
	Housing material	PC+ABS
	Warranty	Paxton 5 year

Paxton 10 Slimline Reader Datasheet

Click here to download

Overview

Features

Technical Data

Category	Specification	Details
Token Compatibility	Paxton Frequency	125kHz
	Paxton Data read	Serial number (CSN) & User memory
	Paxton Cloning resistance	Medium
	EM4100/02 Frequency	125kHz
	EM4100/02 Data read	Serial number (CSN)
	EM4100/02 Cloning resistance	Low
	MIFARE® Frequency	13.56MHz
	MIFARE® Data read	UID
	MIFARE® Cloning resistance	Low
Electrical	Power consumption	1W (Max)
	Operating voltage	12V
	Current draw (Quiescent)	40mA
	Current draw (Max)	100mA
Communication	RFID frequency	125kHz & 13.56MHz
	Data connection	RS485 / Paxton10 protocol
	Bluetooth®	2.4GHz
	Token mode	Up to 2cm
	Touch to Enter	Up to 1.5m
	Long Range	Up to 10m
Hardware	Cable type	22AWG, 4 core twisted pair
	Cable length	5m
	Maximum cable extension length (Controller > Reader)	100m
	Sound	Piezo Buzzer
	Colour	Black
	Housing material	PC+ABS
	Warranty	Paxton 5 year
